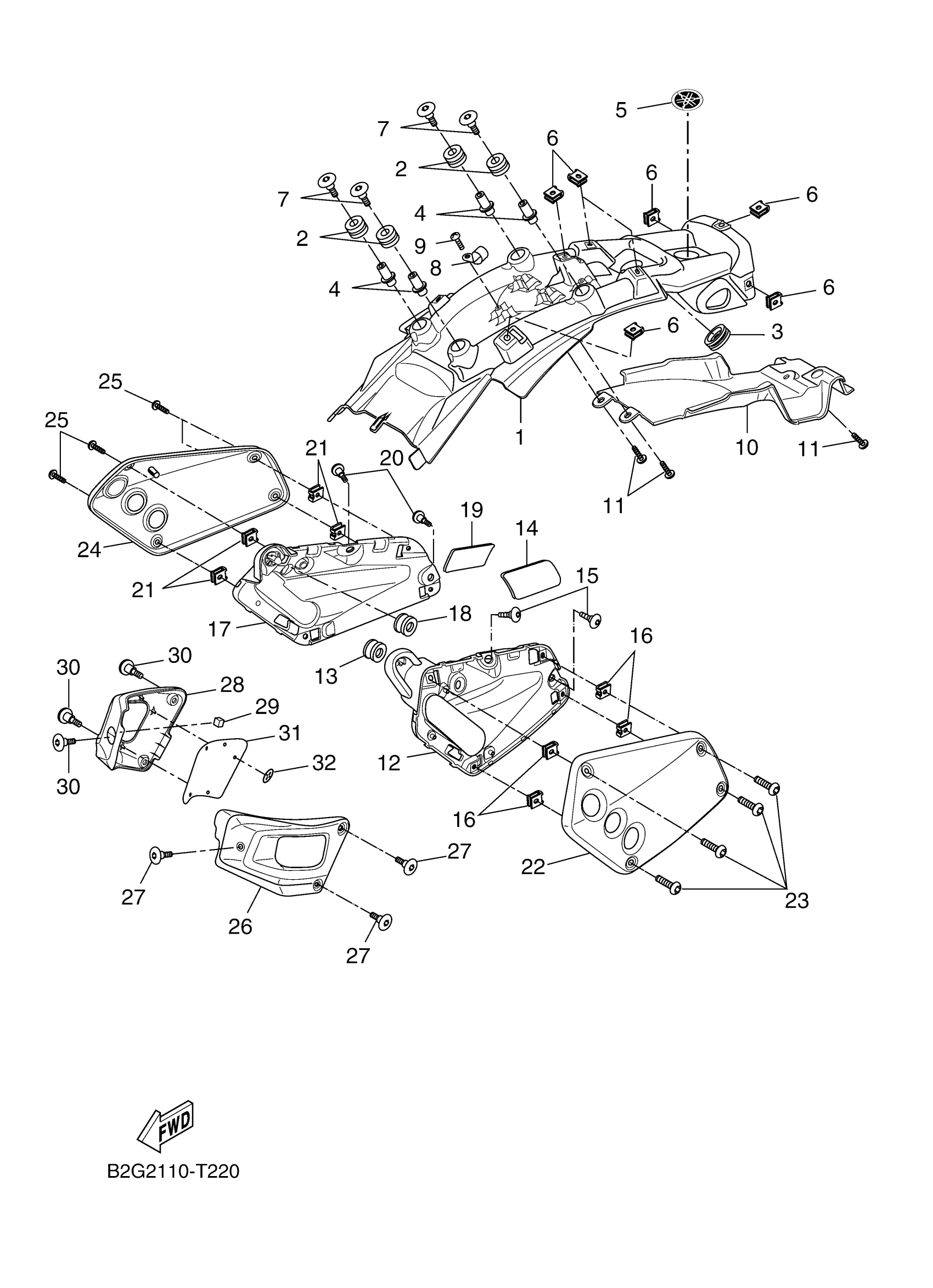

Yamaha XSR700MW (XSR700) B2GK 2021 SIDE COVER Diagram

#

Description
Price

1

GUARD MUD

B34-F1629-00-00

$215.99

2

GROMMET

90480-16X01-00

Unavailable

3

GROMMET (3AB)

90480-25482-00

$3.18

4

NUT

B2G-21791-00-00

$25.99

5

TUNING FORK MARK

4KN-2836B-10-00

$18.49

6

NUT SPRING

90183-05X04-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06095-00

$8.49

8

CLAMP(74L)

90461-11099-00

$1.54

9

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

10

COVER, REAR FENDER 1

B34-F163A-00-00

$75.99

11

SCREW, TAPPING

90167-05079-00

$4.14

12

COVER SIDE 1

B34-F1711-00-00

$122.99

13

GROMMET(4DN)

90480-01558-00

$4.19

14

DAMPER, PLATE

90520-03017-00

$1.59

15

BOLT

90111-05011-00

$5.60

16

NUT SPRING

90183-05X04-00

Unavailable

17

COVER SIDE 2

B34-F1721-00-00

Unavailable

18

GROMMET(4DN)

90480-01558-00

$4.19

19

DAMPER, PLATE

90520-03017-00

$1.59

20

BOLT

90111-05011-00

$5.60

21

NUT SPRING

90183-05X04-00

Unavailable

22

COVER, SIDE 3

B2G-21731-00-P2

Unavailable

23

BOLT(3JP)

90111-05012-00

Unavailable

24

COVER, SIDE 4

B2G-21741-00-P2

Unavailable

25

BOLT(3JP)

90111-05012-00

Unavailable

26

SCOOP AIR 1

B34-F137W-00-00

Unavailable

27

BOLT

90111-05011-00

$5.60

28

SCOOP AIR 2

B34-F137X-00-00

Unavailable

29

DAMPER 1

4HM-21638-00-00

Unavailable

30

BOLT

90111-05011-00

$5.60

31

GRILL AIR INTAKE 2

B34-F837R-00-00

Unavailable

32

NUT, SPRING (6E5)

90183-05M02-00

Unavailable
