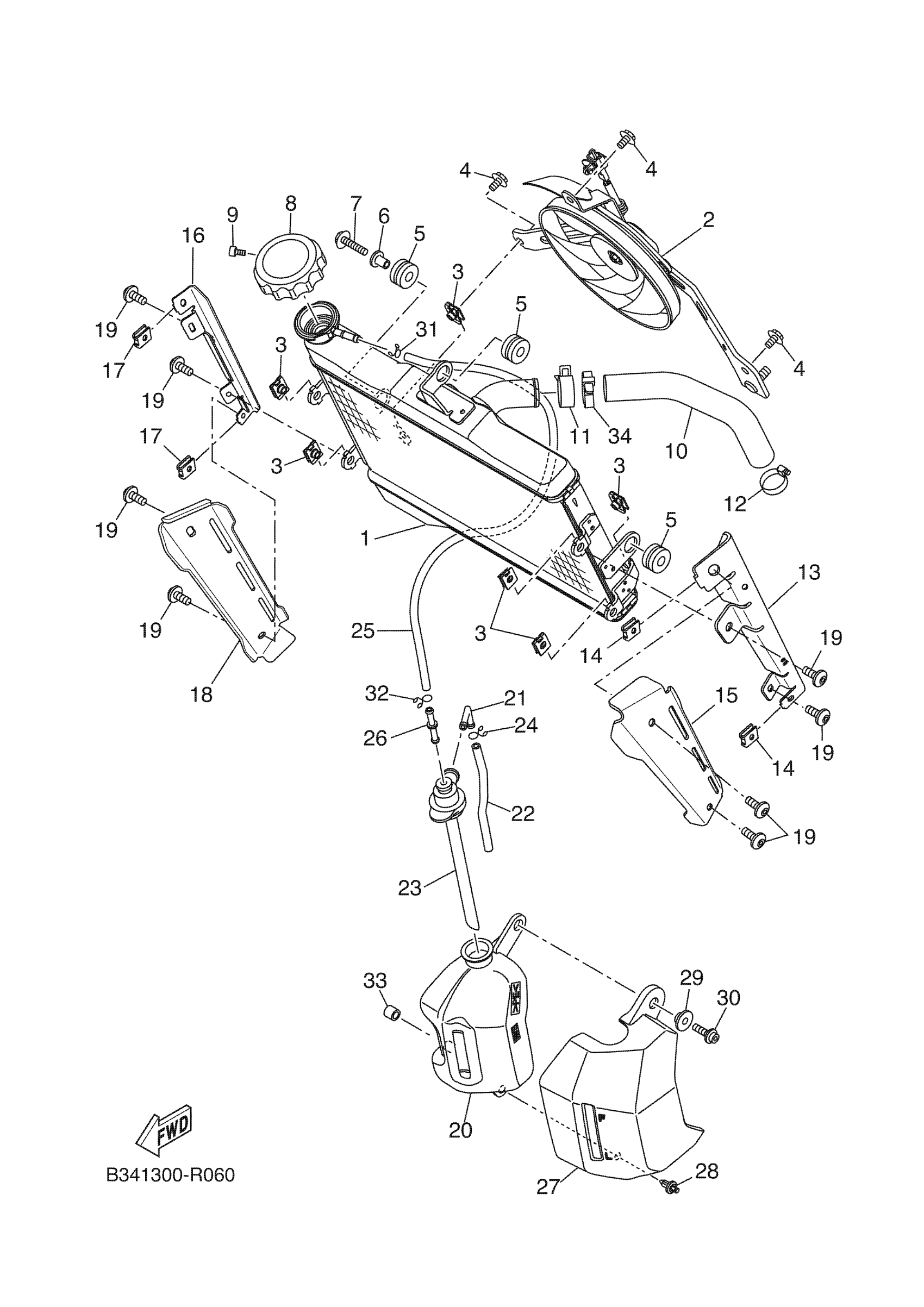

Yamaha XSR700MW (XSR700) B2GK 2021 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR COMP

B34-12461-00-00

$338.99

2

BLOWER ASSY

1WS-12405-00-00

Unavailable

3

NUT 1

1WS-12671-00-00

$3.22

4

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

5

GROMMET (29L)

90480-15363-00

$8.49

6

COLLAR

90387-06311-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06156-00

$1.16

8

CAP, RADIATOR

3D7-12462-00-00

$44.99

9

BOLT, SOCKET

91317-03006-00

$9.49

10

HOSE 3

1WS-12578-00-00

$35.99

11

CLIP

90467-290A0-00

Unavailable

12

HOSE CLAMP ASSY

90450-35001-00

$5.60

13

STAY RADIATOR

B34-E2464-20-00

Unavailable

14

NUT, SPRING

90183-06X00-00

$5.60

15

COVER 3

B34-E246F-20-00

$175.99

16

STAY, RADIATOR

B34-E2464-50-00

Unavailable

17

NUT, SPRING

90183-06X00-00

$5.60

18

COVER 4

B34-E246G-20-00

Unavailable

19

BOLT

90111-06038-00

Unavailable

20

TANK, RECOVERY

1WS-21871-01-00

Unavailable

21

ELBOW

26H-21828-00-00

Unavailable

22

HOSE

90445-08035-00

Unavailable

23

CAP

3P6-21875-00-00

Unavailable

24

CLIP (16G)

90467-08021-00

Unavailable

25

PIPE 1

1WS-21816-00-00

Unavailable

26

JOINT

4XY-14568-00-00

Unavailable

27

COVER

1WS-2172W-00-00

Unavailable

28

RIVET

90269-06008-00

Unavailable

29

COLLAR (838-84757-00)

90387-06024-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

31

CLIP (16G)

90467-08021-00

Unavailable

32

CLIP 101235600

90467-08003-00

Unavailable

33

HOSE

90445-10064-00

Unavailable

34

CLAMP(6U0)

90464-07M40-00

Unavailable
