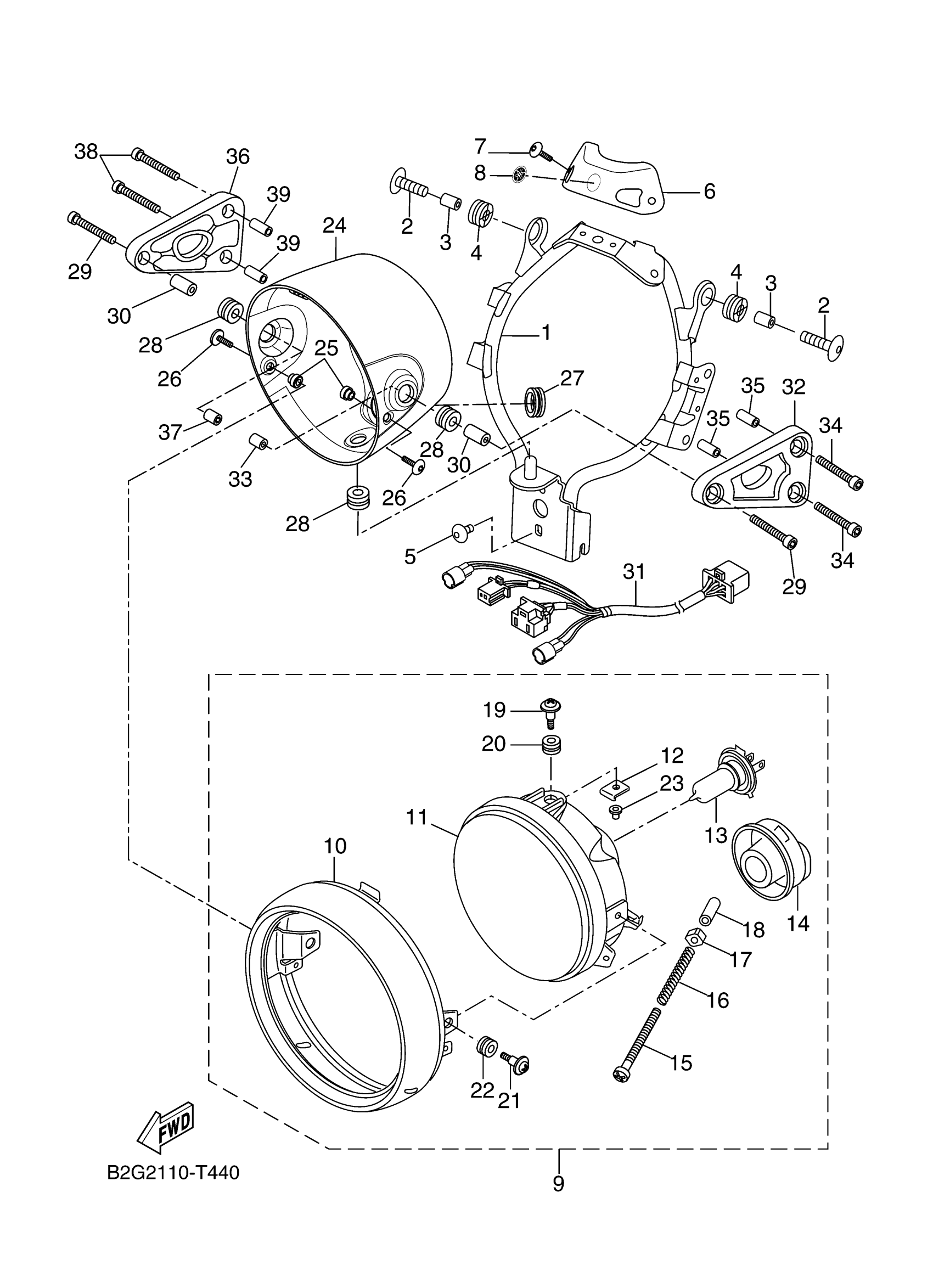

Yamaha XSR700MW (XSR700) B2GK 2021 HEADLIGHT Diagram

#

Description
Price

1

STAY HEADLIGHT

B34-F3174-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-06117-00

$2.17

3

COLLAR

90387-06144-00

$5.60

4

DAMPER

3C3-83513-00-00

$7.99

5

BOLT

90111-05002-00

$7.49

6

COVER METER

B34-H3559-10-00

$228.99

7

BOLT, BUTTON HEAD

92017-05014-00

$4.24

8

EMBLEM

4XV-2341B-00-00

$28.99

9

HEADLIGHT UNIT ASS

B34-84310-21-00

$286.99

10

RIM, HEADLIGHT

B34-84315-00-00

$188.99

11

LENS ASSY

5PX-84320-00-00

$186.99

12

STAY, HEADLIGHT 1

5PX-84318-00-00

$67.99

13

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

14

COVER, SOCKET

5PX-84397-00-00

$39.99

15

SCREW, RIM ADJUSTING

5PX-84331-00-00

$7.99

16

SPRING, SCREW

5PX-84332-00-00

Unavailable

17

NUT, ADJUSTING

5PX-84334-00-00

Unavailable

18

CAP,1

5PX-84385-00-00

Unavailable

19

SCREW, RIM FITTING

5PX-84325-00-00

Unavailable

20

GROMMET

5PX-84354-00-00

Unavailable

21

SCREW, RIM FITTING

5PX-84125-00-00

Unavailable

22

GROMMET

5PX-84352-00-00

Unavailable

23

NUT

5PX-84317-00-00

Unavailable

24

BODY, HEADLIGHT

B2G-84311-00-P2

Unavailable

25

COLLAR

B2G-84307-00-00

Unavailable

26

BOLT,SOCKET

91317-05014-00

Unavailable

27

GROMMET (3AB)

90480-25482-00

Unavailable

28

GROMMET

B34-H4354-00-00

Unavailable

29

BOLT, SOCKET

91314-06045-00

Unavailable

30

COLLAR

90387-06332-00

Unavailable

31

WIRE, LEAD 1

B2G-84148-10-00

Unavailable

32

STAY HEADLIGHT 1

B34-H4118-00-00

Unavailable

33

NUT

B2G-84117-00-00

Unavailable

34

BOLT, SOCKET

91314-06045-00

Unavailable

35

COLLAR

90387-06331-00

Unavailable

36

STAY HEADLIGHT 2

B34-H4119-00-00

Unavailable

37

NUT

B2G-84117-00-00

Unavailable

38

BOLT, SOCKET

91314-06045-00

Unavailable

39

COLLAR

90387-06331-00

Unavailable
