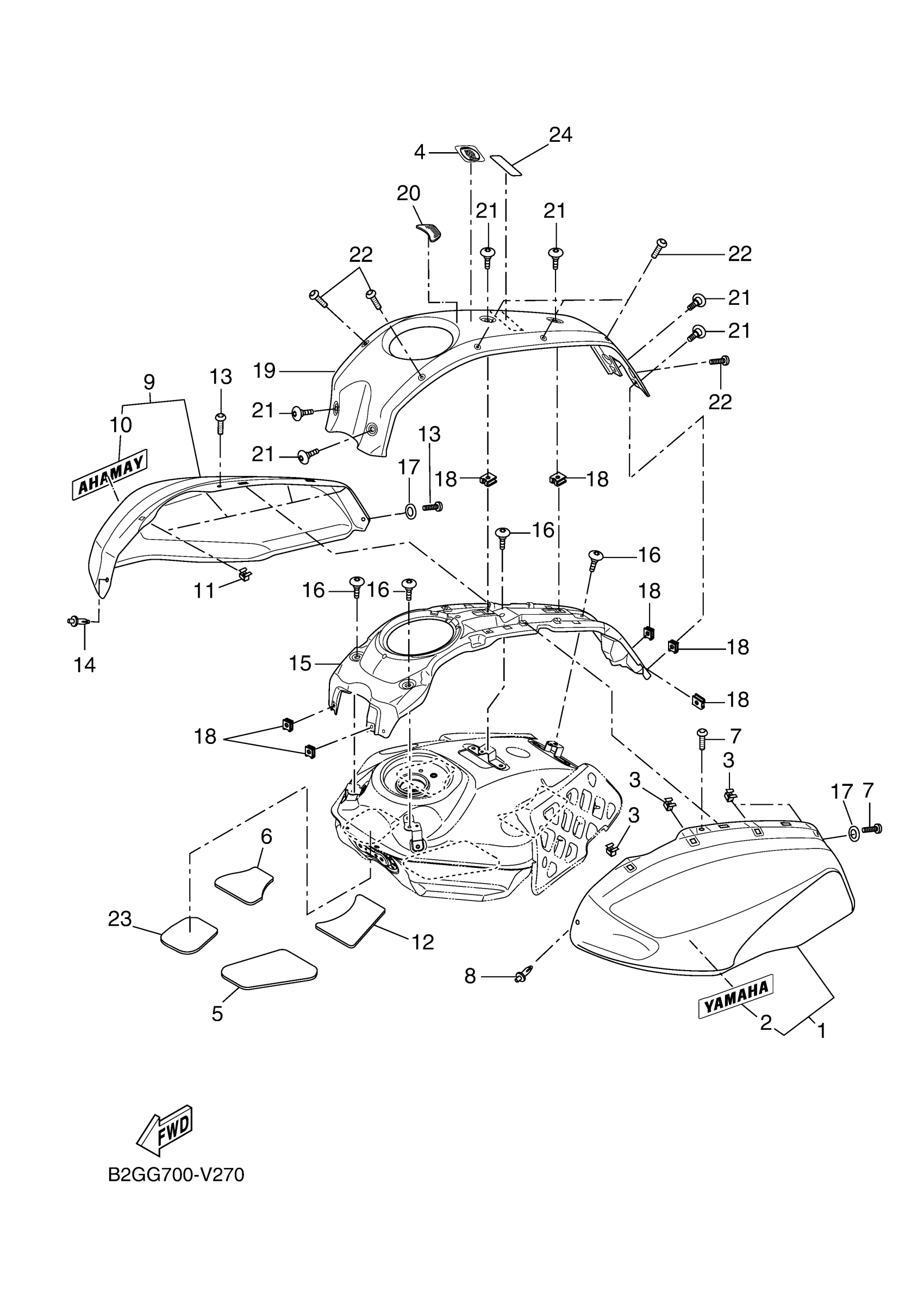

Yamaha XSR700MW (XSR700) B2GK 2021 FUEL TANK 3 Diagram

#

Description
Price

1

COVER, TANK SIDE 1 ASSY

B2G-Y24HA-10-01

Unavailable

2

EMBLEM, YAMAHA

99244-00120-00

$14.31

3

NUT SPRING

90183-05X08-00

$24.79

4

EMBLEM

B90-2416B-02-00

Unavailable

5

PROTECTOR 2

B2G-2315J-00-00

Unavailable

6

PROTECTOR

B2G-24595-00-00

$8.77

7

BOLT(3JP)

90111-05012-00

$6.22

8

RIVET

90269-06008-00

$5.55

9

COVER, TANK SIDE 2 ASSY

B2G-Y24JA-10-01

Unavailable

10

EMBLEM, YAMAHA

99244-00120-00

$14.31

11

NUT SPRING

90183-05X08-00

$24.79

12

SEAT, TANK PROTECTOR

B2G-24193-00-00

Unavailable

13

BOLT(3JP)

90111-05012-00

$6.22

14

RIVET

90269-06008-00

$5.55

15

COVER TANK

B34-F41B1-00-00

Unavailable

16

BOLT

90111-05011-00

Unavailable

17

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

18

NUT SPRING

90183-05X04-00

Unavailable

19

OUTER PANEL 1

B2G-2411A-00-P3

Unavailable

20

PROTECTOR, FUEL TANK

B34-F4141-00-00

Unavailable

21

BOLT

90111-05011-00

Unavailable

22

BOLT(3JP)

90111-05012-00

$6.22

23

PROTECTOR 1

B2G-2315H-00-00

Unavailable

24

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable
