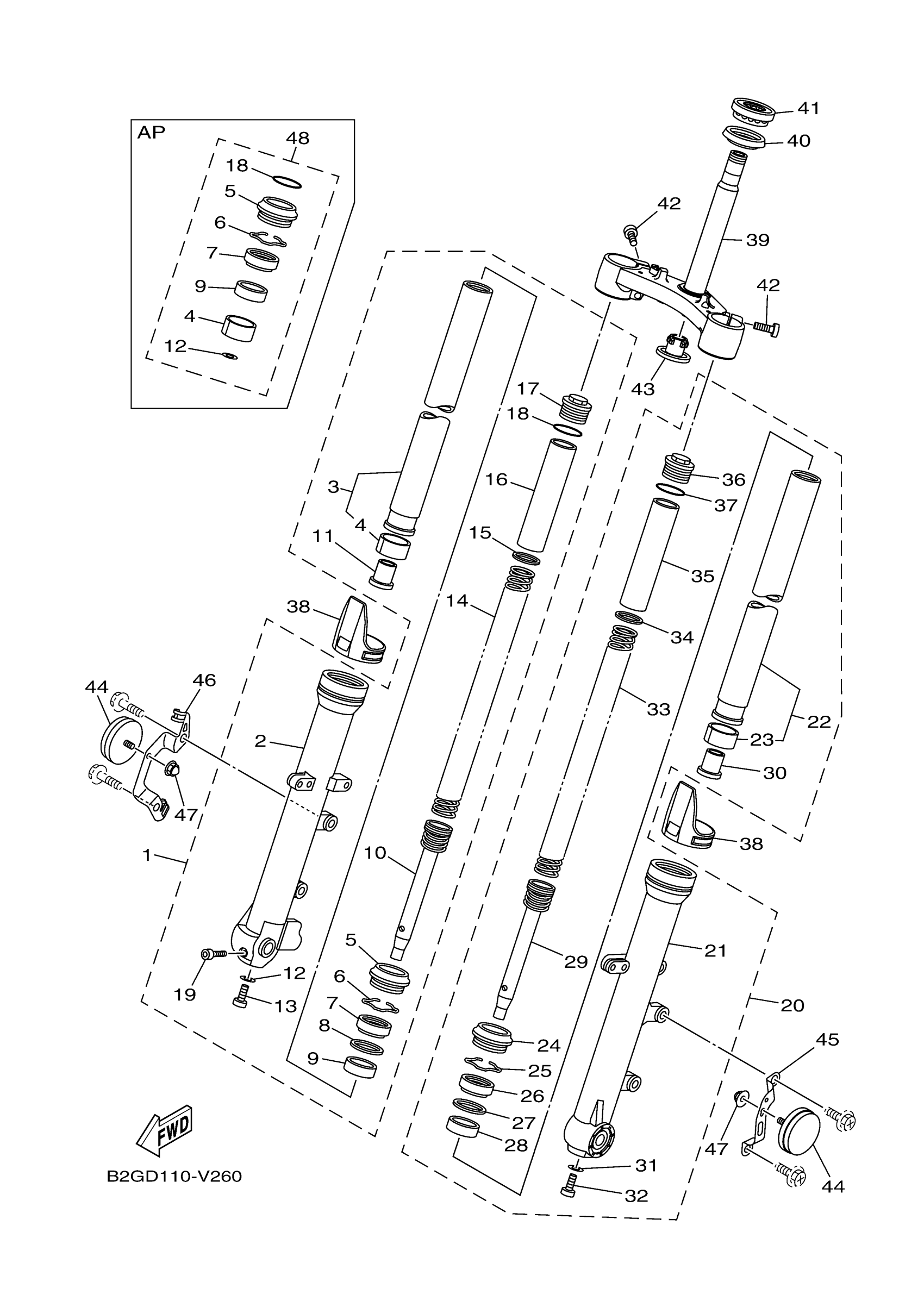

Yamaha XSR700MW (XSR700) B2GK 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R

1XB-23103-03-00

Unavailable

2

TUBE, OUTER 2

1XB-23136-01-00

Unavailable

3

INNER TUBE COMP.1

1WS-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

5

SEAL, DUST

4EB-23144-00-00

$22.99

6

CLIP, OIL SEAL

26H-23156-00-00

$7.99

7

OIL SEAL

4EB-23145-01-00

$28.99

8

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

9

METAL, SLIDE 1

4FM-23125-40-00

$33.99

10

CYLINDER COMP., FR

1WS-23170-00-00

Unavailable

11

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$16.49

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

14

SPRING, FRONT FORK

1WS-23141-01-00

$44.99

15

WASHER, SPRING UPPER

3EN-23149-50-00

$3.54

16

SPACER

3FW-23118-00-00

Unavailable

17

BOLT, CAP

1D0-23111-00-00

Unavailable

18

O-RING

43F-23188-11-00

Unavailable

19

BOLT,SOCKET

91314-08040-00

Unavailable

20

FRONT FORK ASSY (L

1WS-23102-03-00

Unavailable

21

TUBE, OUTER (L.H)

1WS-23126-01-00

Unavailable

22

INNER TUBE COMP.1

1WS-23110-00-00

Unavailable

23

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

24

SEAL, DUST

4EB-23144-00-00

$22.99

25

CLIP, OIL SEAL

26H-23156-00-00

$7.99

26

OIL SEAL

4EB-23145-01-00

$28.99

27

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

28

METAL, SLIDE 1

4FM-23125-40-00

$33.99

29

CYLINDER COMP., FR

1WS-23170-00-00

Unavailable

30

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

31

GASKET

509-23158-L0-00

$16.49

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

33

SPRING, FRONT FORK

1WS-23141-00-00

Unavailable

34

WASHER, SPRING UPPER

3EN-23149-50-00

$3.54

35

SPACER

3FW-23118-00-00

Unavailable

36

BOLT, CAP

1D0-23111-00-00

Unavailable

37

O-RING

43F-23188-11-00

Unavailable

38

COVER

1WS-2331G-00-00

Unavailable

39

UNDER BRACKET COMP.

B34-23340-00-00

Unavailable

40

SEAL, STEERING

3FV-23462-00-00

Unavailable

41

BEARING(3FV)

93399-99932-00

Unavailable

42

BOLT,SOCKET

91314-08030-00

Unavailable

43

COVER, LOWER 1

4KM-23123-01-00

Unavailable

44

REFLECTOR, FRONT 1

4AG-85111-00-00

Unavailable

45

BRACKET, REFLECTOR

1WS-85112-00-00

Unavailable

46

BRACKET, REFLECTOR 2

1XB-85122-00-00

Unavailable

47

NUT, CROWN

90176-06014-00

Unavailable

48

FORK SEAL KIT (ONE FORK)

B2G-W003B-00-00

Unavailable
