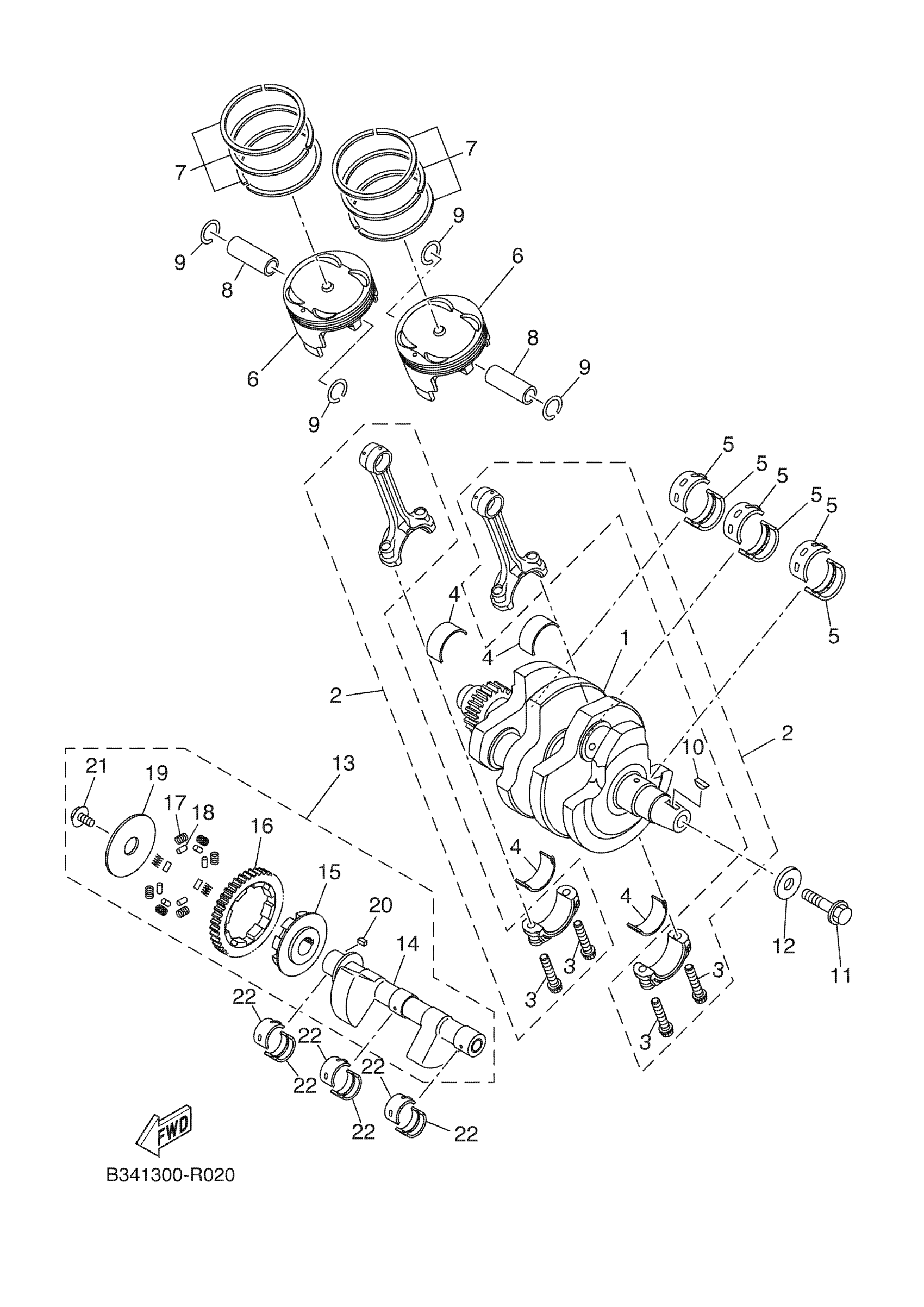

Yamaha XSR700MW (XSR700) B2GK 2021 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1WS-11400-00-00

$949.99

2

CONNECTING ROD ASS

1WS-11650-00-00

$148.99

3

BOLT, CONNECTING ROD

1RC-11654-00-00

$3.33

4

PLANE BEARING, CONNECTING ROD

1RC-11656-00-00

$10.99

4

PLANE BEARING, CONNECTING ROD

1RC-11656-10-00

$10.99

4

PLANE BEARING, CONNECTING ROD

1RC-11656-20-00

$10.99

4

PLANE BEARING, CONNECTING ROD

1RC-11656-30-00

$11.99

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-00-00

$30.99

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-10-00

$30.99

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-20-00

$30.99

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-A0-00

$28.99

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-B0-00

$35.99

6

PISTON (STD)

1WS-11631-00-00

Unavailable

7

PISTON RING SET (S

1WS-11603-01-00

Unavailable

8

PIN, PISTON

1WS-11633-00-00

$19.99

9

CIRCLIP (2F1)

93450-19052-00

Unavailable

10

KEY, WOODRUFF (26H)

90280-05029-00

Unavailable

11

BOLT, WASHER BASED

90105-126A8-00

Unavailable

12

WASHER, PLATE

90201-12008-00

Unavailable

13

BALANCER ASSY

1WS-11500-00-00

Unavailable

14

WEIGHT 1

1WS-11454-00-00

Unavailable

15

BOSS, BUFFER

1WS-11496-00-00

Unavailable

16

GEAR, BALANCE WEIG

1WS-11531-00-00

Unavailable

17

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

18

PIN, DOWEL

93605-10090-00

Unavailable

19

PLATE, ABSORBER

1WS-11533-00-00

Unavailable

20

KEY, STRAIGHT

90282-04001-00

Unavailable

21

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable

22

PLANE BEARING, BALANCE WEIGHT

2S3-11413-00-00

Unavailable

22

PLANE BEARING, BALANCE WEIGHT

2S3-11413-10-00

Unavailable

22

PLANE BEARING, BALANCE WEIGHT

2S3-11413-20-00

Unavailable

22

PLANE BEARING, BALANCE WEIGHT

2S3-11413-30-00

Unavailable

22

PLANE BEARING, BALANCE WEIGHT

2S3-11413-40-00

Unavailable
