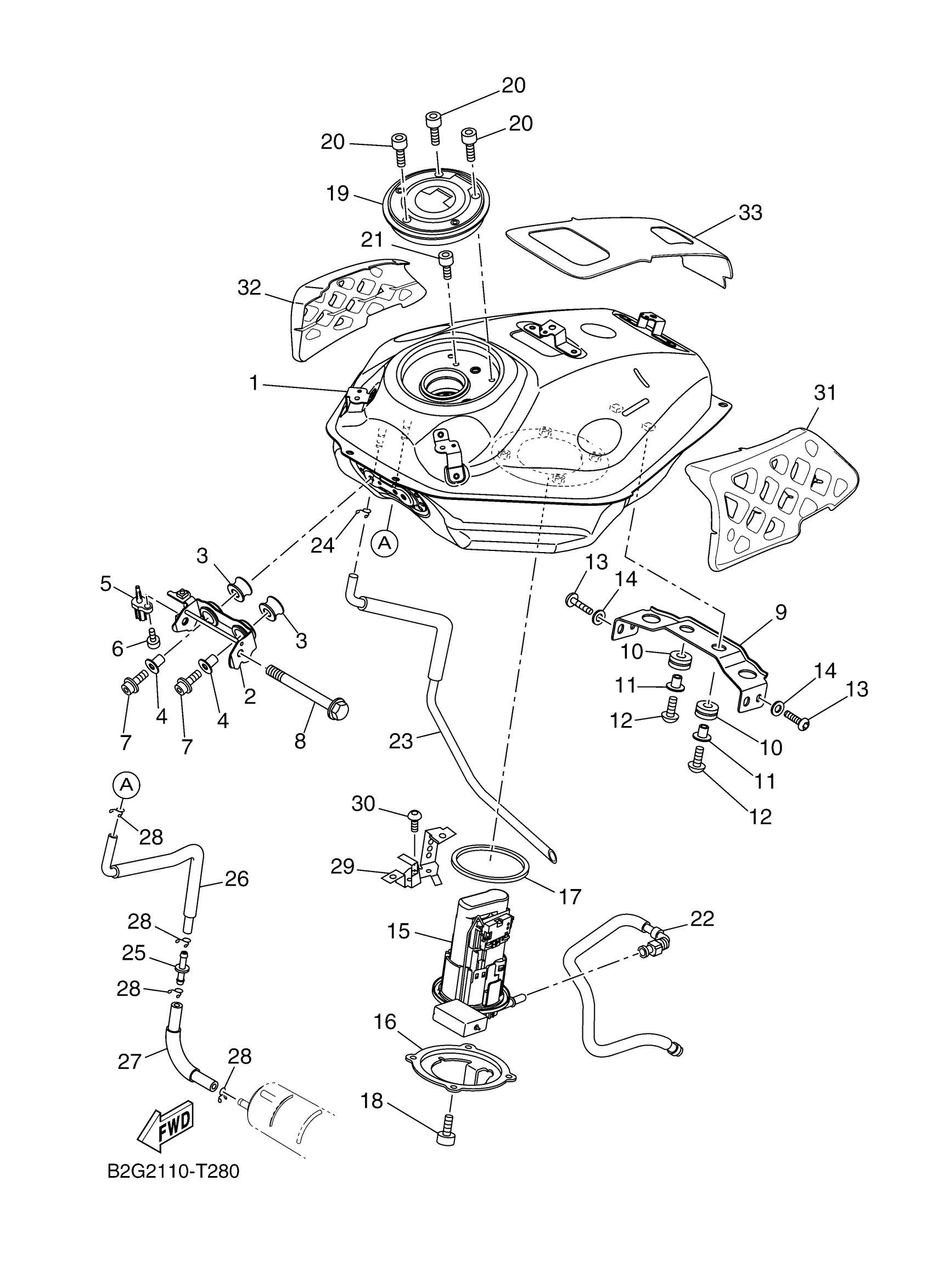

Yamaha XSR700LW (XSR700) B2GD 2020 FUEL TANK 2 Diagram

#

Description
Price

1

FUEL TANK COMP.

B2G-24110-00-00

$290.99

2

BRACKET, TANK FITT

1WS-2412Y-00-00

Unavailable

3

GROMMET

3D7-24339-00-00

$4.63

4

COLLAR

90387-06136-00

$7.49

5

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$34.99

6

SCREW, PAN

98517-05012-00

$4.73

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

8

BOLT, FLANGE

95817-08100-00

$5.60

9

BRACKET, TANK FITTING

B2G-2413Y-00-00

Unavailable

10

GROMMET

90480-16003-00

Unavailable

11

COLLAR

90387-06287-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$5.60

13

BOLT, BUTTON HEAD

92012-06014-00

$8.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

FUEL PUMP COMP.

1WS-13907-10-00

$396.99

16

BRACKET, FUEL PUMP

1WS-24491-01-00

Unavailable

17

O-RING

1RC-24486-00-00

Unavailable

18

BOLT

91312-05010-00

Unavailable

19

CAP ASSY

1WS-24602-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

21

BOLT, SOCKET

91317-05010-00

Unavailable

22

PIPE, FUEL 1

1WS-13971-01-00

Unavailable

23

PIPE, OVERFLOW

2RC-24318-00-00

Unavailable

24

CLIP

90467-090A2-00

Unavailable

25

JOINT

4XY-14568-00-00

Unavailable

26

PIPE 10

B2G-24321-00-00

Unavailable

27

PIPE 11

B2G-24322-00-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

BRACKET, CANISTOR

2RC-2419F-00-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

31

DAMPER, PLATE 1

B34-F414H-02-00

Unavailable

32

DAMPER, PLATE 2

B34-F414J-01-00

Unavailable

33

DAMPER PLATE 3

B34-F414K-00-00

Unavailable
