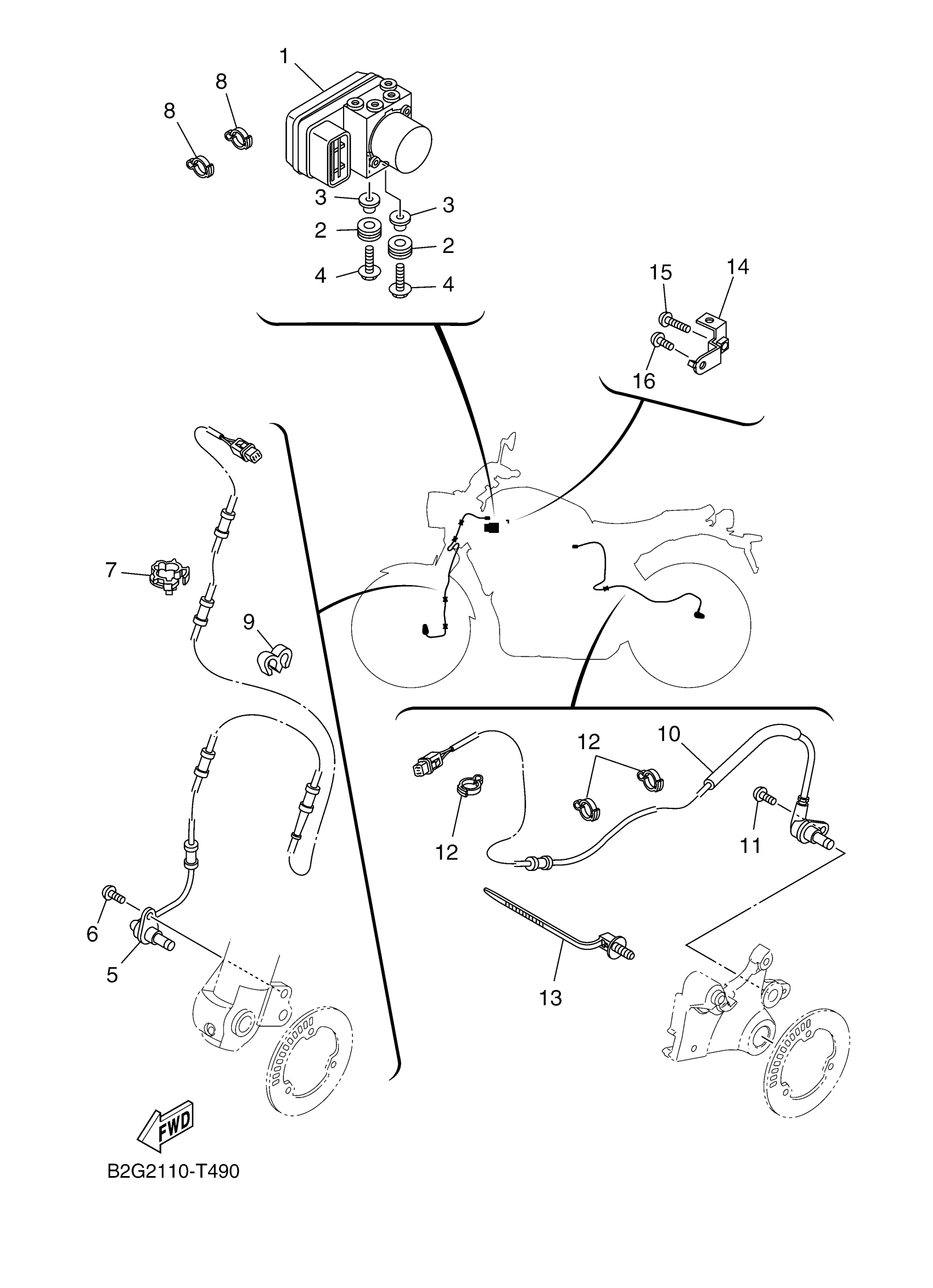

Yamaha XSR700LW (XSR700) B2GD 2020 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

B34-85930-08-00

Unavailable

2

GROMET (3X3)

90480-14229-00

$8.49

3

COLLAR

90387-06313-00

Unavailable

4

BOLT, FLANGE

95817-06020-00

$3.81

5

WHEEL SENSOR ASSY,

1XB-85970-01-00

$157.99

6

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

7

CLAMP

90464-12013-00

$8.49

8

CLAMP(4GL)

90464-10233-00

$7.49

9

CLAMP

90464-04001-00

$7.49

10

WHEEL SENSOR ASSY,

1XB-85980-01-00

Unavailable

11

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

12

CLAMP(4GL)

90464-10233-00

$7.49

13

CLAMP

90464-30009-00

Unavailable

14

BRACKET 1

1XB-2175T-00-00

Unavailable

15

BOLT, BUTTON HEAD

92012-06040-00

$3.28

16

BOLT, BUTTON HEAD

92012-06016-00

Unavailable
