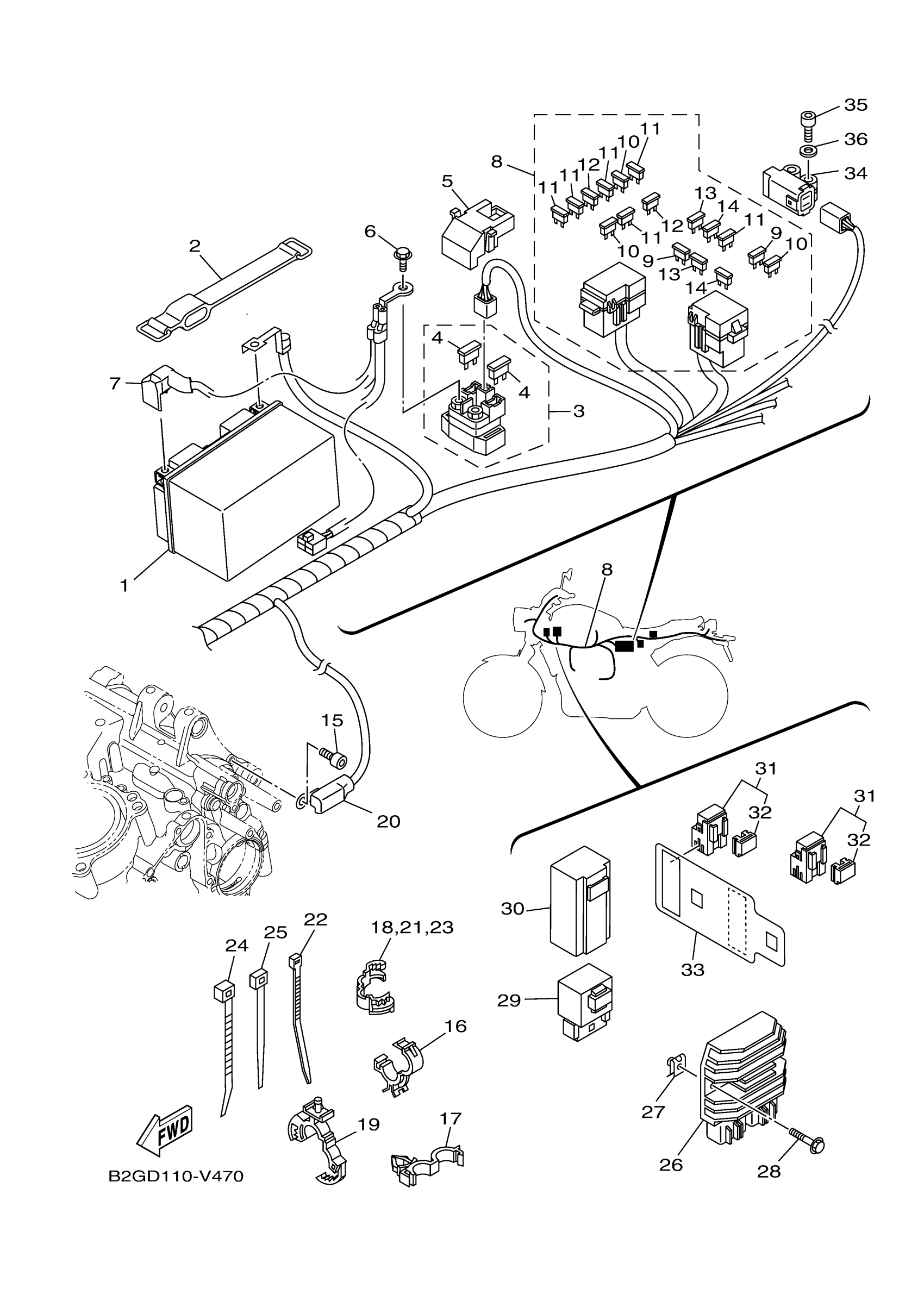

Yamaha XSR700LW (XSR700) B2GD 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

2

BAND, BATTERY

1WS-82131-00-00

$7.99

3

STARTER RELAY ASSY

1XC-81940-00-00

$65.99

4

FUSE (12V 30A)

1AE-82151-00-00

$7.99

5

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

6

BOLT, FLANGE

95022-06008-00

$8.49

7

WIRE, PLUS LEAD

1XB-82115-01-00

Unavailable

8

WIRE HARNESS ASSY

B2G-82590-11-00

Unavailable

9

FUSE (2A-BL)

5JJ-82151-80-00

$7.99

10

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

11

. FUSE (10A)

67F-82151-40-00

Unavailable

12

FUSE (15A)

67F-82151-50-00

Unavailable

13

FUSE

5JJ-82151-20-00

$7.99

14

FUSE

5JJ-82151-60-00

$7.99

15

BOLT

91380-06012-00

Unavailable

16

CLAMP(4GY)

90464-20191-00

Unavailable

17

CLAMP

90464-18007-00

Unavailable

18

CLAMP

90464-14010-00

Unavailable

19

CLAMP

90464-18011-00

Unavailable

20

COVER, TERMINAL

1WS-81916-00-00

Unavailable

21

CLAMP

90464-14010-00

Unavailable

22

CLAMP

90464-36005-00

Unavailable

23

CLAMP

90464-14010-00

Unavailable

24

CLAMP(3XW)

90464-35132-00

Unavailable

25

CLAMP

90464-16061-00

Unavailable

26

RECTIFIER & REGULATOR ASSY

27D-81960-00-00

Unavailable

27

NUT, SPRING(4ES)

90183-06069-00

Unavailable

28

. BOLT, FLANGE

95027-06020-00

Unavailable

29

RELAY ASSY

5VK-81950-52-00

Unavailable

30

COVER 1

1WS-8246B-00-00

Unavailable

31

RELAY ASSY

1TP-81950-00-00

Unavailable

32

HOLDER,RELAY

5EA-81952-00-00

Unavailable

33

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

34

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

35

BOLT

91312-04025-00

Unavailable

36

WASHER, PLATE

90201-04030-00

Unavailable
