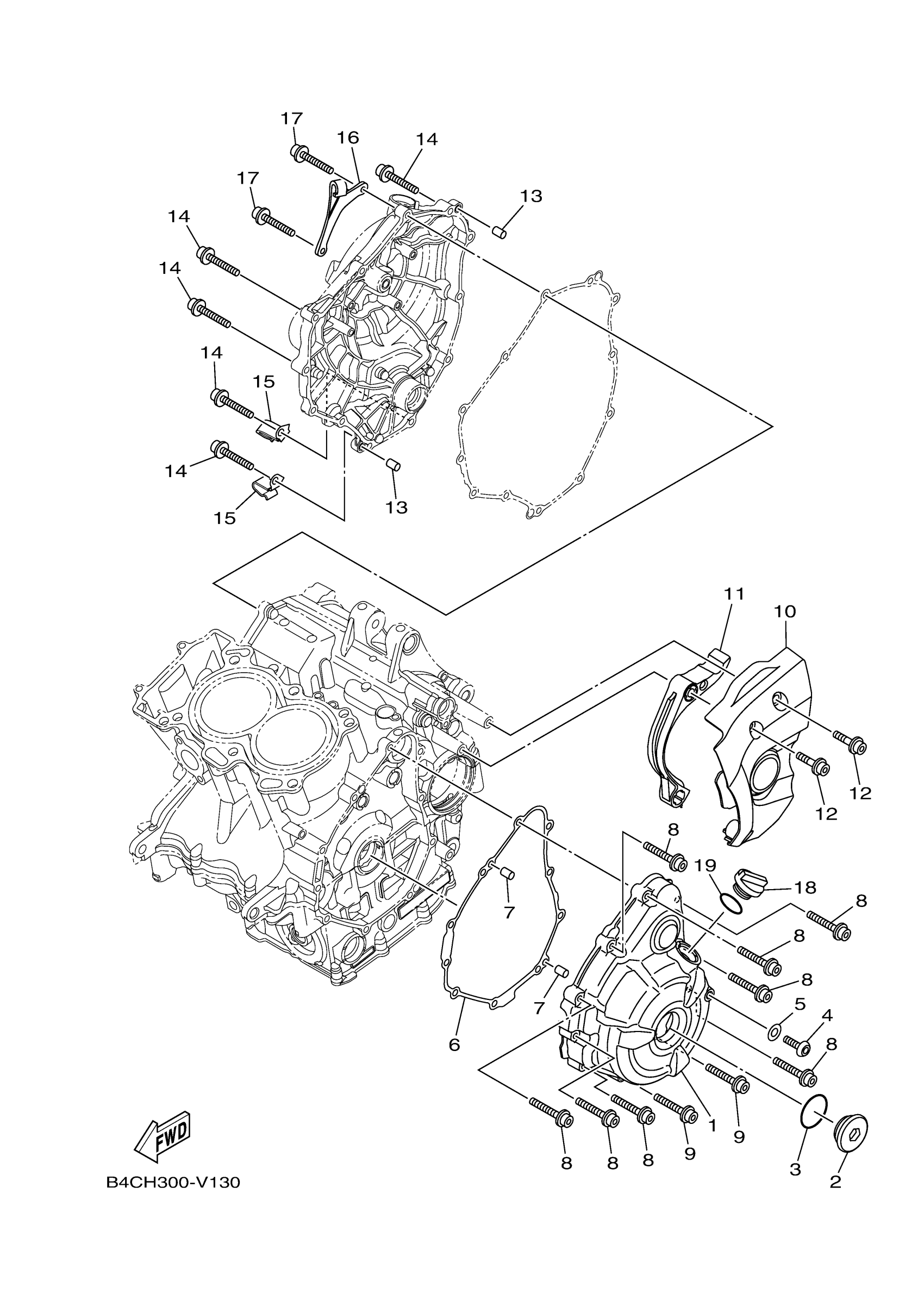

Yamaha XSR700LW (XSR700) B2GD 2020 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1WS-15411-00-00

$127.99

2

PLUG, STRAIGHT SCREW

90340-36005-00

$31.99

3

O-RING

93210-35804-00

$0.48

4

BOLT, BUTTON HEAD

92017-08012-00

$8.49

5

. GASKET

90430-08143-00

Unavailable

6

GASKET, CRANKCASE

1WS-15451-00-00

$20.99

7

PIN, DOWEL

99530-08012-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

9

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

10

COVER, CHAIN CASE

1WS-15418-00-00

$27.99

11

GUIDE, INLET

1WS-15377-00-00

$31.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

$2.97

13

PIN, DOWEL

99530-08012-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

15

CLAMP

90465-08045-00

Unavailable

16

HOLDER, CLUTCH CAB

1WS-15441-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

18

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

19

O-RING(1KT)

93210-27778-00

Unavailable
