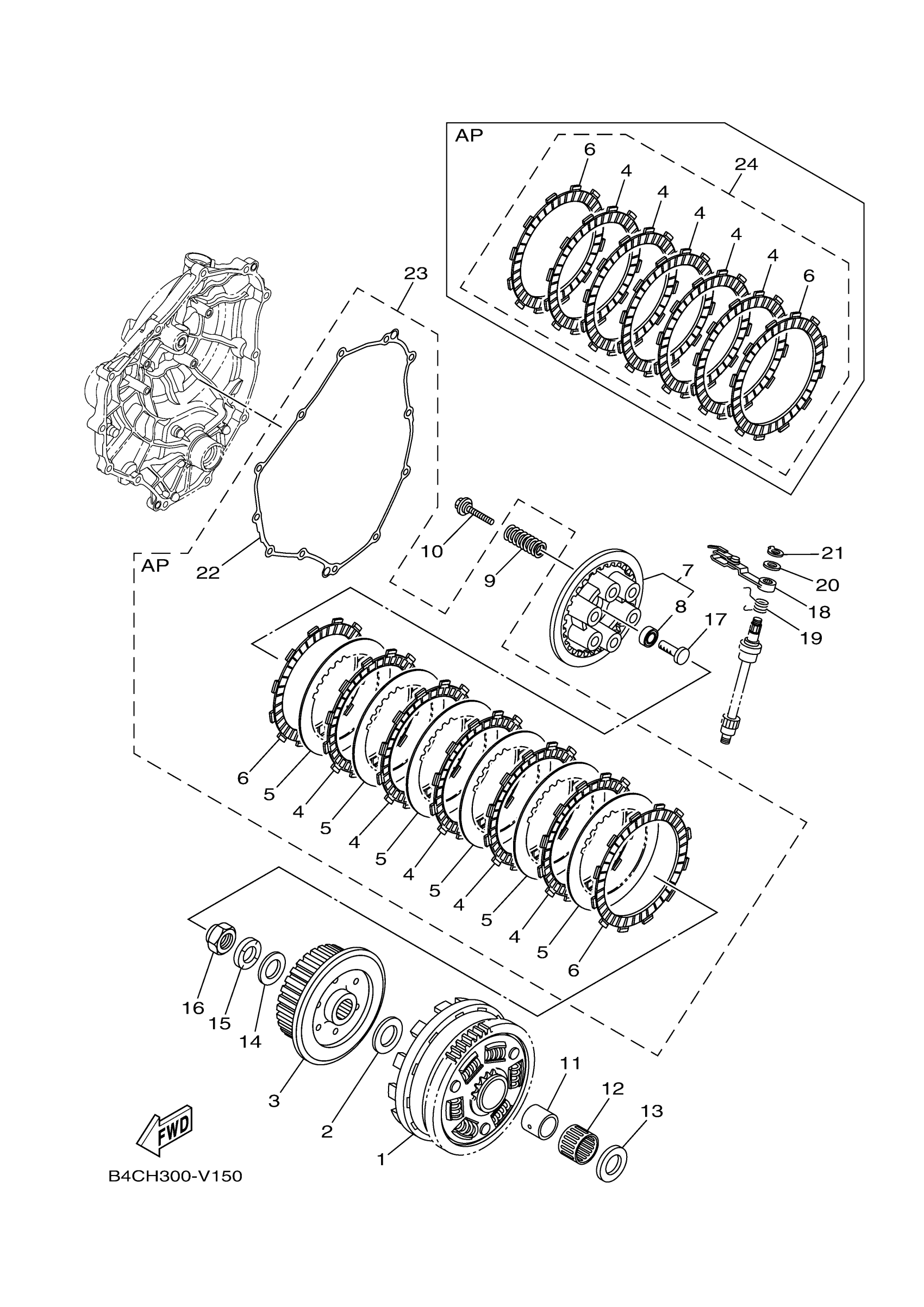

Yamaha XSR700LW (XSR700) B2GD 2020 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEA

1WS-16150-00-00

$391.99

2

PLATE, THRUST

363-16154-00-00

$16.49

3

BOSS, CLUTCH

1WS-16371-01-00

$71.99

4

PLATE, FRICTION

5VY-16321-00-00

$31.99

5

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

6

PLATE, FRICTION

5TG-16321-00-00

$15.49

7

PRESSURE PLATE ASS

1WS-16350-00-00

$69.99

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

9

SPRING, COMPRESSION(3GM)

90501-230E4-00

$9.49

10

BOLT, WITH WASHER

90119-06263-00

$8.49

11

SPACER 1

1WS-16181-00-00

$46.99

12

BEARING

93310-232R9-00

$43.99

13

PLATE, THRUST

363-16154-00-00

$16.49

14

WASHER, PLATE

90201-20030-00

$7.49

15

WASHER, CONICAL SPRING

90208-20001-00

$18.99

16

NUT

90179-20022-00

Unavailable

17

ROD, PUSH 1

1WS-16356-00-00

Unavailable

18

PUSH LEVER ASSY

1WS-16340-01-00

Unavailable

19

SPRING, TORSION

90508-18132-00

Unavailable

20

WASHER, PLATE

90201-10029-00

Unavailable

21

CIRCLIP(10W)

99009-10400-00

Unavailable

22

GASKET, CRANKCASE

1WS-15461-00-00

Unavailable

23

CLUTCH PLATE KIT

BTK-W001G-00-00

Unavailable

24

FRICTION PLATE KIT

B4C-W001M-00-00

Unavailable
