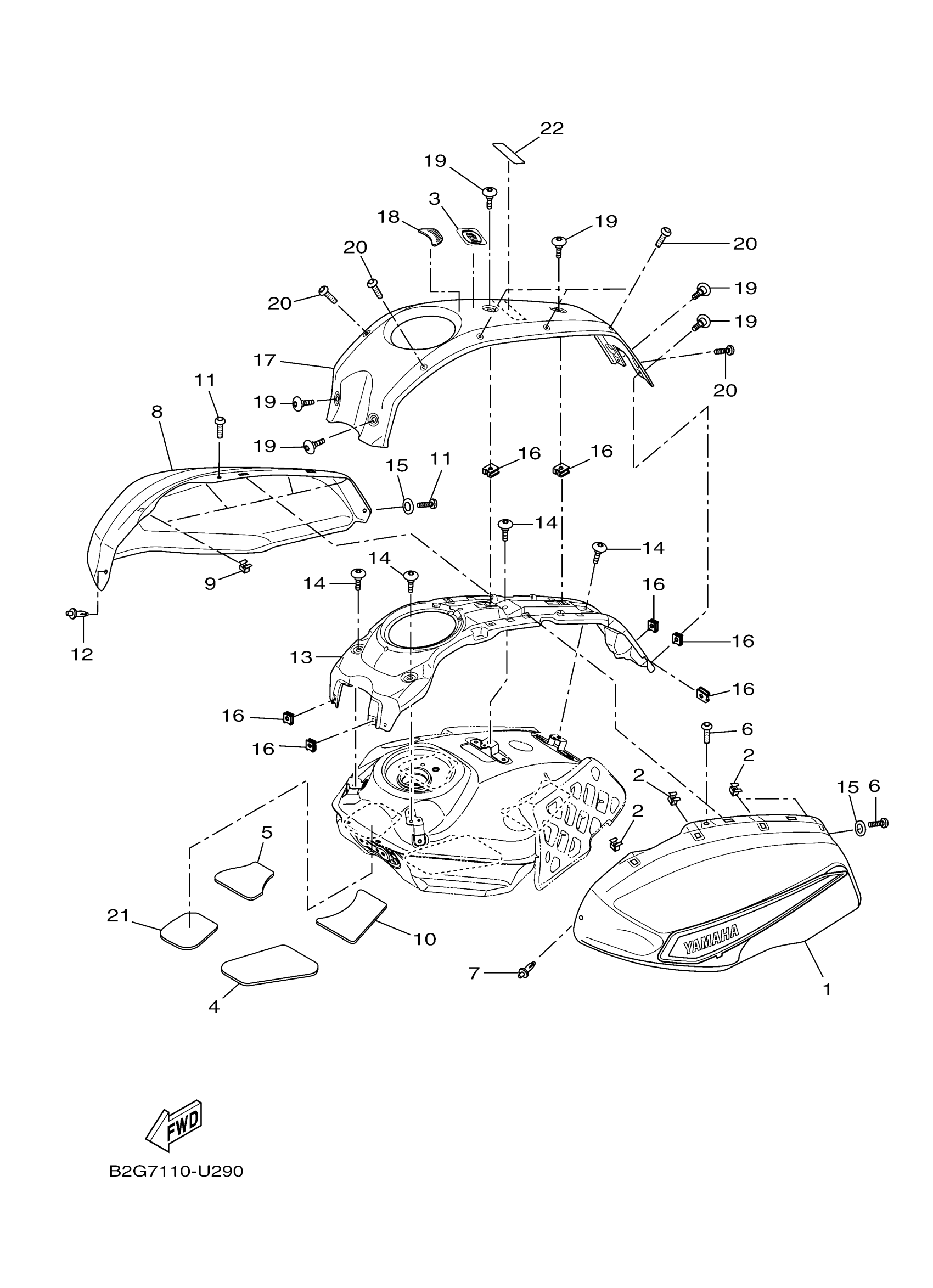

Yamaha XSR700KGY (XSR700) B2G7 2019 FUEL TANK 3 Diagram

#

Description
Price

1

COVER, TANK SIDE 1 ASSY

B2G-Y24HA-00-01

Unavailable

2

NUT SPRING

90183-05X08-00

$30.99

3

EMBLEM

B90-2416B-02-00

$38.99

4

PROTECTOR 2

B2G-2315J-00-00

Unavailable

5

PROTECTOR

B2G-24595-00-00

$10.49

6

BOLT(3JP)

90111-05012-00

$8.49

7

RIVET

90269-06008-00

$9.49

8

COVER, TANK SIDE 2 ASSY

B2G-Y24JA-00-01

Unavailable

9

NUT SPRING

90183-05X08-00

$30.99

10

SEAT, TANK PROTECTOR

B2G-24193-00-00

Unavailable

11

BOLT(3JP)

90111-05012-00

$8.49

12

RIVET

90269-06008-00

$9.49

13

COVER TANK

B34-F41B1-00-00

Unavailable

14

BOLT

90111-05011-00

$5.60

15

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

16

NUT SPRING

90183-05X04-00

Unavailable

17

OUTER PANEL 1

B2G-2411A-00-P0

Unavailable

18

PROTECTOR, FUEL TANK

B34-F4141-00-00

Unavailable

19

BOLT

90111-05011-00

$5.60

20

BOLT(3JP)

90111-05012-00

$8.49

21

PROTECTOR 1

B2G-2315H-00-00

Unavailable

22

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable
