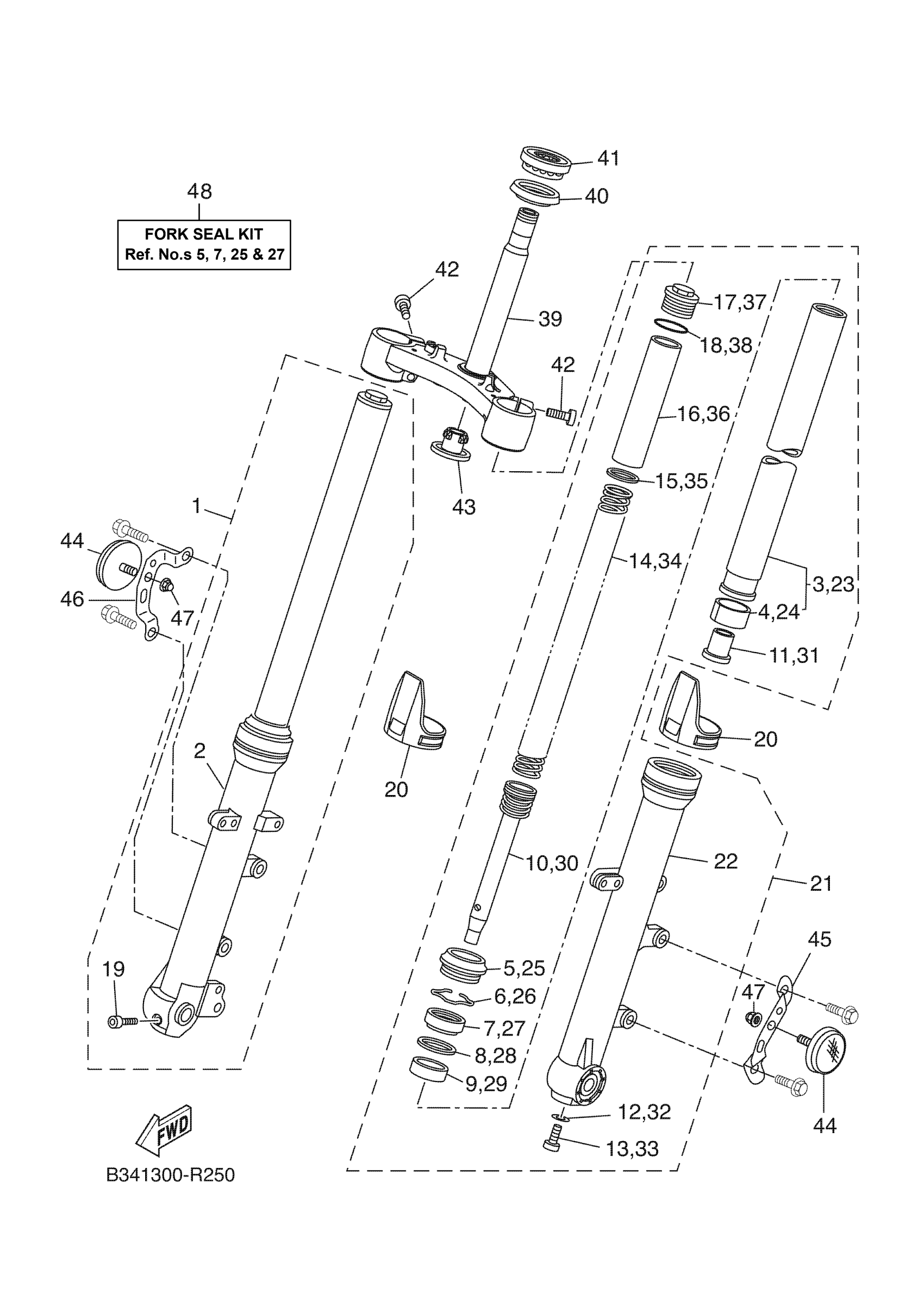

Yamaha XSR700KGY (XSR700) B2G7 2019 FRONT FORK Diagram
#
1
FRONT FORK ASSY (R.H)
1XB-23103-01-00
Unavailable
2
TUBE, OUTER 2
1XB-23136-01-00
Unavailable
3
INNER TUBE COMP.1
1WS-23110-00-00
Unavailable
10
CYLINDER COMP., FR
1WS-23170-00-00
Unavailable
11
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
14
SPRING, FRONT FORK
1WS-23141-00-00
Unavailable
16
SPACER
3FW-23118-00-00
Unavailable
17
BOLT, CAP
1D0-23111-00-00
Unavailable
18
O-RING
43F-23188-10-00
Unavailable
19
BOLT,SOCKET
91314-08040-00
Unavailable
20
COVER
1WS-2331G-00-00
Unavailable
21
FRONT FORK ASSY (L
1WS-23102-03-00
Unavailable
22
TUBE, OUTER (L.H)
1WS-23126-01-00
Unavailable
23
INNER TUBE COMP.1
1WS-23110-00-00
Unavailable
30
CYLINDER COMP., FR
1WS-23170-00-00
Unavailable
31
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
34
SPRING, FRONT FORK
1WS-23141-00-00
Unavailable
36
SPACER
3FW-23118-00-00
Unavailable
37
BOLT, CAP
1D0-23111-00-00
Unavailable
38
O-RING
43F-23188-10-00
Unavailable
39
UNDER BRACKET COMP.
B34-23340-00-00
Unavailable
40
SEAL, STEERING
3FV-23462-00-00
Unavailable
41
BEARING(3FV)
93399-99932-00
Unavailable
42
BOLT,SOCKET
91314-08030-00
Unavailable
43
COVER, LOWER 1
4KM-23123-01-00
Unavailable
44
REFLECTOR, FRONT 1
4AG-85111-00-00
Unavailable
45
BRACKET, REFLECTOR
1WS-85112-00-00
Unavailable
46
BRACKET, REFLECTOR 2
1XB-85122-00-00
Unavailable
47
NUT, CROWN
90176-06014-00
Unavailable
48
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
