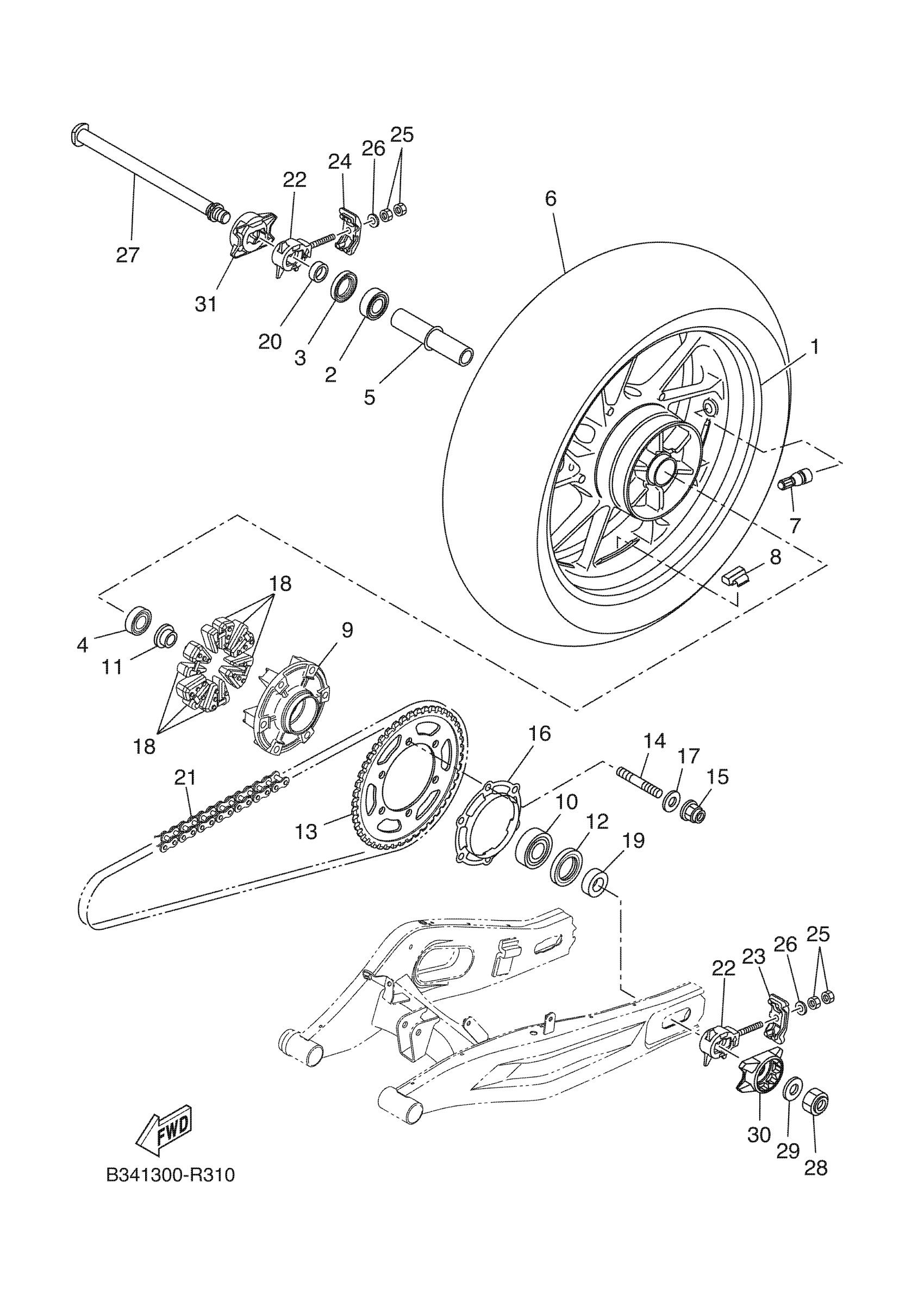

Yamaha XSR700JR (XSR700) B2G20 2018 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

2DR-25338-00-98

$596.99

2

BEARING

93306-20480-00

$44.99

3

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

SPACER, BEARING

2PP-25317-00-00

$22.99

7

VALVE, RIM(2GH)

93900-00030-00

$16.99

8

BALANCER, WHEEL

5MT-25398-00-00

$17.49

8

BALANCER, WHEEL

5MT-25398-10-00

$17.49

8

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

9

CLUTCH, HUB

5JJ-25366-00-00

$465.99

10

BEARING

93306-205B5-00

$41.99

11

COLLAR, WHEEL

1RC-25383-00-00

$32.99

12

OIL SEAL

93106-40013-00

$14.99

13

SPROCKET, DRIVEN (

1WS-25443-00-00

$96.99

14

BOLT, STUD

90116-10048-00

Unavailable

15

NUT, SELF-LOCKING

90185-10011-00

Unavailable

16

BRACKET 1

1WS-2537W-00-00

Unavailable

17

WASHER, PLATE

90201-10045-00

Unavailable

18

DAMPER

5SL-25364-00-00

Unavailable

19

COLLAR

90387-20036-00

Unavailable

20

COLLAR

90387-20035-00

Unavailable

21

CHAIN

94A40-21108-00

Unavailable

22

PULLER, CHAIN 1

1WS-25388-00-00

Unavailable

23

END 1

B34-22174-00-00

Unavailable

24

END 1

B34-22175-00-00

Unavailable

25

NUT

95302-08600-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable

27

SHAFT, PIVOT

4FN-22141-00-00

Unavailable

28

NUT, SELF-LOCKING

90185-18009-00

Unavailable

29

WASHER, PLATE

90201-18021-00

Unavailable

30

COVER, REAR AXLE 1

1WS-2538D-10-00

Unavailable

31

COVER, REAR AXLE 2

1WS-2538N-10-00

Unavailable
