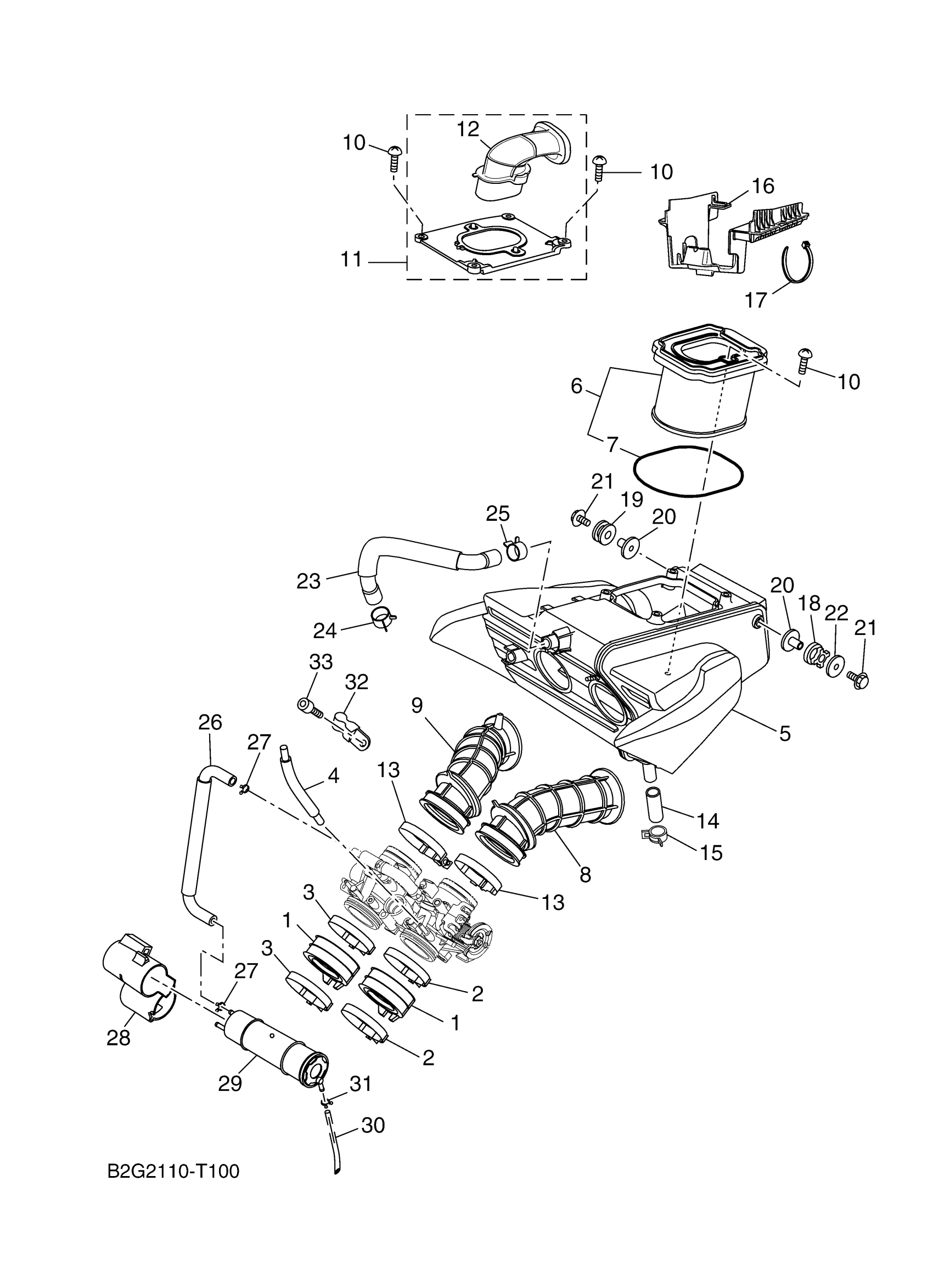

Yamaha XSR700JR (XSR700) B2G20 2018 INTAKE 2 Diagram

#

Description
Price

1

JOINT, INTAKE 1

1WS-13635-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-56011-00

$13.99

3

HOSE CLAMP ASSY

90450-56012-00

$33.99

4

HOSE, VACUUM SENSI

1WS-13542-00-00

$4.52

5

AIR CLEANER CASE A

1WS-14401-00-00

$274.99

6

ELEMENT ASSY, AIR

1WS-14450-00-00

$41.99

7

SEAL

1WS-14452-00-00

Unavailable

8

FUNNEL, AIR

1WS-14469-01-00

$25.99

9

FUNNEL 2

1WS-1446C-01-00

$25.99

10

SCREW, ROUND TAPPING

90160-05013-00

$8.49

11

DUCT ASSY

1WS-14430-11-00

$34.99

12

DUCT

1WS-14437-11-00

$37.99

13

HOSE CLAMP ASSY

90450-56011-00

$13.99

14

PIPE, DRAIN

1WS-1443E-00-00

$4.32

15

CLIP(3YX)

90467-13133-00

$8.49

16

SEAL

B34-E4476-00-00

Unavailable

17

CLAMP

90464-16061-00

Unavailable

18

GROMMET

90480-15001-00

Unavailable

19

GROMMET

90480-15014-00

Unavailable

20

COLLAR

90387-06300-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06156-00

Unavailable

22

WASHER, PLATE(1JK)

90201-064K6-00

Unavailable

23

PIPE, BREATHER 1

1WS-11166-00-00

Unavailable

24

CLIP(3TB)

90467-17128-00

Unavailable

25

CLIP

90467-160A2-00

Unavailable

26

PIPE 12

2RC-24323-00-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable

28

DAMPER, LOCATING 2

2RC-24182-00-00

Unavailable

29

CANISTER ASSY

2RC-24170-00-00

Unavailable

30

PIPE 13

2RC-24324-00-00

Unavailable

31

CLIP

90467-090A2-00

Unavailable

32

CLAMP 1

1WS-24135-00-00

Unavailable

33

BOLT, BUTTON HEAD

92017-06010-00

Unavailable
