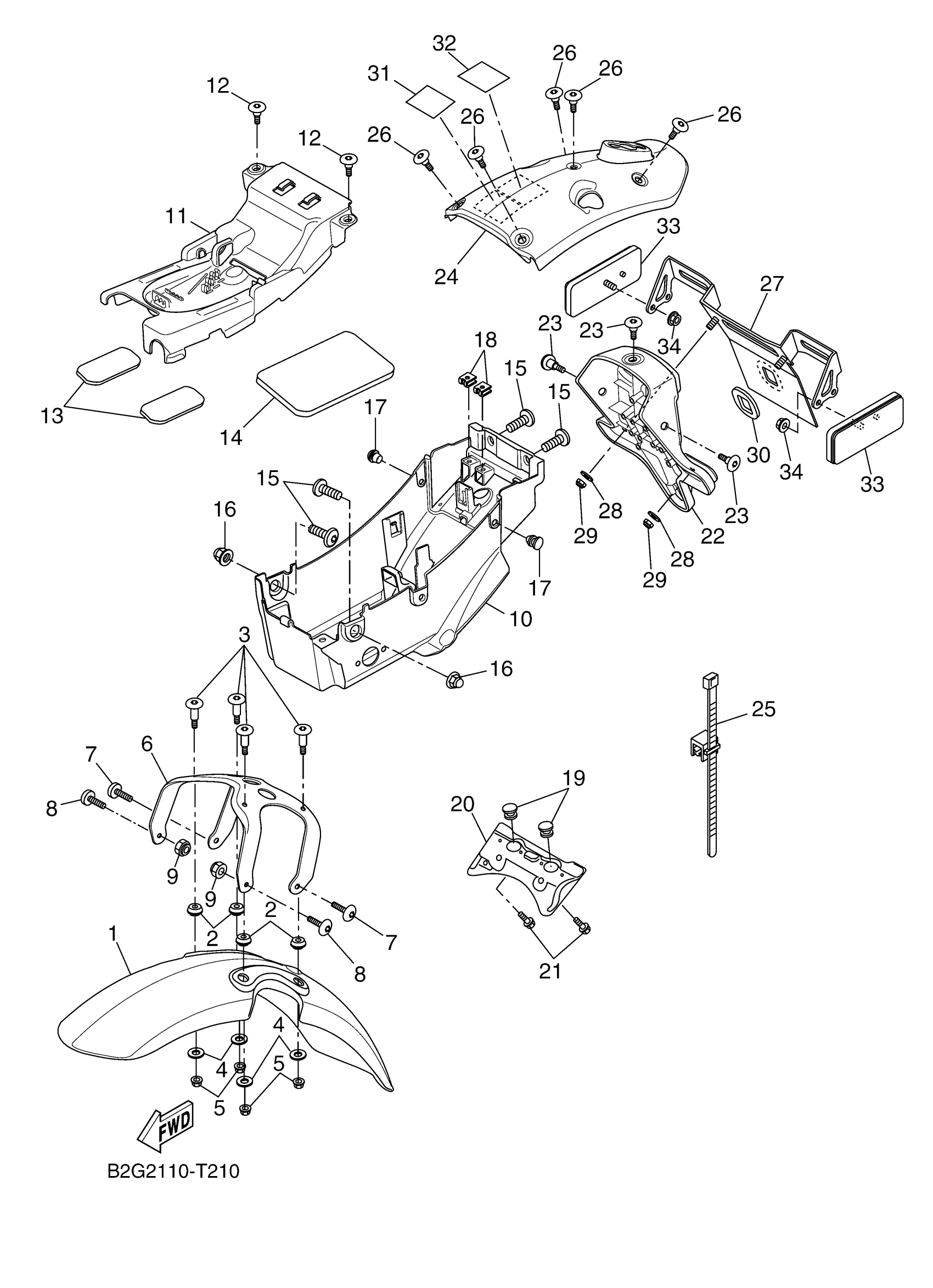

Yamaha XSR700JR (XSR700) B2G20 2018 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

B2G-21511-00-P0

Unavailable

2

COLLAR 1

B2G-21544-00-00

$4.81

3

BOLT,HEX. SOCKET BUTTON

90111-06123-00

$2.93

4

WASHER PLATE 137241870000

90201-06072-00

$5.98

5

NUT, U FLANGE

95604-06200-00

$2.19

6

BRACKET FENDER

B34-F1512-00-00

Unavailable

7

BOLT

90111-06038-00

$3.22

8

SCREW(4DN)

90149-06302-00

Unavailable

9

NUT, SELF-LOCKING

90185-06M07-00

$2.71

10

BOX BATTERY 1

B34-H212B-00-00

$109.05

11

COVER, BATTERY

B34-H2129-01-00

$89.18

12

BOLT

90111-05011-00

$4.07

13

DAMPER

B2G-21649-00-00

Unavailable

14

DAMPER 2

1WS-21639-00-00

$5.20

15

BOLT

90109-06325-00

Unavailable

16

NUT, CROWN

90176-06008-00

Unavailable

17

PLUG(1NL)

90338-07180-00

Unavailable

18

NUT, SPRING(47R)

90183-04039-00

Unavailable

19

GROMMET 285216390000

90480-14100-00

Unavailable

20

GUARD, FLAP

1WS-21642-01-00

Unavailable

21

RIVET

90269-06002-00

Unavailable

22

BRACKET LICENSE

B34-F1685-00-00

Unavailable

23

BOLT

90111-05011-00

$4.07

24

COVER, REAR FENDER

B2G-21651-00-P1

Unavailable

25

CLAMP

90464-45005-00

Unavailable

26

BOLT

90111-05011-00

$4.07

27

BRACKET, LICENSE

B2G-84751-00-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

NUT, SELF-LOCKING

95617-06100-00

Unavailable

30

DAMPER 2

B2G-21639-00-00

Unavailable

31

PLATE, ROUTING

34B-21684-00-00

Unavailable

32

PLATE, ROUTING 2

4B5-21686-01-00

Unavailable

33

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

34

NUT, FLANGE

95702-05500-00

Unavailable
