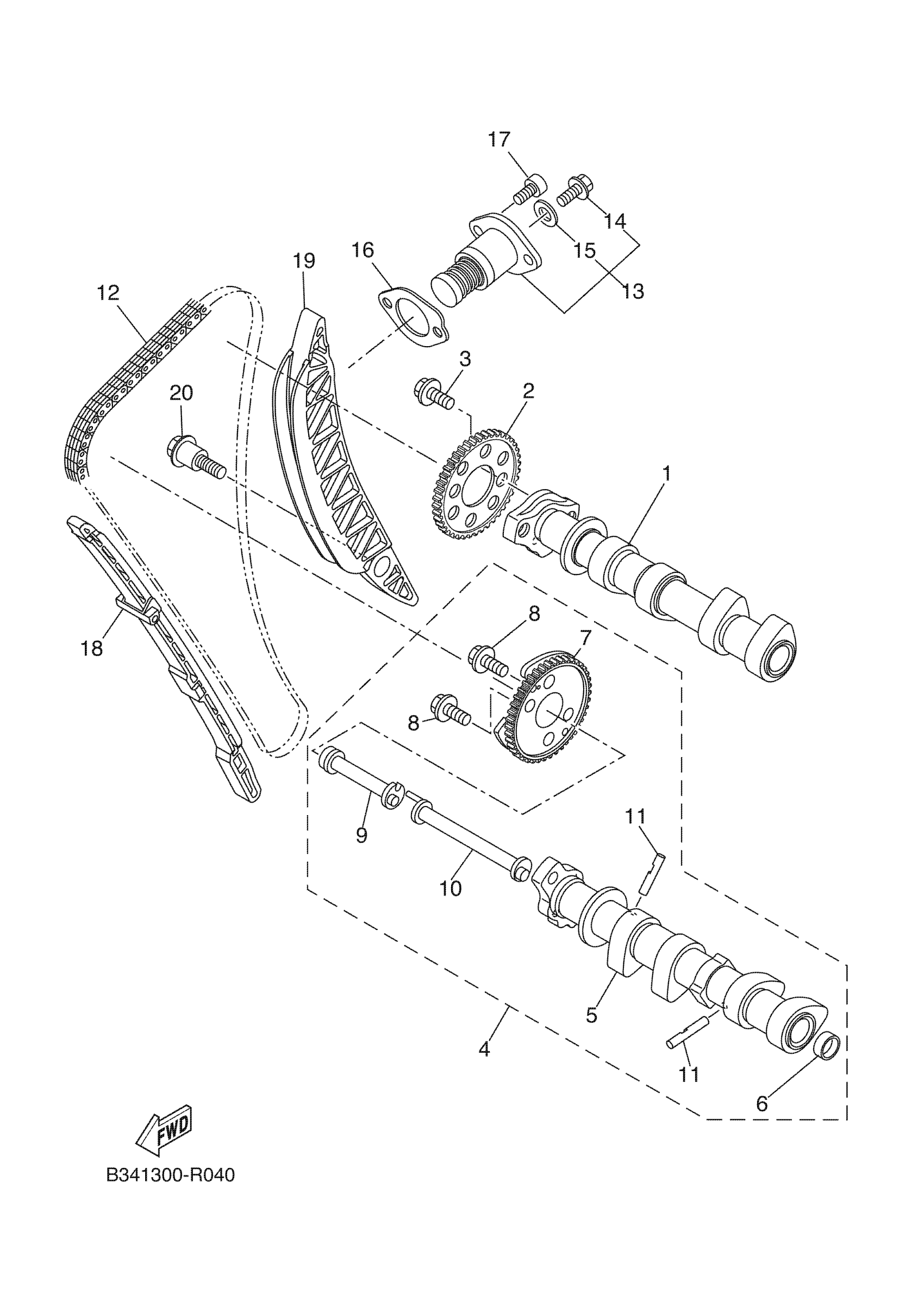

Yamaha XSR700JR (XSR700) B2G20 2018 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1WS-12170-00-00

$246.99

2

SPROCKET, CAM CHAI

BAT-12176-00-00

$57.99

3

BOLT, FLANGE

90105-07006-00

$8.49

4

CAMSHAFT ASSY 2

1WS-12180-00-00

$674.99

5

CAMSHAFT 2

1WS-12181-00-00

Unavailable

6

PLUG

90331-16001-00

Unavailable

7

DECOMPRESSION ASSY

1WS-12280-00-00

$270.99

8

BOLT, FLANGE

90105-07006-00

$8.49

9

SHAFT, TENSIONER

1WS-12247-00-00

$149.99

10

SHAFT 2

1WS-12257-00-00

$152.99

11

CAM, DECOMPRESSION

1PD-12288-00-00

Unavailable

12

CHAIN

94591-61134-00

$46.99

13

TENSIONER ASSY, CAM CHAIN

1WS-12210-02-00

$198.99

14

BOLT

5EL-12228-00-00

$5.49

15

GASKET

5SL-12214-00-00

$7.99

16

GASKET, TENSIONER

1WS-12213-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

18

DAMPER, CHAIN 1

1WS-12251-00-00

Unavailable

19

DAMPER, CHAIN 2

1WS-12252-00-00

Unavailable

20

BOLT

90109-06297-00

Unavailable
