TRANSMISSION

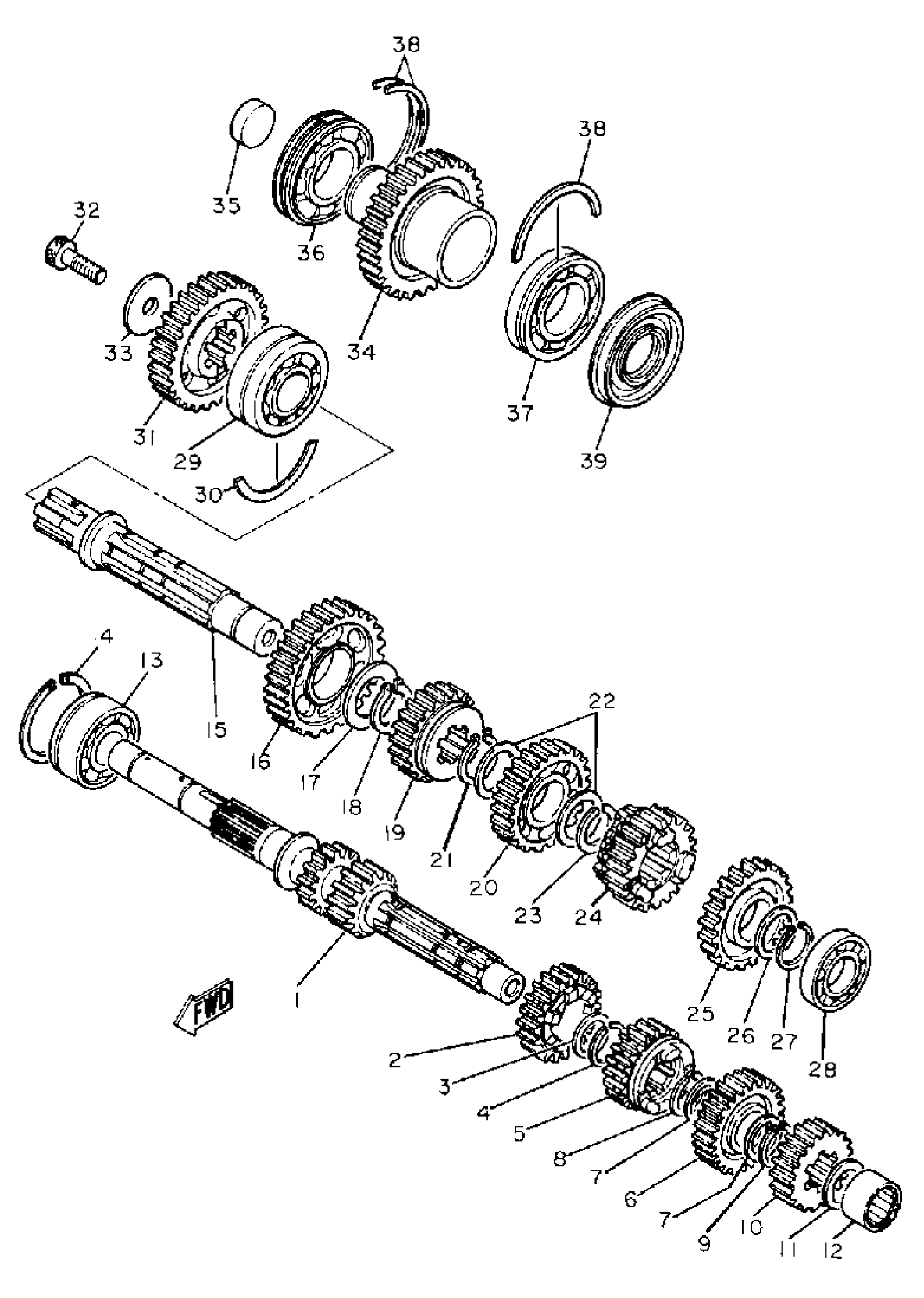

Yamaha XS850SH (XS850S) 1981 TRANSMISSION Diagram
#
1
AXLE, MAIN
(3J2-17411-01-00)
Unavailable
2
GEAR, 4TH PINION
(3J2-17141-00-00)
Unavailable
5
GEAR, 3RD PINION
3J2-17131-00-00
Unavailable
6
GEAR, 5TH PINION
1J7-17151-04-00
Unavailable
10
GEAR, 2ND PINION
256-17121-01-00
Unavailable
11
SHIM 1
(137-17427-00-09)
Unavailable
12
BEARING, CYLINDER.#11
93311-32024-00
Unavailable
13
BEARING(89A)
93305-20509-00
Unavailable
15
AXLE, DRIVE
(3J2-17421-00-00)
Unavailable
16
GEAR, 1ST WHEEL (32T)
3J2-17211-01-00
Unavailable
17
WASHER, PLATE
90201-30398-00
Unavailable
18
CIRCLIP(4A6)
99009-30400-00
Unavailable
19
GEAR, 4TH WHEEL
1J7-17241-03-00
Unavailable
20
GEAR, 3RD WHEEL
1J7-17231-03-00
Unavailable
21
CIRCLIP(4A6)
99009-30400-00
Unavailable
22
WASHER (3J3)
90209-27192-00
Unavailable
23
CIRCLIP (3J3)
93440-30077-00
Unavailable
24
GEAR, 5TH WHEEL
1J7-17251-03-00
Unavailable
25
GEAR, 2ND WHEEL (27T)
3J2-17221-00-00
Unavailable
27
CIRCLIP(JF7)
99009-25400-00
Unavailable
28
BEARING (B6205Z)
93306-20538-00
Unavailable
29
BEARING
93305-20603-00
Unavailable
30
CIRCLIP, OUTER
(93440-62046-00)
Unavailable
31
GEAR, MIDDLE DRIVE
(3J2-17582-00-00)
Unavailable
32
BOLT (4W3)
90105-10186-00
Unavailable
33
WASHER, PLATE
90201-10595-00
Unavailable
34
GEAR, MIDDLE DRIVEN
(3J2-17583-00-00)
Unavailable
35
PLUG, TIGHT
90331-27013-00
Unavailable
36
. BEARING
93306-20705-00
Unavailable
37
. BEARING
93306-20705-00
Unavailable
38
CIRCLIP (1J7)
93440-72049-00
Unavailable
39
OIL SEAL, SW-TYPE
93103-35105-00
Unavailable
