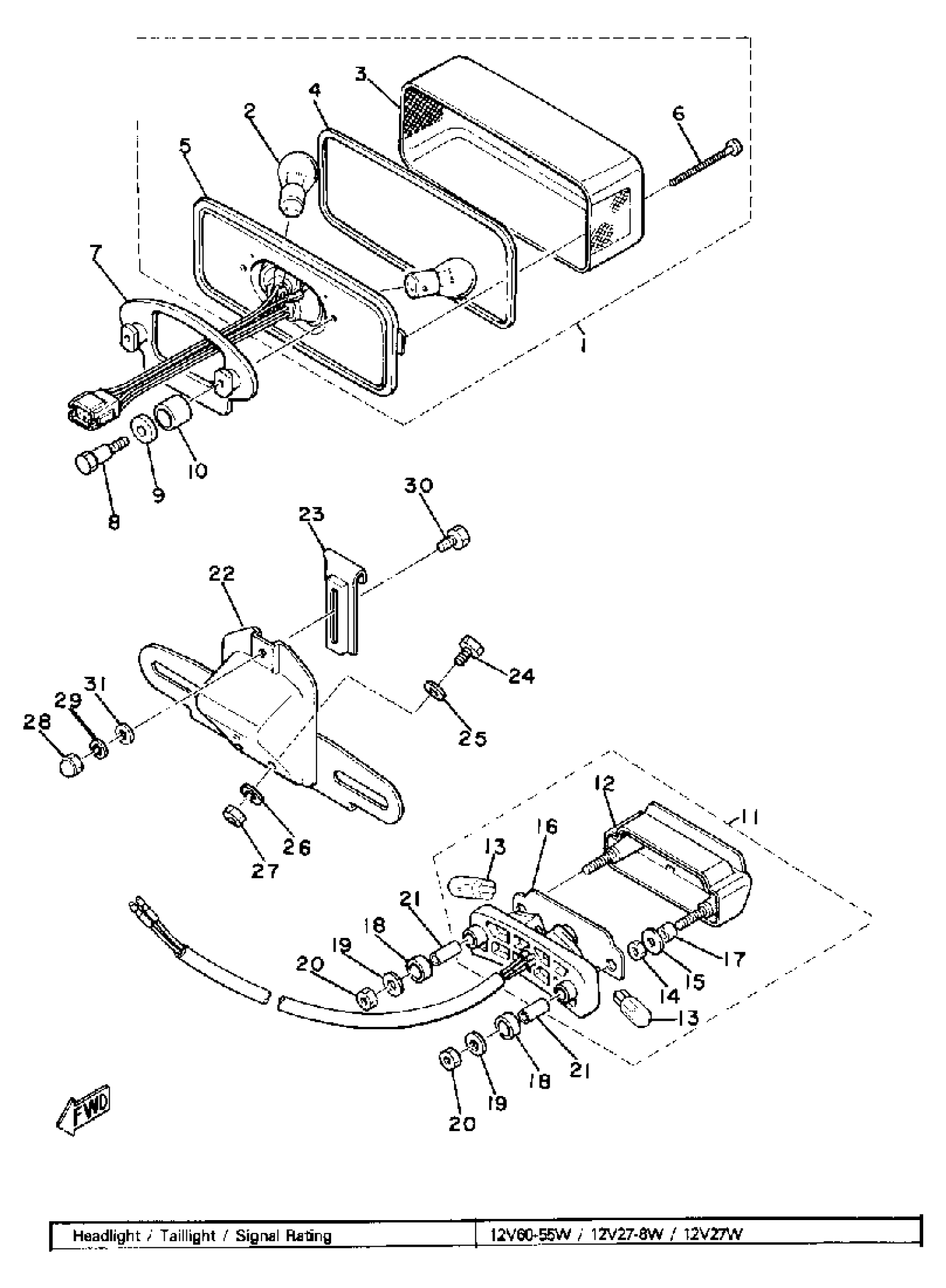

Yamaha XS850SH (XS850S) 1981 TAILLIGHT Diagram

#

Description

Price

1

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, TAILLIGHT

1A8-84721-61-00

Unavailable

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

SEAT, BASE

3G1-84712-00-00

Unavailable

8

BOLT

90109-06548-00

Unavailable

9

WASHER, SPECIAL

2H7-84754-00-00

$10.99

10

SEAT, BASE

3G1-84712-60-00

Unavailable

11

LICENSE LITE ASSEMBLY

(3J2-84745-61-00)

Unavailable

12

BODY, LICENCE LIGHT

(3J2-84749-01-00)

Unavailable

13

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

14

NUT, HEXAGON SMALL

95317-05700-00

$8.49

15

WASHER, SPECIAL

3J2-84754-00-00

$0.99

16

WASHER

(3J2-84772-00-00)

Unavailable

17

COLLAR, LCNSE BRKT

(3J2-84757-00-00)

Unavailable

18

GROMMET

(3J2-84759-00-00)

Unavailable

19

WASHER PLATE 829771780000

90201-05033-00

Unavailable

20

NUT, HEXAGON (663)

95380-05600-00

Unavailable

21

COLLAR

(3J2-84557-00-00)

Unavailable

22

BRACKET, LICENSE

3J2-84751-00-93

Unavailable

23

STOPPER, NO PLATE

(3J2-84750-00-93)

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

NUT, HEXAGON

95380-06600-00

Unavailable

28

NUT (J17)

95380-06800-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

BOLT (661)

97013-06012-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable
