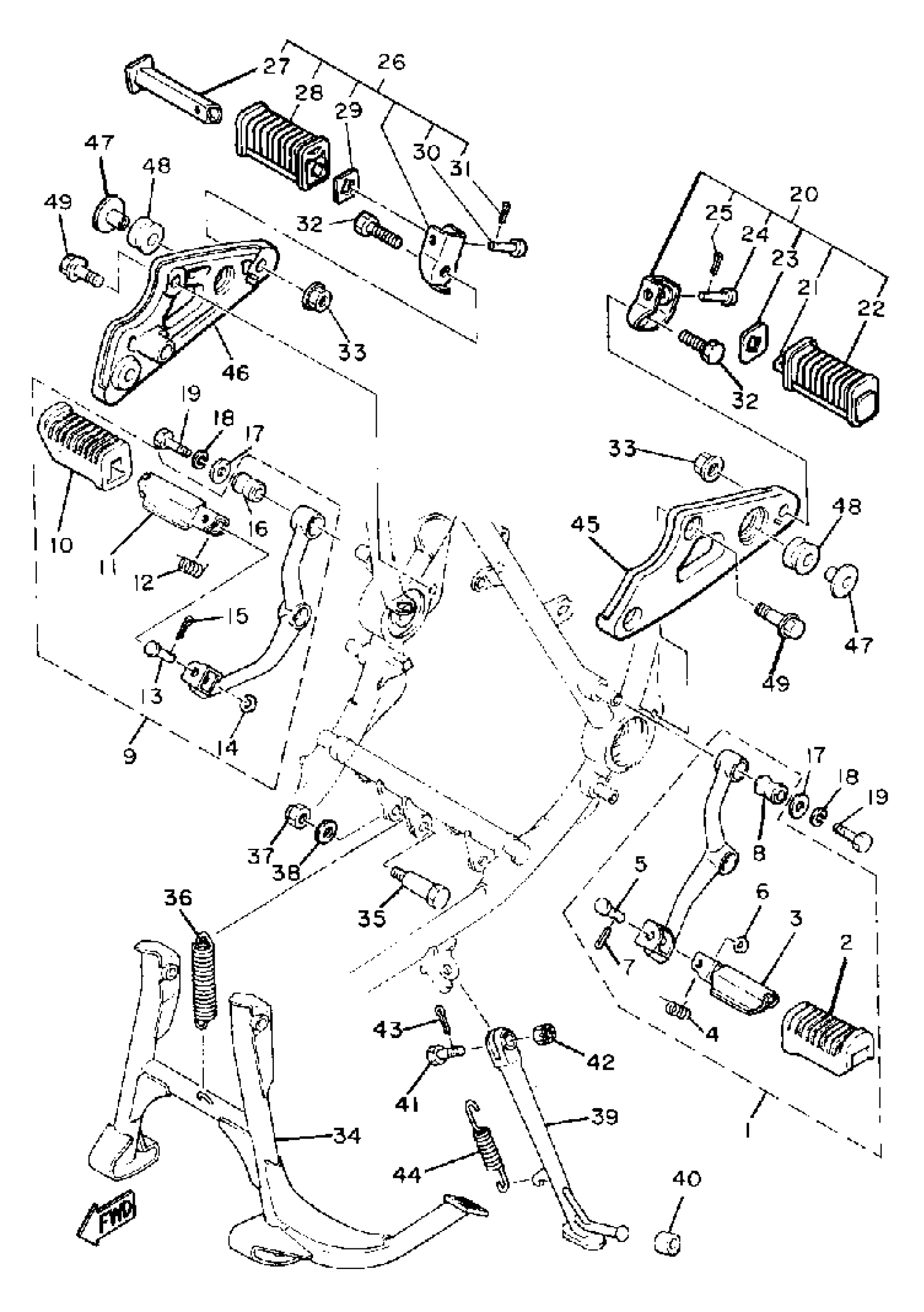

Yamaha XS850SH (XS850S) 1981 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

2G2-27410-00-00

Unavailable

2

COVER, FOOTREST

4L0-27423-00-00

$49.99

3

FOOTREST

1J7-27451-00-00

Unavailable

4

. SPRING, TORSION

90508-20154-00

Unavailable

5

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

6

WASHER, PLATE 1562722600

90201-08083-00

$9.49

7

PIN COTTER

91490-30025-00

$3.99

8

DAMPER, FOOTREST

256-27414-00-00

Unavailable

9

FRT FOOTREST ASSEMBLY R

2G2-27420-00-00

Unavailable

10

COVER, FOOTREST

4L0-27423-00-00

$49.99

11

. FOOTREST

1J7-27461-00-00

Unavailable

12

SPRING TORSION 371274560000

90508-20155-00

$9.49

13

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

PIN COTTER

91490-30025-00

$3.99

16

DAMPER, FOOTREST

256-27414-00-00

Unavailable

17

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

BOLT, HEXAGON

97017-08016-00

Unavailable

20

RR FOOTREST ASSEMBLY 1

3J2-27430-00-00

Unavailable

21

FOOTREST, REAR 1

447-27431-00-00

Unavailable

22

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

23

WASHER 447274370000

90209-18070-00

Unavailable

24

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

25

PIN, COTTER

91490-16020-00

Unavailable

26

RR FOOTREST ASSEMBLY 2

3J2-27440-00-00

Unavailable

27

FOOTREST, REAR 2

447-27441-00-00

Unavailable

28

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

29

WASHER 447274370000

90209-18070-00

Unavailable

30

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

31

PIN, COTTER

91490-16020-00

Unavailable

32

BOLT(6TD)

97017-10025-00

Unavailable

33

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

34

STAND, MAIN

3J2-27111-02-00

Unavailable

35

BOLT

90109-10563-00

Unavailable

36

SPRING, TENSION

90506-40145-00

Unavailable

37

NUT, U

95617-10100-00

Unavailable

38

WASHER, PLATE

92990-10600-00

Unavailable

39

STAND, SIDE

(2G2-27311-01-00)

Unavailable

40

STOPPER

3J3-27314-00-00

Unavailable

41

BOLT, HEXAGON (278-2731700)

90102-10006-00

Unavailable

42

NUT,CASTLE

90171-10049-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

SPRING, TENSION (1J7)

90506-28146-00

Unavailable

45

BRACKET, FOOTREST 1

(3J2-27412-01-00)

Unavailable

46

BRACKET, FOOTREST 2

(3J2-27422-01-00)

Unavailable

47

COLLAR

90387-104A7-00

Unavailable

48

UNAVAILABLE IN PRICE BOOK

3J2-24714-00-00

Unavailable

49

BOLT (4W3)

90105-10186-00

Unavailable
