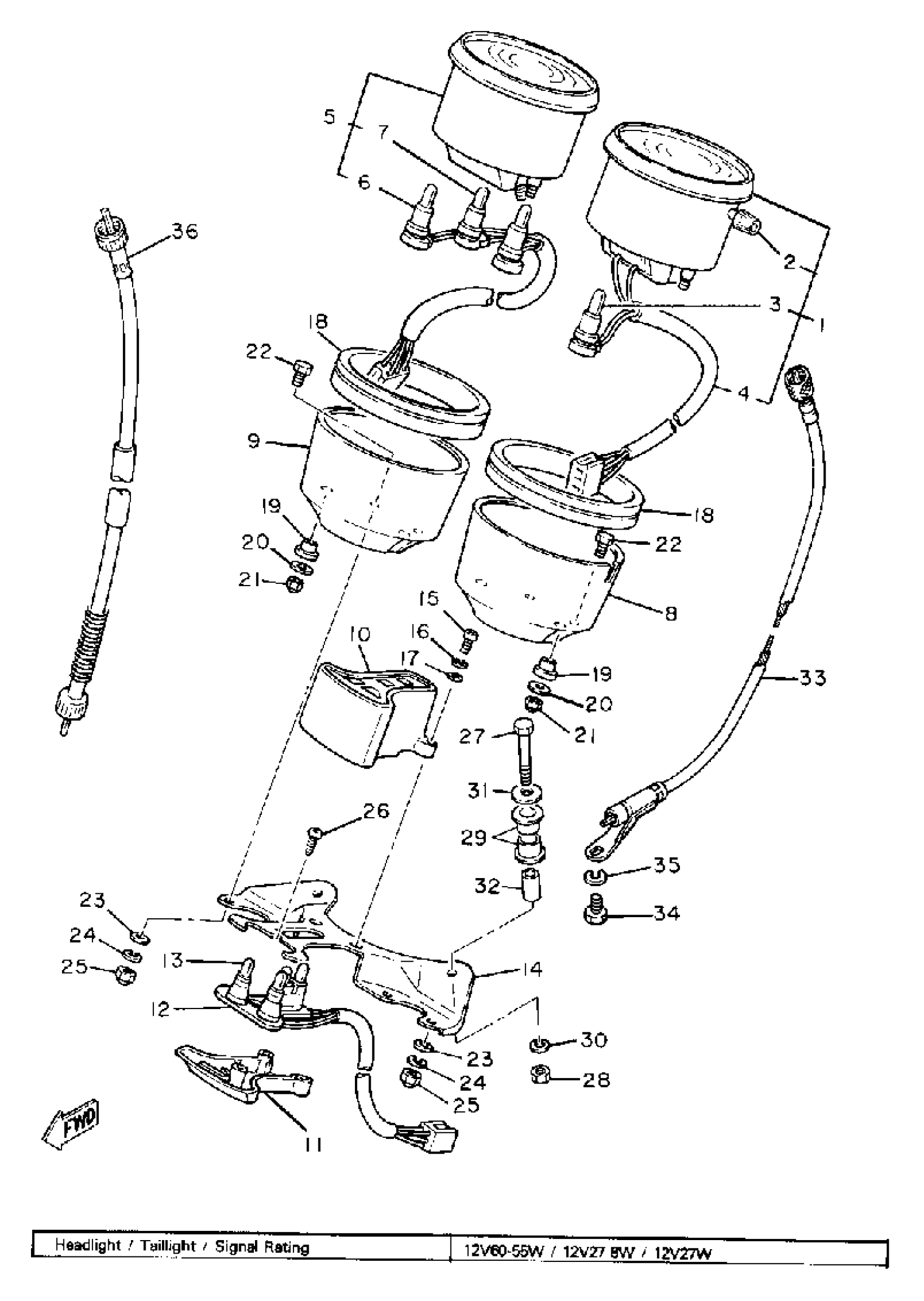

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha XS850S (XS850SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS850S (XS850SH) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

2

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

5

TACHOMETER ASSEMBLY

(3V0-83540-F0-00)

1
Out of stock

6

SOCKET CORD ASSEMBLY

(3J2-83520-01-00)

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

COVER, SPEEDOMETER

2J2-83507-00-00

1
Out of stock

9

COVER, TACHOMETER

2J2-83508-00-00

1
Out of stock

10

PILOT BOX, UPPER

3J6-83568-A0-00

1
Out of stock

11

PILOT BOX, LOWER

3J6-83569-A0-00

1
Out of stock

12

SOCKET CORD ASSEMBLY

3J6-83509-01-00

1
Out of stock

13

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

14

BRACKET, METER

3J6-83519-00-00

1
Out of stock

15

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

16

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

17

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

18

DAMPER

3H3-83513-00-00

—
Out of stock

19

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

20

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

21

NUT (CROWN)

95303-05800-00

1
Out of stock

22

BOLT

584-83546-00-00

—
Out of stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT (J17)

95380-06800-00

—

$6.74

In stock

26

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

27

BOLT(8BC)

97017-06040-00

—
Out of stock

28

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

29

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

32

COLLAR (877)

90387-06249-00

—
Out of stock

33

SPEEDOMETER CABLE

5K5-83550-00-00

1
Out of stock

34

SCREW, HEXAGON

90153-06004-00

1
Out of stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

TACHOMETER CABLE

3J3-83560-00-00

1
Out of stock
