Headlight

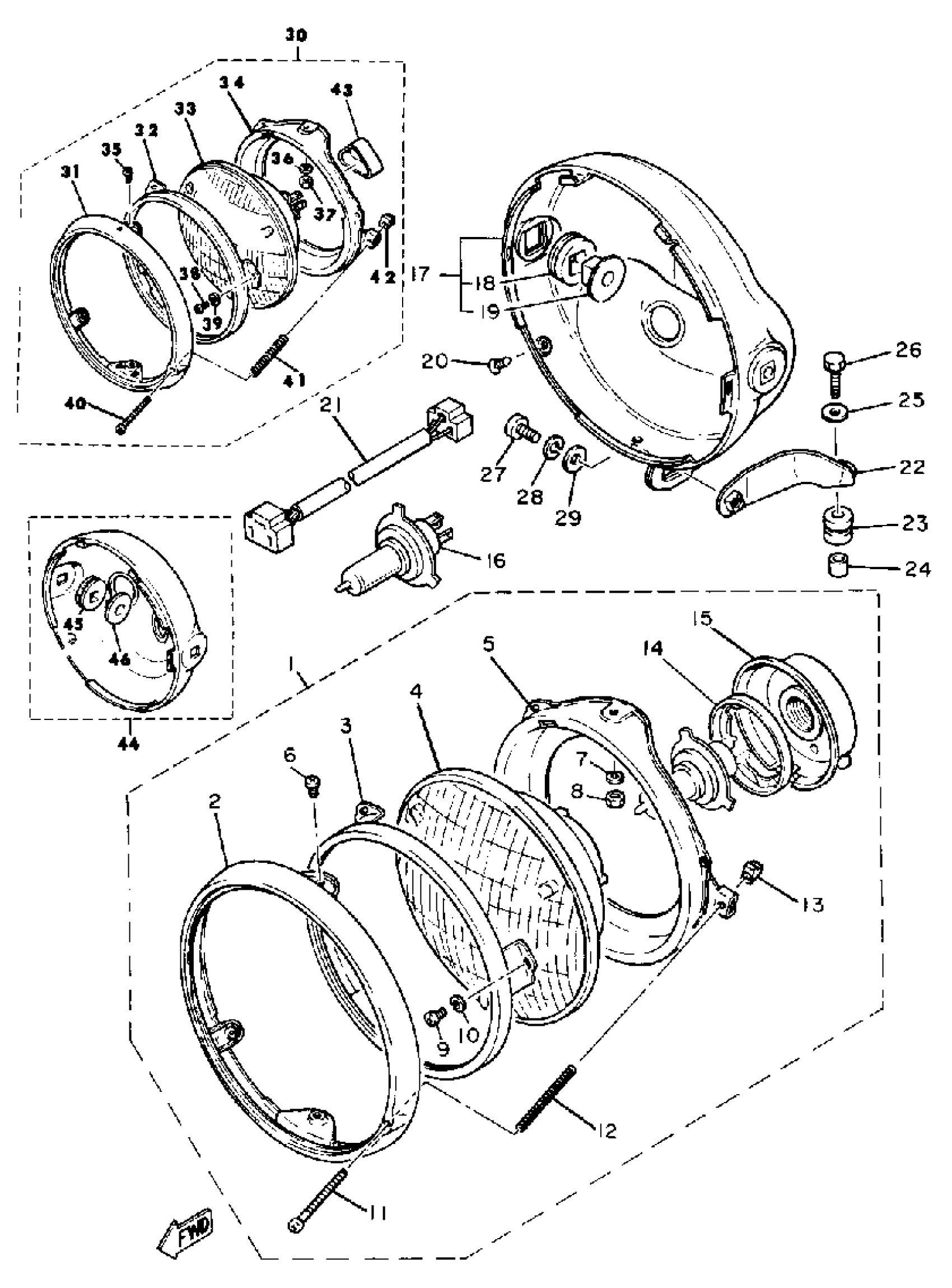

1981 Yamaha XS850S (XS850SH) Headlight Diagram
Find the part on the Headlight diagram for your 1981 Yamaha XS850S (XS850SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HEAD LAMP UNIT ASSY
2F3-84303-A0-00
2
RIM, HEAD LAMP
341-84315-40-00
3
RING, RETAINING
2F9-84395-00-00
4
LENS ASSY
2F3-84321-A0-00
5
RING, MOUNTING
2F9-84394-00-00
7
YBS67-5 WASHER, SPRING
92990-05100-00
16
BULB, HEADLIGHT
8V0-84314-10-00
17
BODY ASSEMBLY
3J6-84330-00-93
18
DAMPER, HEAD LAMP
584-84345-60-00
19
COLLAR 2
584-84338-60-00
21
CORD, HEADLIGHT
2H7-84359-00-00
22
STAY, HEADLIGHT 1
3H3-84318-00-00
30
HEADLIGHT UNIT ASSEMBLY
2J2-84310-60-00
31
RIM, HEAD LAMP
341-84315-40-00
32
RING, RETAINING
2F9-84395-00-00
33
. LENS ASSEMBLY
341-84320-60-00
34
RING, MOUNTING
2F9-84394-00-00
36
YBS67-5 WASHER, SPRING
92990-05100-00
43
. COVER, SOCKET
341-84397-61-00
44
BODY ASSEMBLY
2G2-84330-00-93
45
DAMPER, HEAD LAMP
584-84345-60-00
46
COLLAR 2
584-84338-60-00
