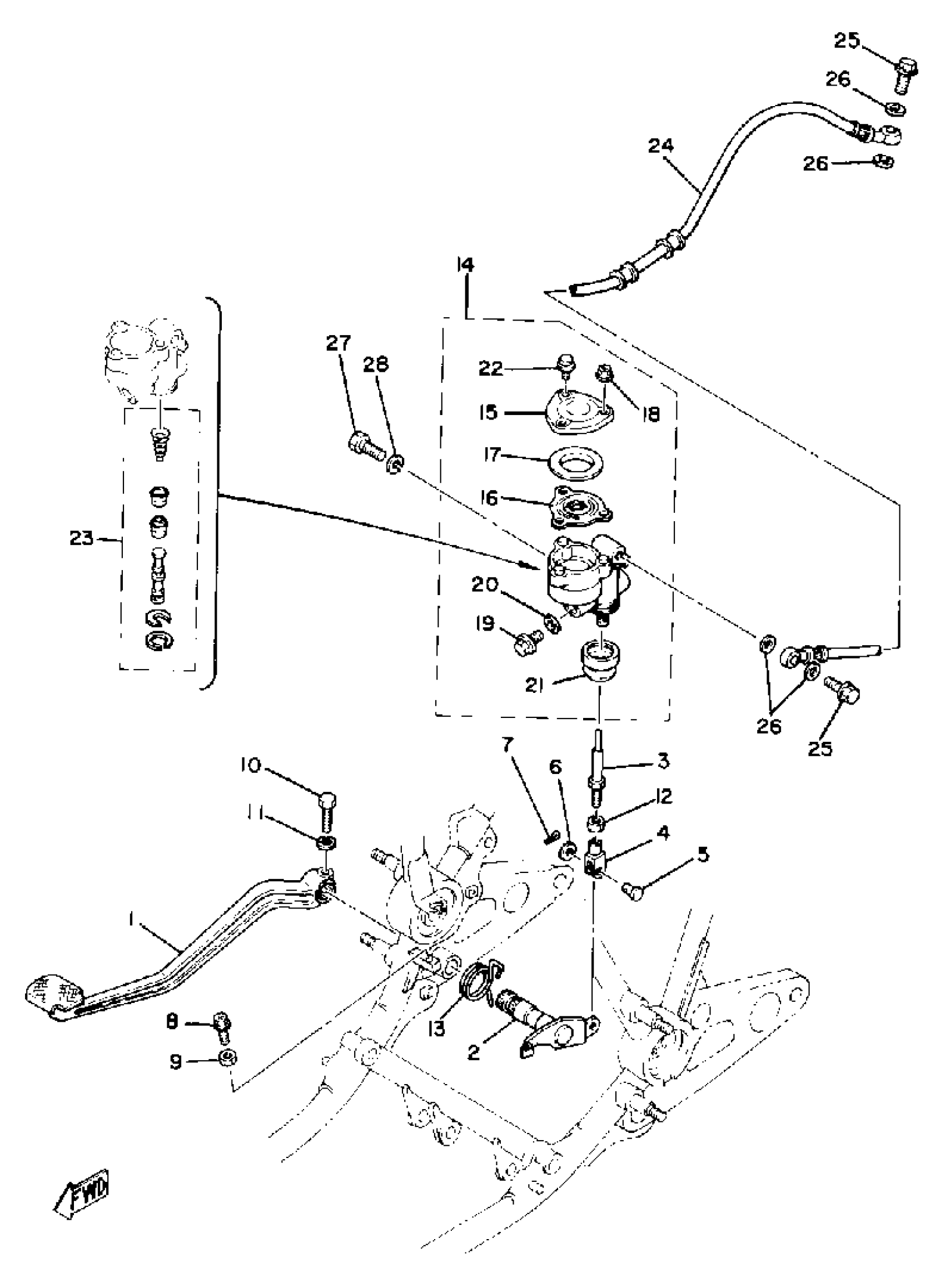

Yamaha XS850SH (XS850S) 1981 REAR MASTER CYLINDER Diagram

#

Description

Price

1

PEDAL, BRAKE

2G2-27211-00-00

Unavailable

2

SHAFT, BRAKE PEDAL

(3J2-27212-00-00)

Unavailable

3

ROD, BRAKE

(3J2-27231-00-00)

Unavailable

4

JOINT

47X-27222-00-00

Unavailable

5

PIN W/HOLE 307181180000

90240-08013-00

$8.49

6

WASHER, PLATE 1562722600

90201-08083-00

$9.49

7

PIN, COTTER

91490-16020-00

Unavailable

8

SCREW, HEXAGON

(90153-06028-00)

Unavailable

9

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

10

BOLT (1J7)

90109-06468-00

$7.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

. NUT

95380-08700-00

Unavailable

13

SPRING, TORSION

(90508-45405-00)

Unavailable

14

MSTR CYLINDER ASSEMBLY

1J7-25850-52-00

Unavailable

15

. CAP, RESERVOIR

1J3-25852-52-00

Unavailable

16

. DIAPHRAGM RESERVOR

1J3-25854-51-00

Unavailable

17

. BUSH, DIAPHRAGM

1J3-25855-51-00

Unavailable

18

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

19

. SCREW, hexagon

90153-10015-00

Unavailable

20

. WASHER, plate

90201-10610-00

Unavailable

21

. BOOT, master cylinder

1J3-25862-51-00

Unavailable

22

. BOLT, WASHER BASED

90105-05129-00

Unavailable

23

CYLINDER KIT, REAR MASTER

1J3-W0042-50-00

Unavailable

24

HOSE, BRAKE

3J3-25874-01-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

BOLT, HEXAGON

97017-08025-00

Unavailable

28

WASHER(JN5)

92907-08100-00

Unavailable
