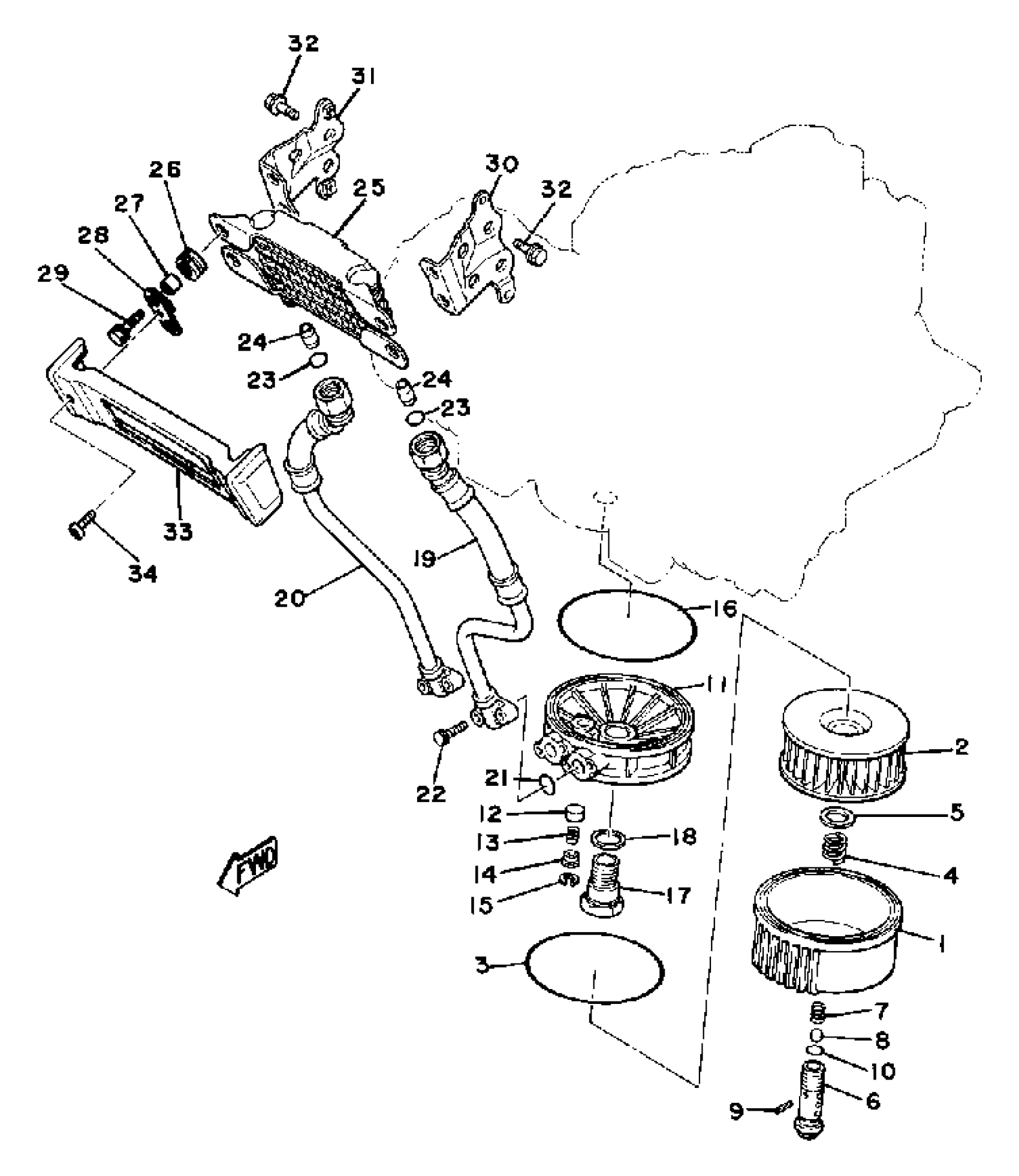

Yamaha XS850SH (XS850S) 1981 OIL COOLER OIL CLEANER Diagram

#

Description
Price

1

COVER, OIL ELEMENT

2H7-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1J7-13441-10-00

$10.99

3

O-RING (3Y2)

93211-19413-00

$15.99

4

SPRING, COMPRESSION (1J7)

90501-18433-00

$5.60

5

WASHER, PLATE (1L9)

90201-21608-00

$8.49

6

BY-PASS VALVE ASSEMBLY

2H7-13340-00-00

Unavailable

7

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

8

BALL, HALF

93501-02018-00

Unavailable

9

PIN,SPRING

91690-20018-00

Unavailable

10

O-RING (1J7)

93210-16314-00

$4.29

11

PLATE, ADAPTOR

4E2-13461-00-00

Unavailable

12

PLUNGER

4KM-13493-00-00

$6.99

13

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

14

WASHER (2H9)

90209-06173-00

$15.99

15

CIRCLIP(24H)

99009-17500-00

$7.49

16

O-RING (3Y2)

93211-19413-00

$15.99

17

BOLT, UNION

90401-20089-00

Unavailable

18

WASHER, PLATE (888)

90201-25526-00

Unavailable

19

HOSE, OIL 1

(3J3-13464-01-00)

Unavailable

20

HOSE, OIL 2

(3J3-13465-01-00)

Unavailable

21

O-RING (2H9)

93210-14369-00

Unavailable

22

BOLT,SOCKET

91317-06025-00

Unavailable

23

O-RING (256)

93210-12152-00

Unavailable

24

PIN, DOWEL

99530-12016-00

Unavailable

25

OIL COOLER ASSEMBLY

(3J3-13470-01-00)

Unavailable

26

OIL COOLER ASSEMBLY

(3J3-13470-01-00)

Unavailable

27

COLLAR

90387-06113-00

Unavailable

28

PLATE

(4R2-13489-00-00)

Unavailable

29

BOLT, FLANGE

95817-06016-00

Unavailable

30

HOLDER, OIL COOLR 1

(3J3-13472-01-00)

Unavailable

31

HOLDER, OIL COOLR 2

(3J3-13482-01-00)

Unavailable

32

BOLT, FLANGE

95817-06010-00

Unavailable

33

CASE, OIL COOLER

4R2-13462-00-00

Unavailable

34

SCREW, BINDING

98907-05016-00

Unavailable
