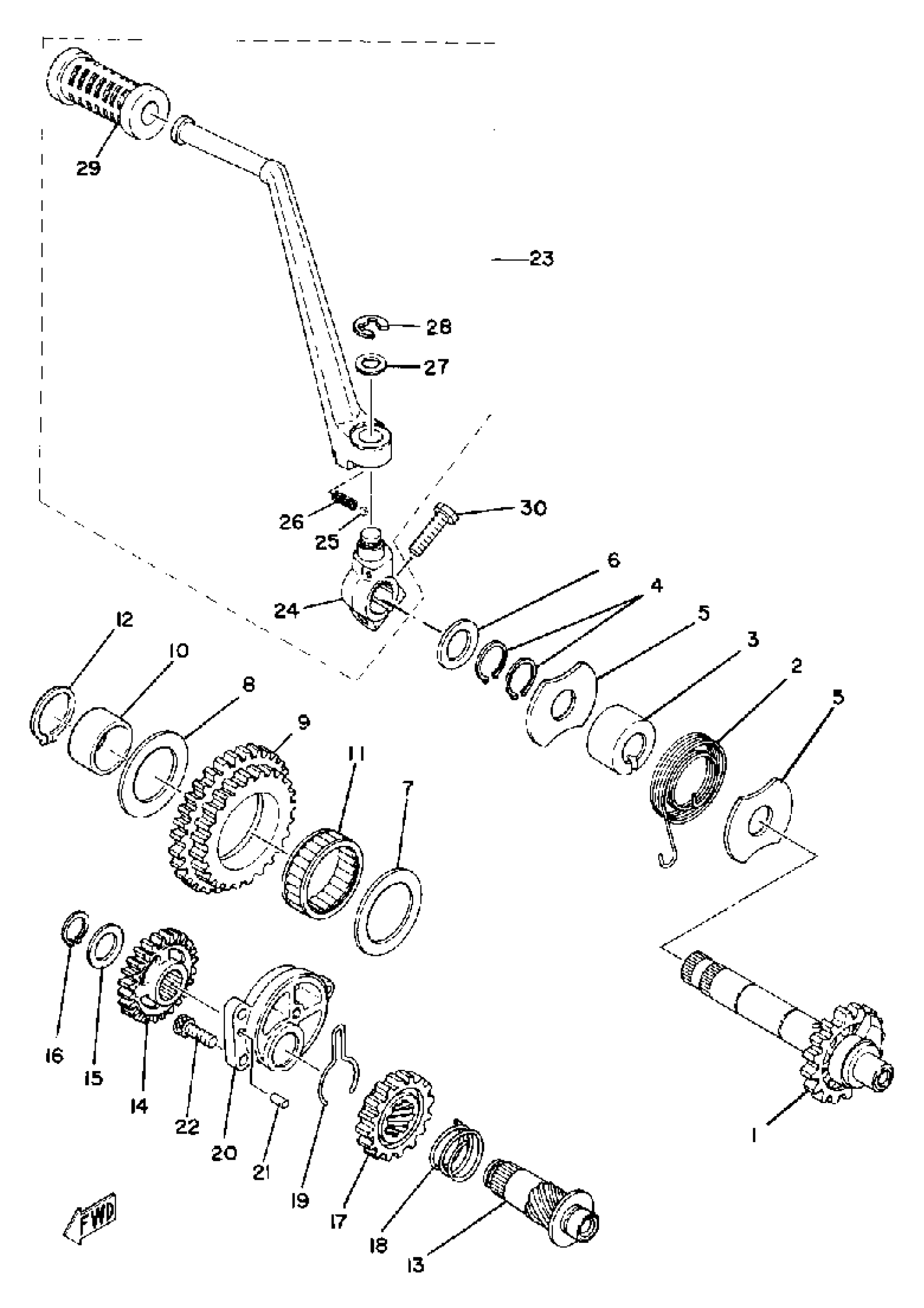

Yamaha XS850SH (XS850S) 1981 KICK STARTER Diagram

#

Description
Price

1

KICK AXLE ASSEMBLY

1J7-15660-00-00

Unavailable

2

SPRING TORSION 278156650000

90508-30051-00

$15.99

3

SPACER

371-15666-00-00

Unavailable

4

CIRCLIP(1AR)

99009-20400-00

$8.49

5

COVER,SPRING

278-15676-00-00

$5.49

6

WASHER, PLATE

90201-20722-00

Unavailable

7

SHIM

(1J7-15644-00-00)

Unavailable

8

SHIM, KICK SHAFT

(1J7-15645-00-00)

Unavailable

9

IDLE GEAR ASSEMBLY

(1J7-15650-00-00)

Unavailable

10

COLLAR

(90387-35544-00)

Unavailable

11

BEARING, CYLINDER.#11

(93311-84026-00)

Unavailable

12

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

Unavailable

13

SHAFT

(1J7-15659-01-00)

Unavailable

14

GEAR 4

(1J7-15516-01-00)

Unavailable

15

SHIM 1

(150-17417-00-10)

Unavailable

16

CIRCLIP(1EY)

99009-17400-00

Unavailable

17

GEAR, KICK 5

1J7-15527-02-00

Unavailable

18

SPRING, COMPRESSION

90501-15469-00

Unavailable

19

CLIP

90468-26066-00

Unavailable

20

HOLDER, KICK GEAR

(1J7-15654-00-00)

Unavailable

21

PIN,DOWEL (603)

93604-10011-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

KICK CRANK ASSEMBLY (168-15621-01)

2G2-15620-00-00

Unavailable

24

BOSS, KICK CRANK

583-15621-00-00

Unavailable

25

BALL (12R)

93507-32031-00

Unavailable

26

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

27

WASHER (3XVC)

90201-153A1-00

Unavailable

28

CIRCLIP

99006-10600-00

Unavailable

29

COVER, KICK LEVER

156-15618-01-00

Unavailable

30

BOLT, HEXAGON

97013-08030-00

Unavailable
