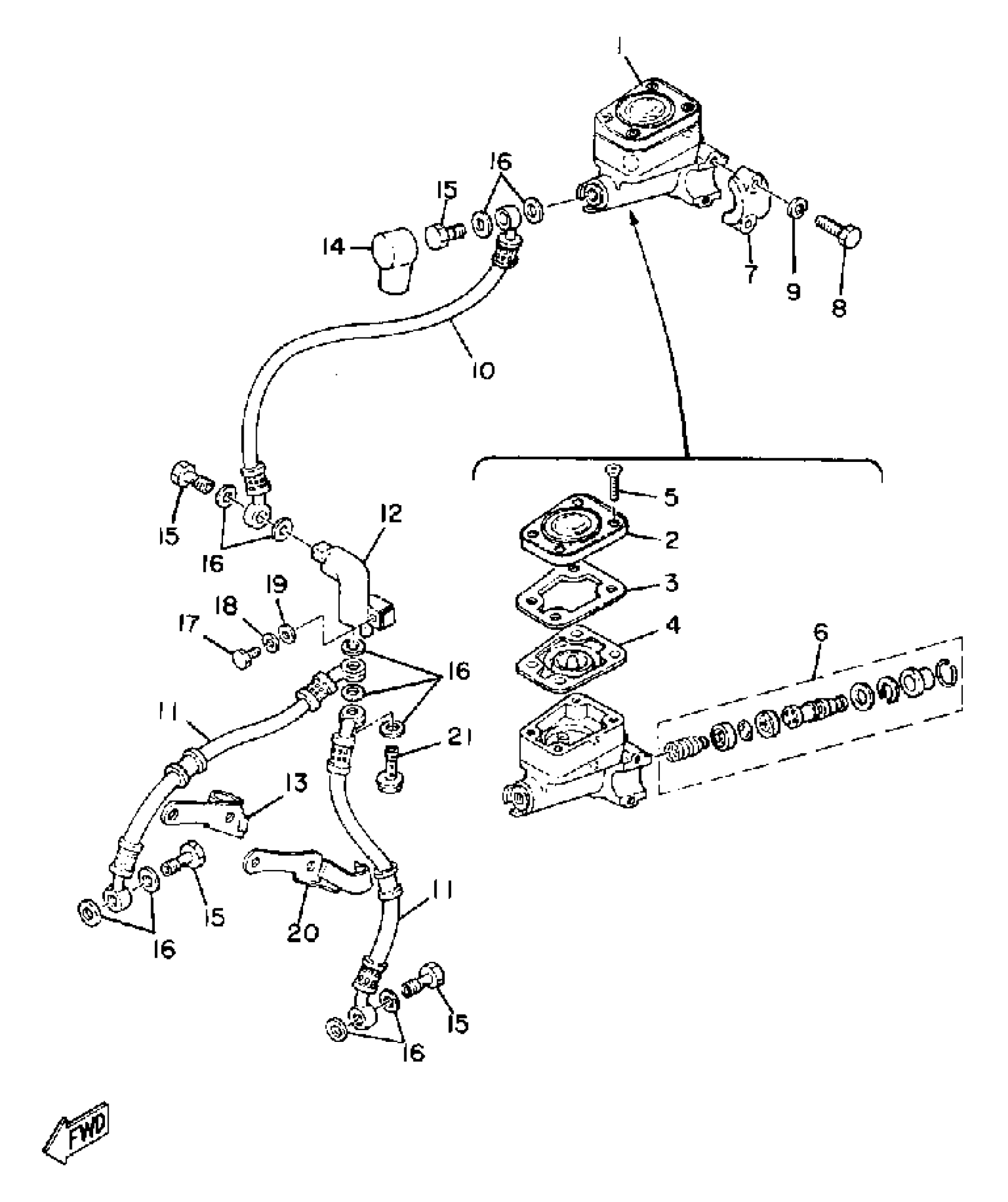

Yamaha XS850SH (XS850S) 1981 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

3J6-25850-00-00

Unavailable

2

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

3

. GASKET

1J3-25855-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

5

. SCREW, FLAT HEAD

98706-05040-00

Unavailable

6

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92907-06100-00

$4.25

10

HOSE, BRAKE 1

2G2-25872-01-00

Unavailable

11

HOSE, BRAKE 2

2G2-25873-01-00

Unavailable

12

JOINT

1J7-25885-01-00

Unavailable

13

HOLDER, BRKE HOSE 1

1J3-25875-02-00

Unavailable

14

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

15

BOLT, UNION(3GM)

90401-10159-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

$4.24

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

HOLDER, BRKE HOSE 2

1J3-25876-02-00

Unavailable

21

BOLT, UNION

90401-10038-00

Unavailable
