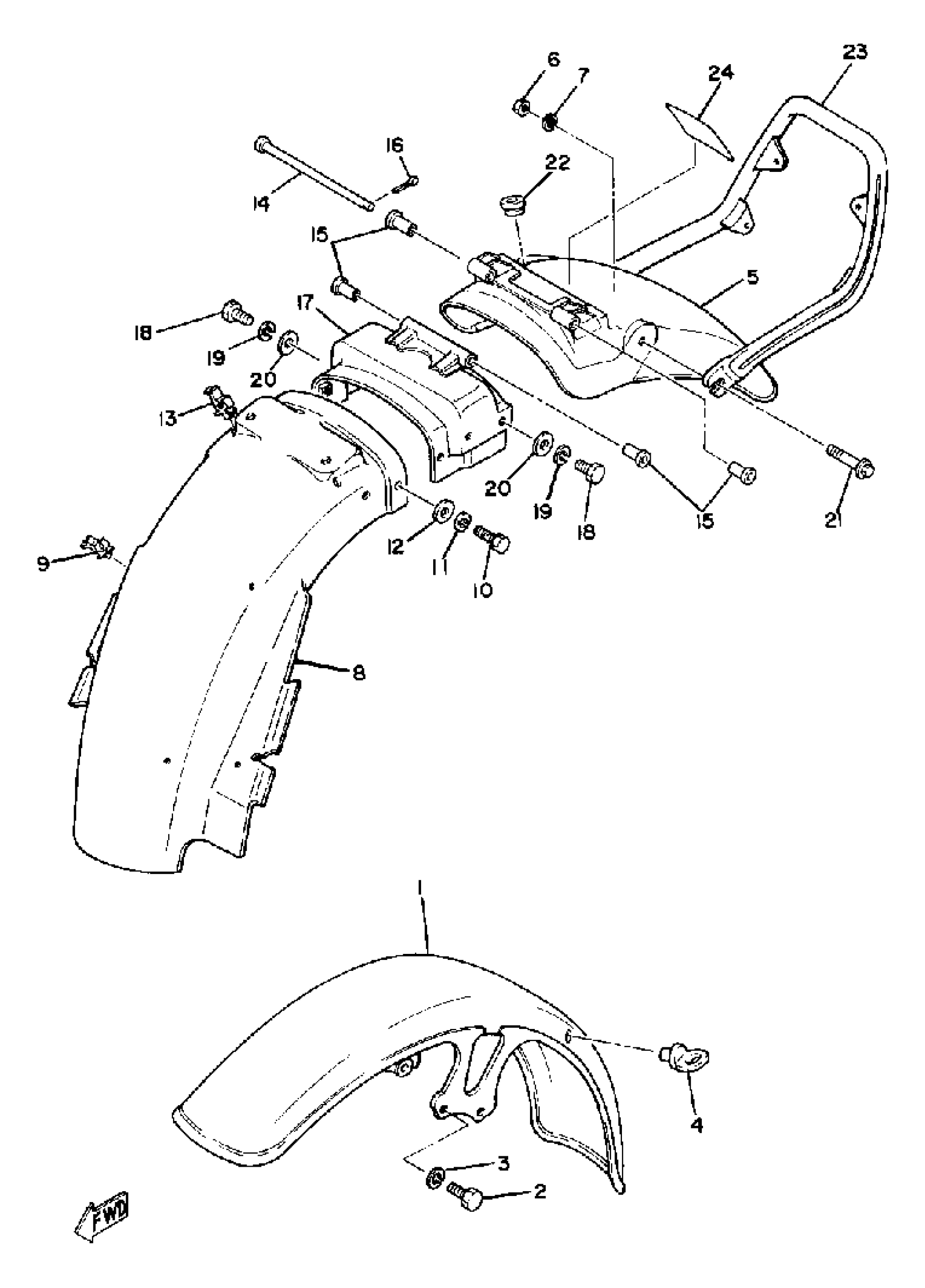

Yamaha XS850SH (XS850S) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3H3-21511-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

3J2-21610-01-93

Unavailable

6

NUT(6L2)

95333-08600-00

$2.49

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

GUARD, MUD

(3J2-21629-01-00)

Unavailable

9

CLAMP (1J7)

90464-16021-00

$12.49

10

BOLT, HEXAGON

97017-06012-00

$3.76

11

WASHER, SPRING

92907-06100-00

$4.25

12

WASHER, PLATE

90201-06M08-00

Unavailable

13

CLAMP (1J7)

90464-16025-00

$9.49

14

PIN, CLEVIS

(91701-06152-00)

Unavailable

15

COLLAR

90387-06159-00

$8.49

16

CLIP (156-83525-00)

90468-10050-00

Unavailable

17

STAY, FENDER 1

(3J3-21613-01-00)

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, SPRING

92907-06100-00

$4.25

20

WASHER(6TA)

92907-06600-00

Unavailable

21

BOLT, FLANGE

95817-08055-00

Unavailable

22

GROMMET(2UJ)

90480-16501-00

Unavailable

23

STAY, REAR

(3J2-21645-00-00)

Unavailable

24

PLATE, SPEC

(4R2-21683-00-00)

Unavailable
