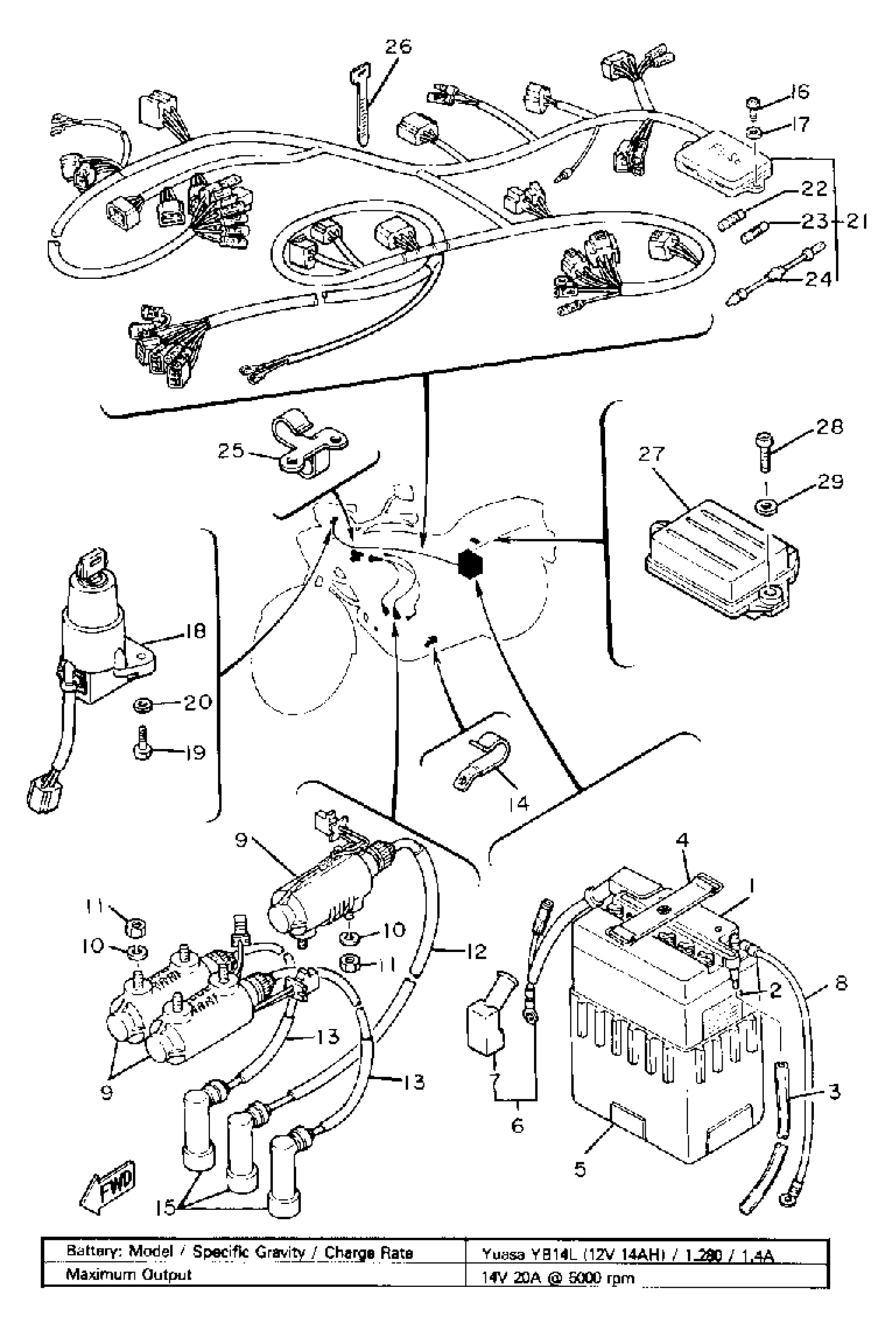

Yamaha XS850SH (XS850S) 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

PIPE, BREATHER

(2G2-82112-00-00)

Unavailable

4

BAND,BATTERY

7H3-82131-00-00

$17.49

5

SEAT, BATTERY

447-82122-00-00

Unavailable

6

WIRE, PLUS LEAD

1J7-82115-00-00

Unavailable

7

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

8

WIRE, MINUS LEAD

1J7-82116-00-00

Unavailable

9

IGNITION COIL ASS''Y

3Y6-82310-60-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

CORD, high tension 2

41R-82342-00-00

Unavailable

13

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

14

CLAMP(4MX)

90465-06376-00

$9.49

15

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

15

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

16

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

WIRE HARNESS ASSEMBLY

(4R2-82590-50-00)

Unavailable

22

FUSE

1A0-82151-00-00

Unavailable

23

FUSE

1A0-82161-00-00

Unavailable

24

RECTIFIER 2

3H5-81980-00-00

Unavailable

25

CLAMP

(2G2-82594-00-00)

Unavailable

26

BAND, SWITCH CORD

437-83936-11-00

Unavailable

27

IGNITOR UNIT ASSEMBLY 1

(4R2-82305-10-00)

Unavailable

28

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

29

WASHER, PLATE

90201-06020-00

Unavailable
