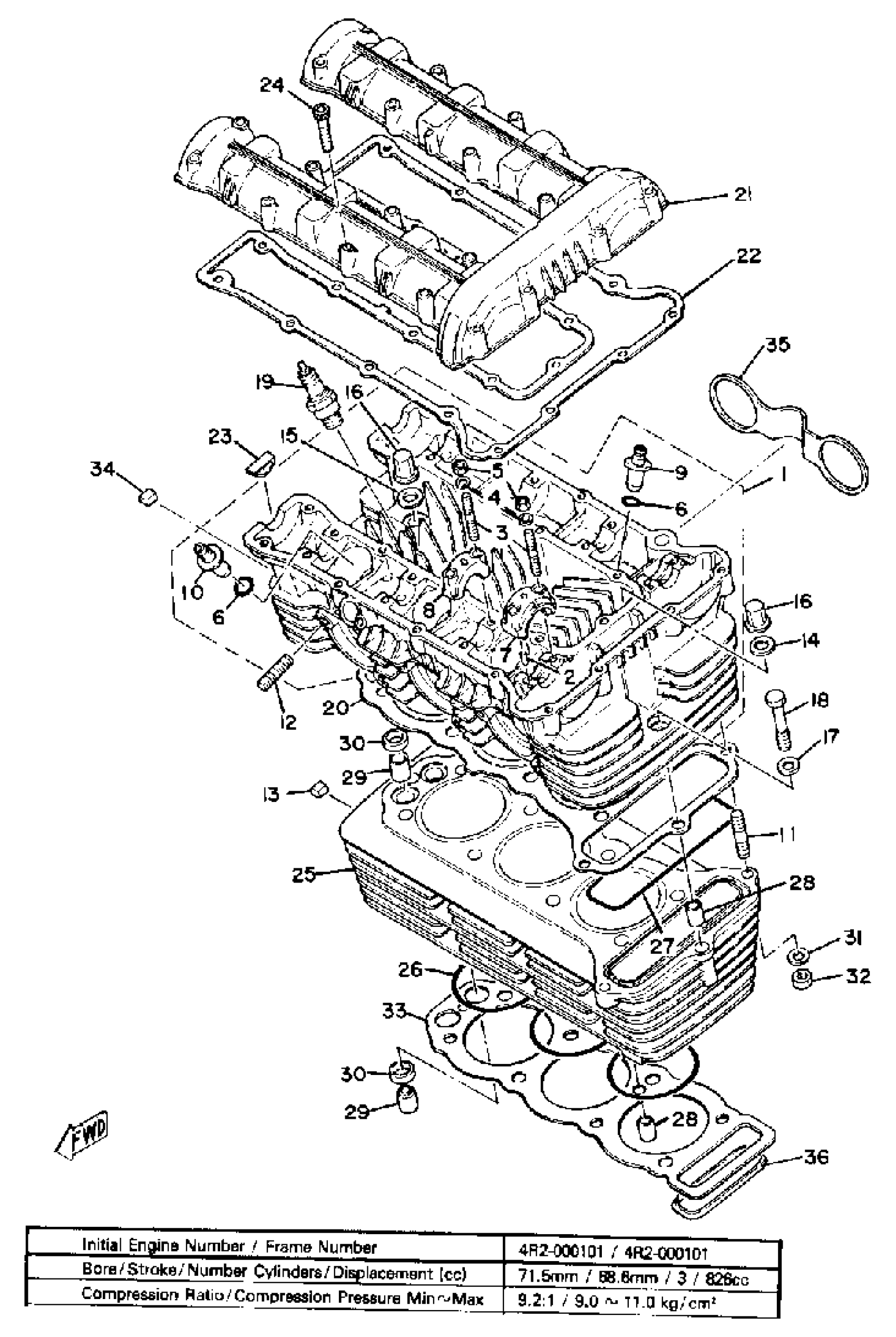

Yamaha XS850SH (XS850S) 1981 CYLINDER HEAD CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(3J2-11110-00-00)

Unavailable

2

. PIN, DOWEL

93603-09004-00

Unavailable

3

BOLT, STUD (1J7)

90116-06228-00

$3.55

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

O-RING (1J7)

93210-11313-00

$8.49

7

. CAP, CAMSHAFT 1

1J7-12173-10-00

Unavailable

8

. CAP, CAMSHAFT 2

1J7-12183-10-00

Unavailable

9

. GDE, INTK VLV 1 O/S

1J7-11133-10-00

Unavailable

10

. GDE, EXST VLV 1 O/S

1J7-11134-10-00

Unavailable

11

BOLT, STUD

90116-08161-00

Unavailable

12

BOLT, STUD

90116-08271-00

Unavailable

13

ABSORBER

434-11161-00-00

Unavailable

14

WASHER, PLATE 3711117500

90201-10124-00

$9.49

15

WASHER PLATE 256111740000

90201-10131-00

$9.49

16

NUT, CROWN(2GG)

90176-10075-00

Unavailable

17

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

18

BOLT

97013-08045-00

Unavailable

19

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

20

GASKET, CYLINDER HEAD 1

3J2-11181-02-00

Unavailable

21

COVER, CYLINDER.HEAD 1

(2G2-11191-00-00)

Unavailable

22

GASKET, CYLINDER HEAD COVER

1J7-11193-10-00

Unavailable

23

PLUG

1J7-11138-00-00

Unavailable

24

BOLT, SOCKET

91314-06035-00

Unavailable

25

CYLINDER

(4R2-11310-00-00)

Unavailable

26

O-RING (2H7)

93210-77363-00

Unavailable

27

SEAL, CYLINDER 1

1J7-11355-00-00

Unavailable

28

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

29

PIN, DOWEL

99530-14016-00

Unavailable

30

SEAL, CYLINDER 3

1J7-11357-00-00

Unavailable

31

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

32

NUT(6TA)

95337-08600-00

Unavailable

33

GASKET,CYLINDER

3J2-11351-10-00

Unavailable

34

ABSORBER

434-11161-00-00

Unavailable

35

NO LONGER AVAILABLE

90465-08120-00

Unavailable

36

SEAL, CYLINDER 2

3J2-11356-00-00

Unavailable
