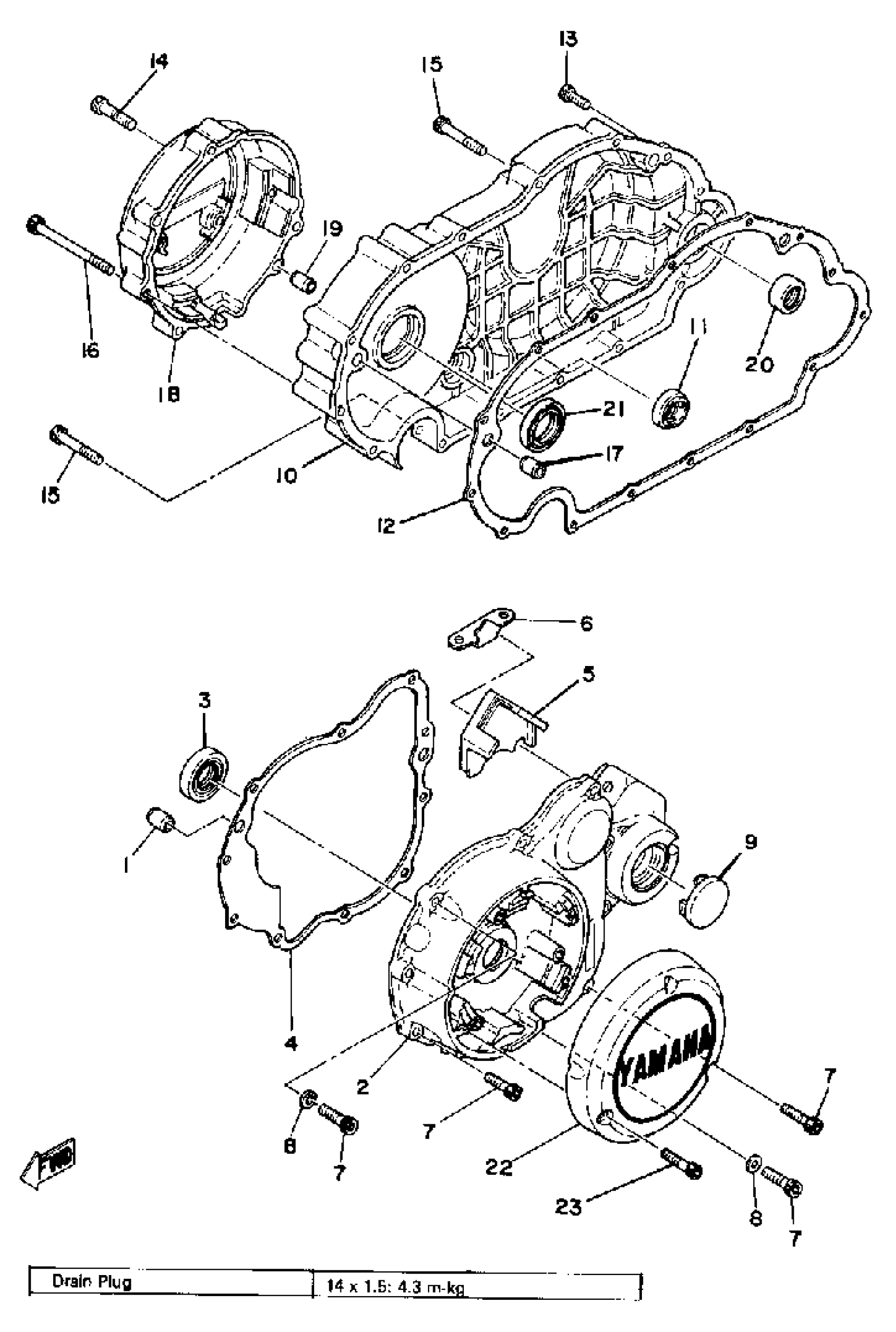

Yamaha XS850SH (XS850S) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

PIN, DOWEL

99530-12016-00

$4.89

2

CRCS COVER ASSEMBLY L

2G2-15410-01-00

Unavailable

3

OIL SEAL, SD-TYPE

93102-24154-00

Unavailable

4

GASKET, CRANKCASE COVER (L.H)

1J7-15461-10-00

Unavailable

5

SEAL, AIR DUCT

1J7-15474-00-00

Unavailable

6

PLATE, DUST SEAL

1J7-15497-00-00

Unavailable

7

BOLT,SOCKET HEAD

91314-06025-00

$8.49

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

COVER, CAP

1J7-15417-02-00

Unavailable

10

COVER, CRANKCASE 3

4H1-15431-00-00

Unavailable

11

GAUGE, LEVEL

2H7-15361-00-00

$97.99

12

GASKET, CRANKCASE COVER (R.H)

1J7-15451-10-00

Unavailable

13

BOLT, SOCKET

91314-06018-00

$7.49

14

BOLT, SOCKET

91314-06030-00

$8.49

15

BOLT, SOCKET

91314-06040-00

$8.49

16

BOLT, SOCKET

91314-06080-00

Unavailable

17

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

18

COVER, GENERATOR

4R2-15415-00-00

Unavailable

19

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

20

OIL SEAL (20X30X7-371)

93102-20108-00

Unavailable

21

OIL SEAL (25X40X5-256)

93102-25090-00

Unavailable

22

COVER, OIL PUMP

4R2-15416-00-00

Unavailable

23

BOLT, SOCKET

91314-06030-00

$8.49
