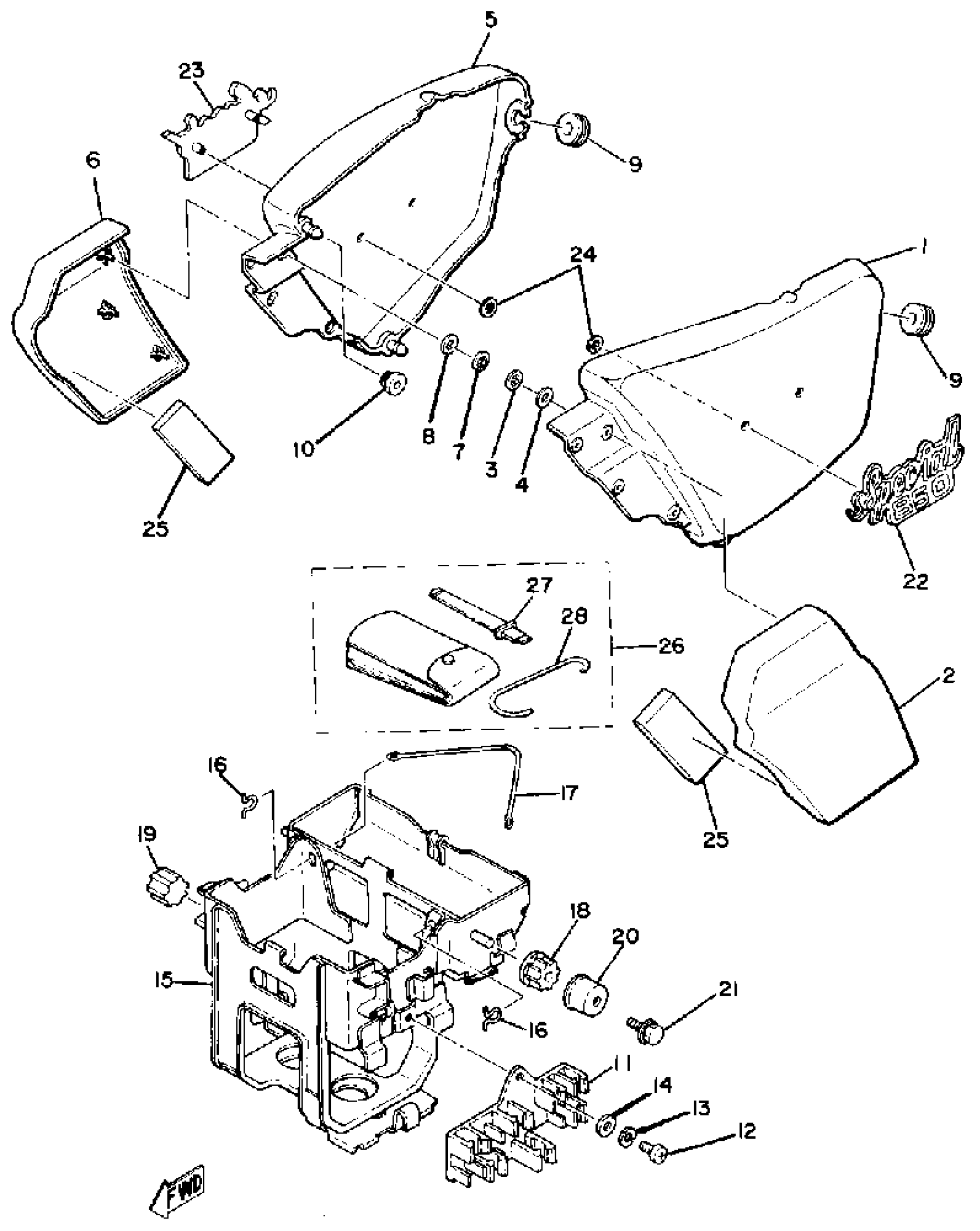

Yamaha XS850SG (XS850S) 1980 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1

3J2-21711-00-4J

Unavailable

1

COVER, SIDE 1

3J2-21711-00-7J

Unavailable

2

COVER, SIDE 3

3J2-21731-00-00

Unavailable

3

NUT SPRING 116283170100

90183-04005-00

$10.49

4

WASHER PLATE 174283160000

90202-04003-00

$8.49

5

COVER, SIDE 2

3J2-21721-00-4J

Unavailable

5

COVER, SIDE 2

3J2-21721-00-7J

Unavailable

6

COVER, SIDE 4

3J2-21741-00-00

Unavailable

7

NUT SPRING 116283170100

90183-04005-00

$10.49

8

WASHER PLATE 174283160000

90202-04003-00

$8.49

9

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

10

GROMMET(41Y)

90480-01401-00

$8.49

11

HOLDER, KNOB

(1J7-21794-00-00)

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

Unavailable

15

BOX

(3J3-21170-01-00)

Unavailable

16

HOOK, TOOL BAND

256-21366-00-00

Unavailable

17

BAND, TOOL

256-21376-00-00

Unavailable

18

DAMPER

1J7-21746-00-00

Unavailable

19

DAMPER, SIDE COVER

2J2-21729-00-00

Unavailable

20

BRACKET, DAMPER

(1J7-21798-00-00)

Unavailable

21

BOLT, FLANGE

95817-06010-00

Unavailable

22

EMBLEM 1

(3J2-21781-00-00)

Unavailable

23

EMBLEM 2

3J2-21782-00-00

Unavailable

24

NUT SPRING 116283170100

90183-04005-00

$10.49

25

DAMPER

3J3-21746-00-00

Unavailable

26

TOOL KIT

3J3-W2810-00-00

Unavailable

27

. GAUGE, OIL LEVEL

1J7-2815A-00-00

Unavailable

28

WIRE, HOOK

3H3-2814A-00-00

Unavailable
