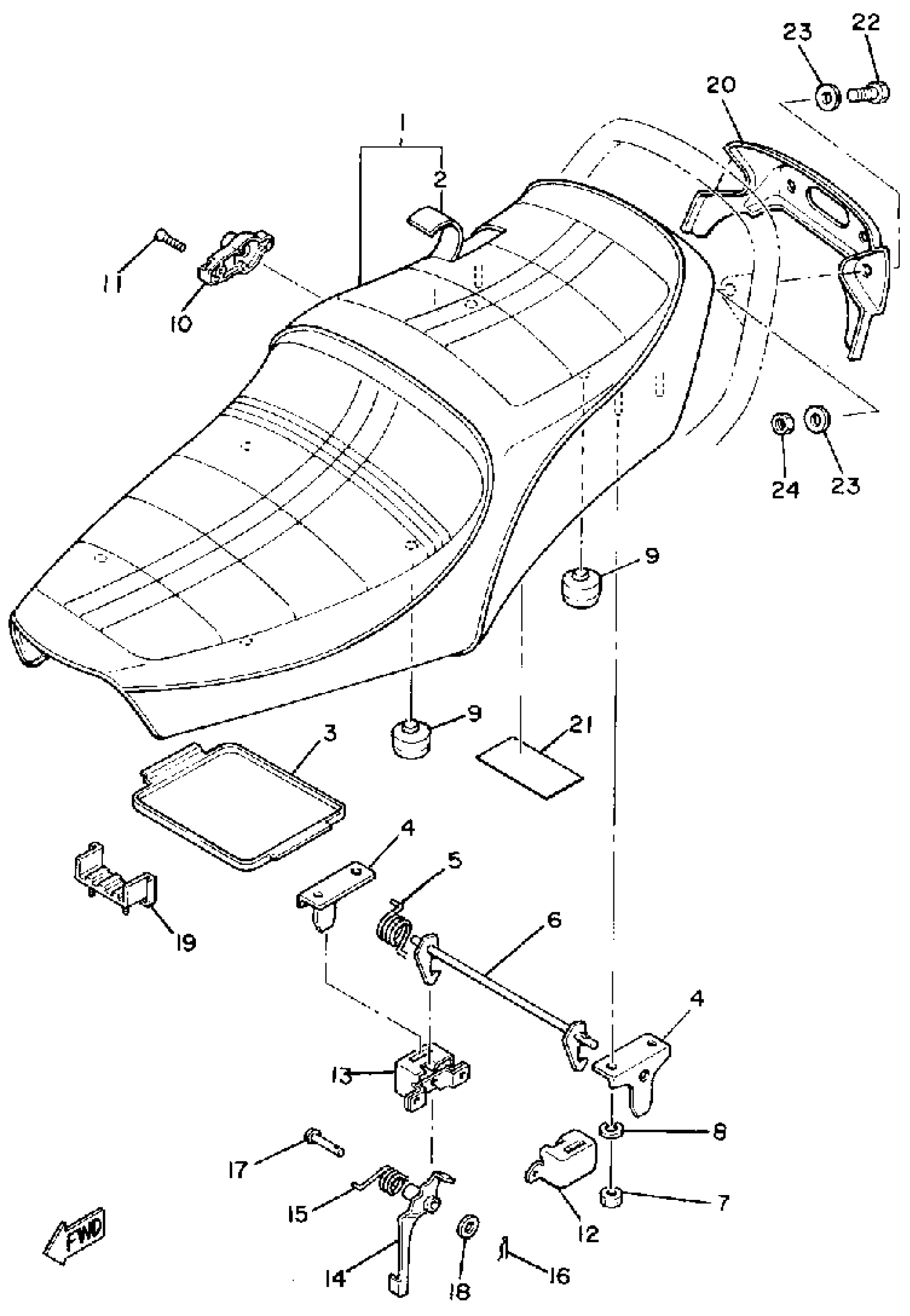

Yamaha XS850SG (XS850S) 1980 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

3J2-W2472-00-00

Unavailable

2

COVER, DOUBLE SEAT

(3J2-24731-00-00)

Unavailable

3

LID

395-28185-00-00

Unavailable

4

BRACKET, SEAT

3J3-24738-00-00

Unavailable

5

SPRING (3G1)

90508-20412-00

$7.49

6

HOOK, SEAT

3J3-24754-00-00

Unavailable

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

PAD, SEAT

1T4-24741-00-00

Unavailable

10

SEAT LOCK ASSY

3Y6-24705-00-00

Unavailable

11

SCREW, FLAT

98707-06030-00

$7.99

12

BRACKET, SEAT LVR 1

3J3-2475H-00-00

Unavailable

13

BRACKET, SEAT LVR 2

(3J3-2475J-00-00)

Unavailable

14

LEVER, SEAT

3J3-24776-00-00

Unavailable

15

SPRING

(3J3-24758-00-00)

Unavailable

16

CLIP (156-83525-00)

90468-10050-00

Unavailable

17

PIN, CLEVIS

91701-08028-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

DAMPER, SEAT

2H7-24724-00-00

Unavailable

20

COVER, TAIL

(3J2-24756-00-00)

Unavailable

21

PLATE, SPEC

(3J2-21683-01-00)

Unavailable

22

BOLT, HEXAGON

97017-08025-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable
