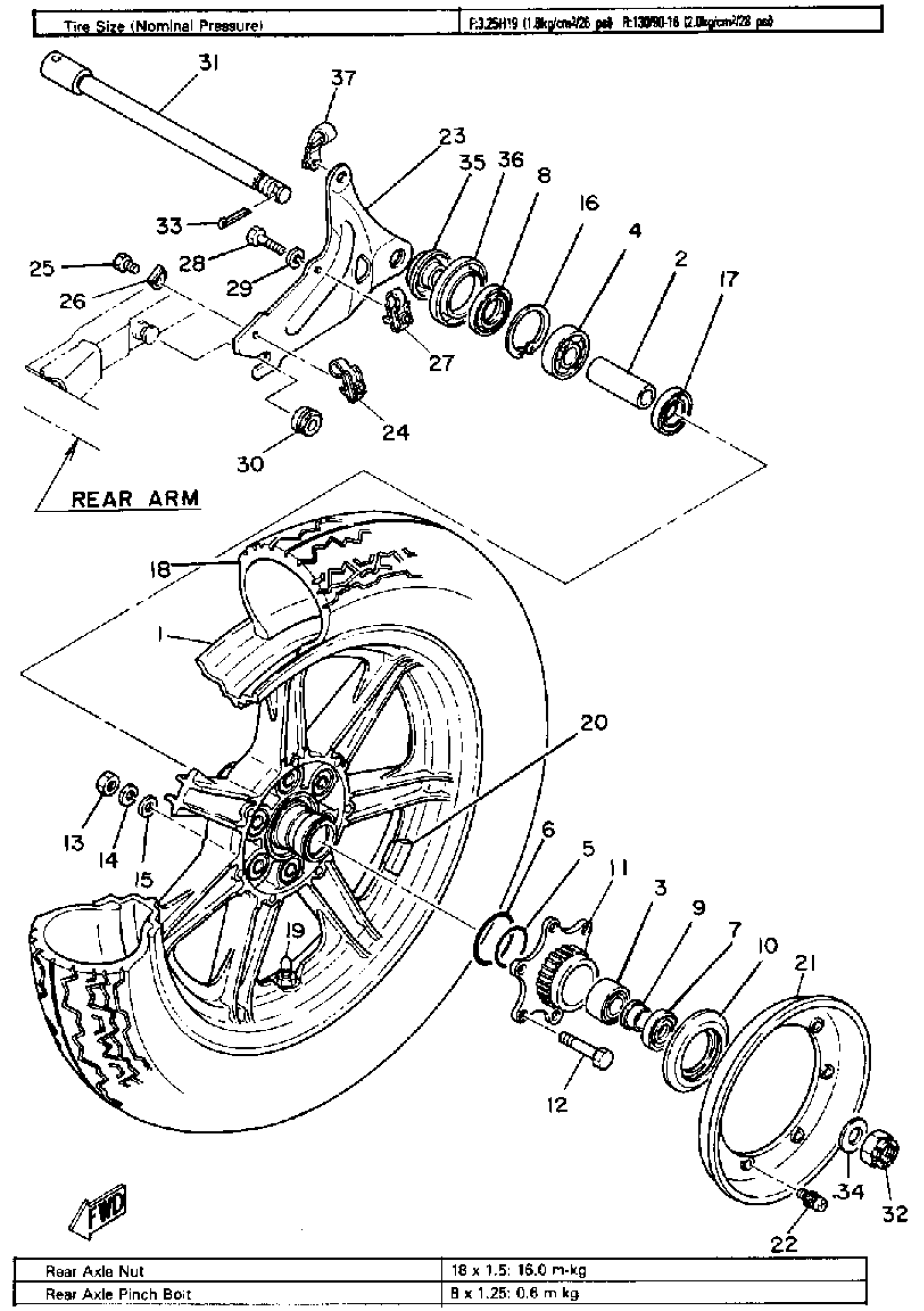

Yamaha XS850SG (XS850S) 1980 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(3H3-W2533-01-00)

Unavailable

2

SPACER, BEARING

2H7-25317-00-00

Unavailable

3

BEARING, CYLINDER.#13

93313-62010-00

Unavailable

4

BEARING(3BC)

93306-30437-00

$66.99

5

O-RING(2HF)

93210-40745-00

$11.49

6

O-RING(47X)

93210-58677-00

$7.49

7

OIL SEAL(7EG)

93102-25360-00

Unavailable

8

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

9

COLLAR

90387-20741-00

Unavailable

10

SEAL, HUB DUST

3J3-25319-00-00

Unavailable

11

CLUTCH, HUB

2H7-25366-00-00

Unavailable

12

BOLT

90109-10491-00

Unavailable

13

NUT(624)

95380-10600-00

$3.50

14

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

15

WASHER, PLATE 3711117500

90201-10124-00

$9.49

16

CIRCLIP(26H)

99009-52500-00

Unavailable

17

FLANGE, SPACER

2H7-25315-00-00

Unavailable

18

130/90-16 G528 BS

94113-161J2-00

Unavailable

19

VALVE, RIM (31A)

93900-00031-00

Unavailable

20

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

20

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

20

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

21

COVER, PLATE

2H7-25327-00-00

Unavailable

22

SCREW, WITH WASHER (1T4/2F3)

90159-05018-00

Unavailable

23

BAR, TENSION

(3J2-25371-01-00)

Unavailable

24

CLAMP

(90461-08051-00)

Unavailable

25

BOLT, HEXAGON

97017-06012-00

Unavailable

26

WASHER, LOCK

(90215-06128-00)

Unavailable

27

CLAMP

90461-08052-00

Unavailable

28

BOLT(8CP)

97017-06014-00

Unavailable

29

WASHER, SPRING

92907-06100-00

Unavailable

30

SPACER, TORQ.STOP

3H3-25374-00-00

Unavailable

31

AXLE, WHEEL

(3J3-25381-00-00)

Unavailable

32

NUT, CASTLE

90171-18043-00

Unavailable

33

PIN, COTTER

91490-40045-00

Unavailable

34

WASHER, PLATE (1J7)

90201-18620-00

Unavailable

35

COLLAR, WHEEL

3H3-25377-00-00

Unavailable

36

COVER, HUB DUST

1J7-25367-00-00

Unavailable

37

CLAMP

(90461-12053-00)

Unavailable
