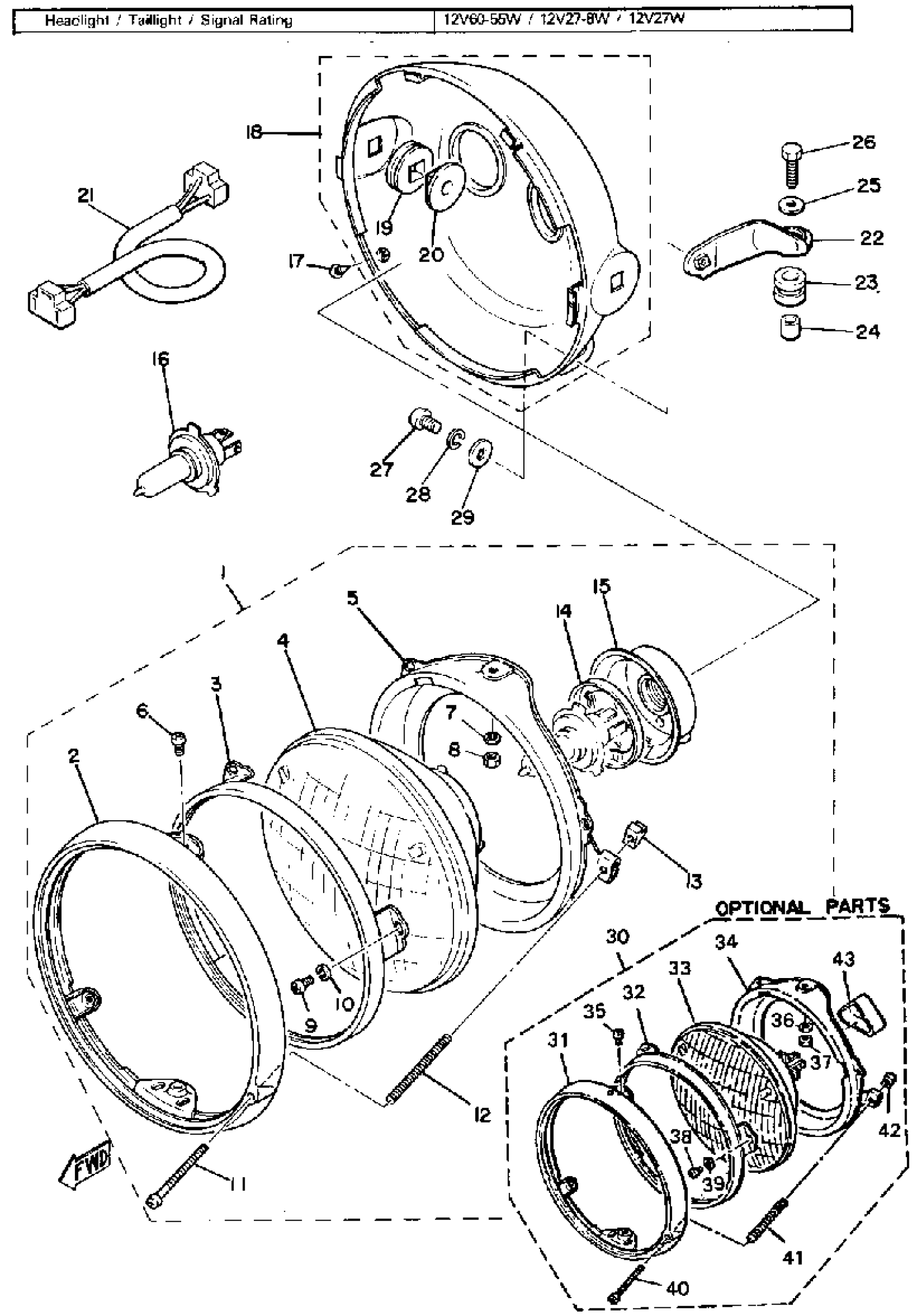

Yamaha XS850SG (XS850S) 1980 HEADLIGHT Diagram

#

Description
Price

1

HEAD LAMP UNIT ASSY

2F3-84303-A0-00

Unavailable

2

RIM, HEAD LAMP

341-84315-40-00

$142.99

3

RING, RETAINING

2F9-84395-00-00

$58.99

4

LENS ASSY

2F3-84321-A0-00

Unavailable

5

RING, MOUNTING

2F9-84394-00-00

Unavailable

6

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

NUT, HEXAGON (663)

95380-05600-00

$8.49

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

12

SPRING, ADJUST

341-84332-60-00

$9.99

13

NUT, ADJUST

198-84334-60-00

$7.99

14

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

15

COVER, SOCKET

2F9-84397-01-00

$30.99

16

BULB, HEADLIGHT

8V0-84314-10-00

Unavailable

17

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

18

BODY ASSEMBLY

3J6-84330-00-93

Unavailable

19

DAMPER, HEAD LAMP

584-84345-60-00

Unavailable

20

COLLAR 2

584-84338-60-00

Unavailable

21

CORD, HEADLIGHT

2H7-84359-00-00

Unavailable

22

STAY, HEADLIGHT 1

3H3-84318-00-00

Unavailable

23

GROMMET 341843360000

90480-16114-00

Unavailable

24

COLLAR (1T2)

90387-07598-00

Unavailable

25

WASHER, PLATE (J10)

90201-06697-00

Unavailable

26

BOLT, HEXAGON

97017-06025-00

Unavailable

27

SCREW, PAN

98507-06014-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE

90201-06380-00

Unavailable

30

HEADLIGHT UNIT ASSEMBLY

2J2-84310-60-00

Unavailable

31

HEADLIGHT UNIT ASSEMBLY

2J2-84310-60-00

Unavailable

32

RING, RETAINING

2F9-84395-00-00

$58.99

33

. LENS ASSEMBLY

341-84320-60-00

Unavailable

34

RING, MOUNTING

2F9-84394-00-00

Unavailable

35

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

36

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

37

NUT, HEXAGON (663)

95380-05600-00

$8.49

38

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

39

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

40

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

41

SPRING, ADJUST

341-84332-60-00

$9.99

42

NUT, ADJUST

198-84334-60-00

$7.99

43

. COVER, SOCKET

341-84397-61-00

Unavailable
