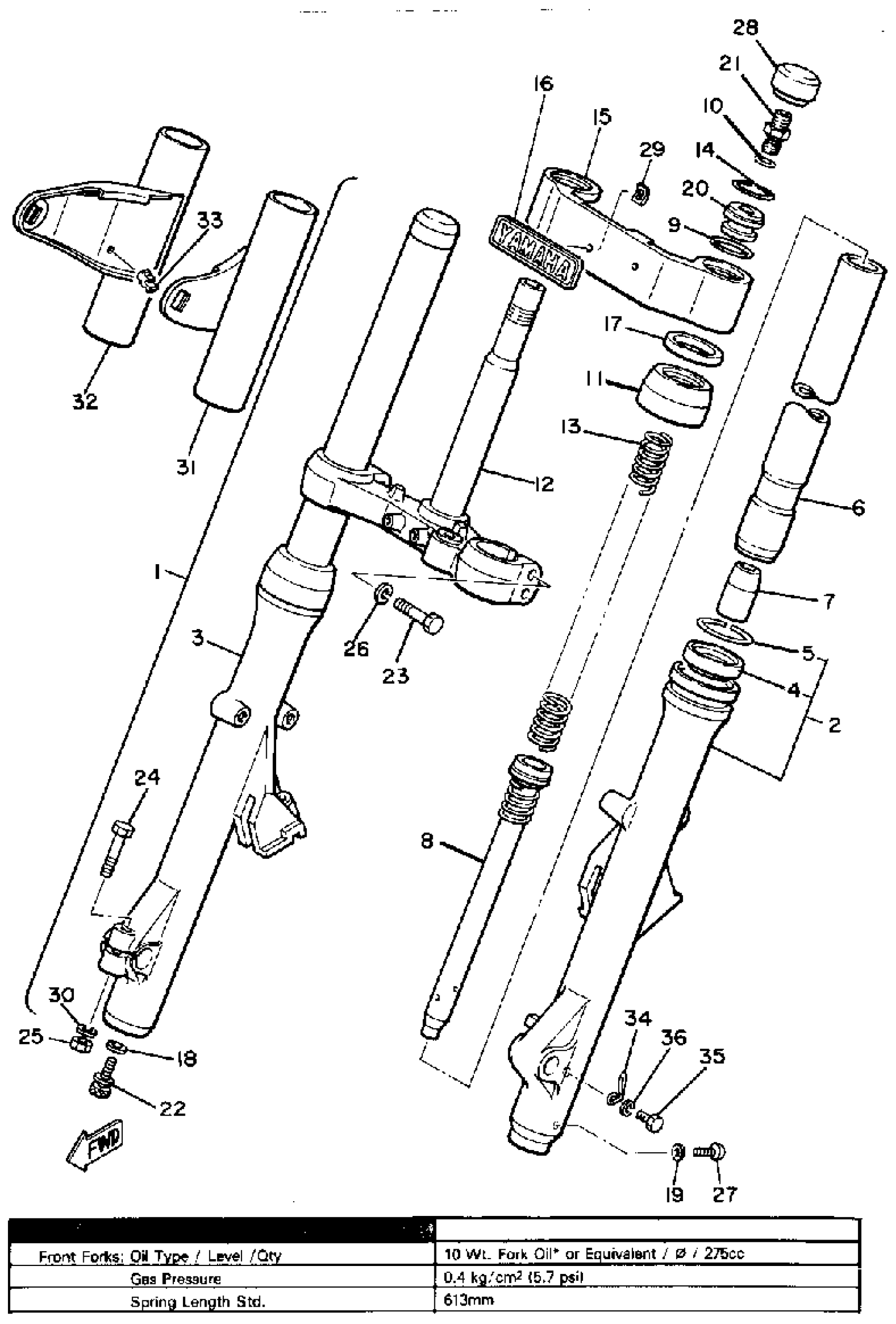

Yamaha XS850SG (XS850S) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(4H1-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3J2-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3J2-23136-00-00)

Unavailable

4

OIL SEAL

4ES-23145-00-00

$22.99

5

RING, SNAP

4A1-23156-00-00

$5.49

6

. INNER TUBE 1

3J2-23110-00-00

Unavailable

7

TAPER SPINDLE

1W1-23173-L0-00

$31.99

8

CYLINDER, FRTFRK

(3J2-23170-00-00)

Unavailable

9

O-RING

3J2-23114-00-00

$8.99

10

O-RING

3J2-23147-00-00

$9.99

11

SEAL, DUST

3J2-23144-00-00

Unavailable

12

UNDER BRACKET

3J2-23340-00-00

Unavailable

13

SPRING, FRONT FORK

(3J2-23141-00-00)

Unavailable

14

RING, SNAP

3J2-23183-00-00

$4.63

15

. COVER, OUTER 1

3J2-23122-00-00

Unavailable

16

. EMBLEM

2M0-23395-00-00

Unavailable

17

WASHER

2H7-23163-00-00

Unavailable

18

GASKET

509-23158-L0-00

Unavailable

19

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

20

. BOLT, CAP

3J2-23111-00-00

Unavailable

21

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

23

BOLT

(90101-08262-00)

Unavailable

24

BOLT

97013-08045-00

Unavailable

25

NUT(6L2)

95333-08600-00

Unavailable

26

WASHER(JN5)

92907-08100-00

Unavailable

27

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

28

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

29

NUT, SPRING (1L9)

90183-04012-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

COVER, UPPER 1

3J2-23121-00-93

Unavailable

32

COVER, UPPER 2

3J2-23131-00-93

Unavailable

33

CLAMP (1J7)

90464-16025-00

Unavailable

34

HOLDER, CABLE 1

4H3-23318-00-00

Unavailable

35

BOLT (661)

97013-06012-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable
