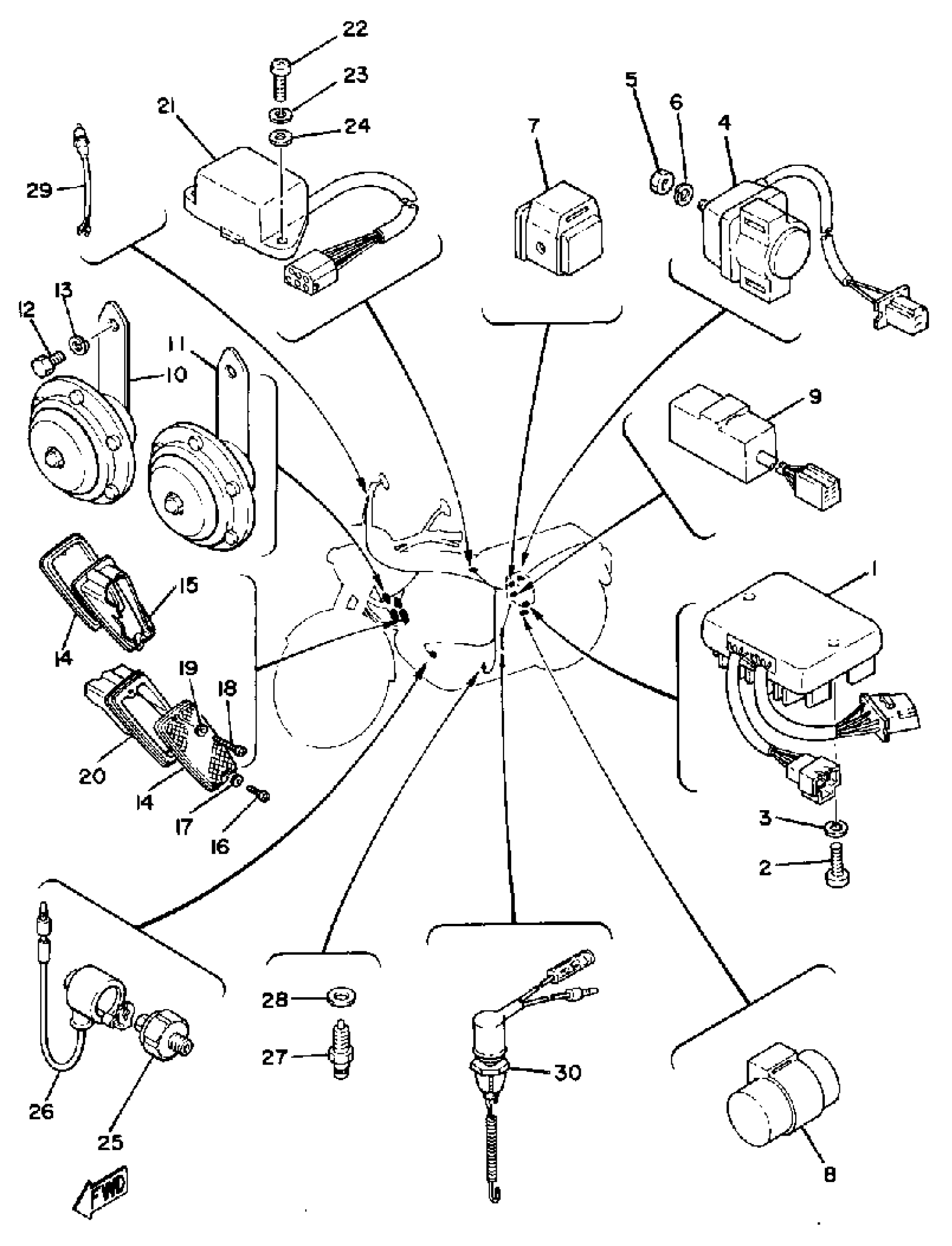

Yamaha XS850SG (XS850S) 1980 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92995-06100-00

Unavailable

4

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

5

NUT(650)

95380-06700-00

$8.49

6

WASHER, SPRING

92995-06100-00

Unavailable

7

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

8

FLASHER RELAY ASSEMBLY

3J3-83350-70-00

Unavailable

9

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

10

HORN

(3J3-83371-20-00)

Unavailable

11

HORN

3J3-83371-30-00

Unavailable

12

BOLT, HEXAGON

97017-08016-00

$8.49

13

WASHER(JN5)

92907-08100-00

$8.49

14

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

15

BASE, REFLECTOR

(3J3-85127-00-00)

Unavailable

16

SCREW, PAN HEAD

98507-04018-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

SCREW, PAN HEAD

98580-04540-00

Unavailable

19

WASHER, PLAIN (646)

92990-04600-00

Unavailable

20

BASE, REFLECTOR

(3J3-85127-50-00)

Unavailable

21

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

22

SCREW PAN HEAD

98580-06020-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

26

WIRE, LEAD

(1J7-82507-00-00)

Unavailable

27

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

28

GASKET (5R6)

90430-10171-00

Unavailable

29

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

30

STOP SWITCH ASSY

2F1-82530-03-00

Unavailable
