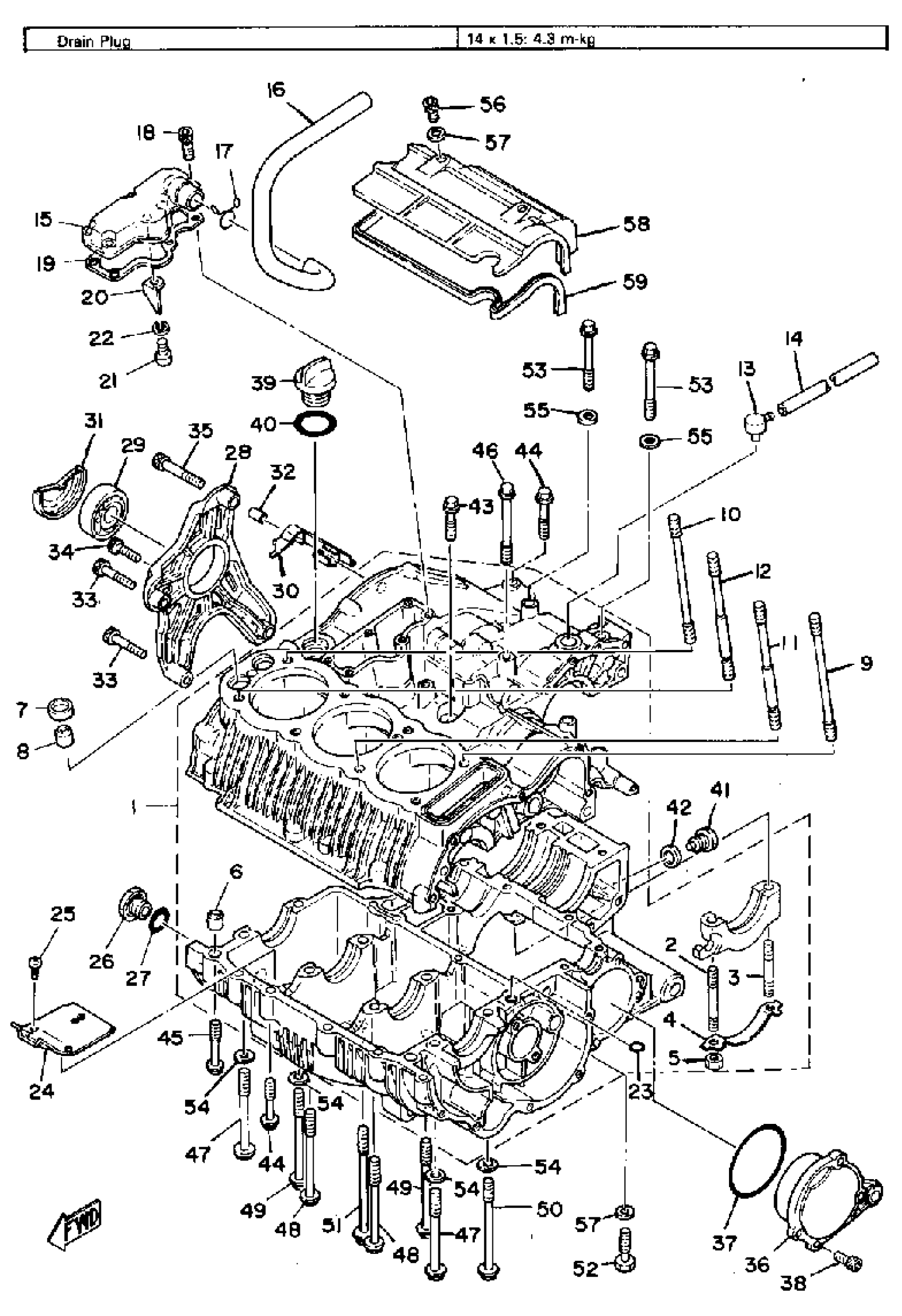

Yamaha XS850SG (XS850S) 1980 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(3J2-15100-00-00)

Unavailable

2

BOLT, STUD

(90116-08229-00)

Unavailable

3

. BOLT, STUD

90116-08230-00

Unavailable

4

. WASHER, LOCK

2K3-15186-00-00

Unavailable

5

NUT, HEXAGON (509)

90170-08158-00

$2.34

6

PIN, DOWEL

99530-14016-00

$3.80

7

SEAL, CYLINDER 3

1J7-11357-00-00

Unavailable

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

BOLT, STUD

90116-10273-00

Unavailable

10

BOLT, STUD

90116-10274-00

Unavailable

11

BOLT, CYLINDER HOLDING 3

2F3-11363-00-00

Unavailable

12

BOLT, CYLINDER HOLDING 4

2F3-11364-00-00

Unavailable

13

BREATHER

2H7-17591-01-00

Unavailable

14

HOSE (L1050)

90445-072G8-00

$29.99

15

COVER, BREATHER

(2G2-11168-00-00)

Unavailable

16

PIPE, BREATHER 1

2F3-11166-00-00

Unavailable

17

CLIP (371)

90467-14015-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

19

GASKET,BRTHR COVER

1J7-11169-10-00

Unavailable

20

PLATE, BREATHER

(1J7-11165-00-00)

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

O-RING (1J7)

93210-09350-00

Unavailable

24

PLATE, BUFFLE 1

(2F3-15123-00-00)

Unavailable

25

SCREW, TAPPING

(90167-05002-00)

Unavailable

26

BOLT, UNION

(90401-18042-00)

Unavailable

27

O-RING (1J7)

93210-18319-00

Unavailable

28

HOUSING, BEARING

(1J7-15442-02-00)

Unavailable

29

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

30

COLLECTOR, OIL

(2F3-15432-01-00)

Unavailable

31

RING, RUBBER

2F3-15449-01-00

Unavailable

32

PIN, DOWEL(3VD)

99530-10114-00

$2.55

33

BOLT,SOCKET

91317-08040-00

Unavailable

34

BOLT, SOCKET

91317-08025-00

Unavailable

35

BOLT, SOCKET

91317-08050-00

Unavailable

36

HOUSING, BEARING 2

(3J2-15164-00-00)

Unavailable

37

O-RING (5G2)

93210-71462-00

Unavailable

38

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

39

PLUG, OIL

371-15363-00-00

Unavailable

40

O-RING (371)

93210-29198-00

Unavailable

41

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

42

GASKET

214-11198-01-00

Unavailable

43

BOLT, FLANGE

95817-08035-00

Unavailable

44

BOLT, FLANGE

95814-08045-00

Unavailable

45

BOLT, FLANGE

95817-08050-00

Unavailable

46

BOLT, FLANGE(8BN)

95817-08085-00

Unavailable

47

BOLT, FLANGE

95821-10095-00

Unavailable

48

BOLT, FLANGE(4MY)

95817-10100-00

Unavailable

49

BOLT, FLANGE

(95821-10105-00)

Unavailable

50

BOLT, FLANGE

95821-10115-00

Unavailable

51

BOLT, FLANGE

(95821-10125-00)

Unavailable

52

BOLT

97014-08040-00

Unavailable

53

BOLT, FLANGE

95817-08075-00

Unavailable

54

WASHER PLATE 341839090000

90201-10128-00

Unavailable

55

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

56

BOLT,SOCKET

91317-06012-00

Unavailable

57

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

58

COVER, STRTG MOTOR

(2G2-15436-00-00)

Unavailable

59

GSKT, STRTG MTR CVR

1J7-15446-00-00

Unavailable
