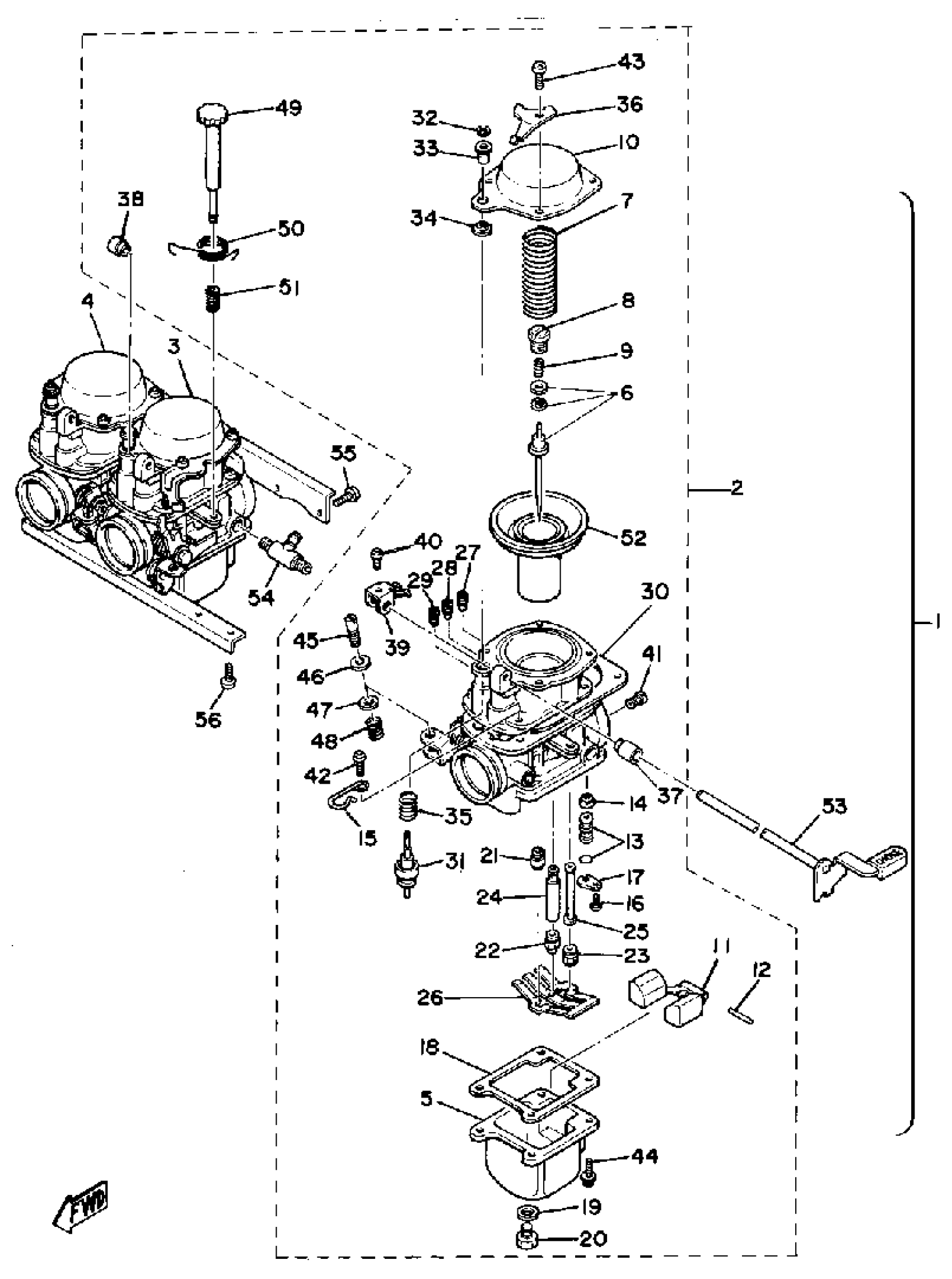

Yamaha XS850SG (XS850S) 1980 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

(3J2-14900-00-00)

Unavailable

2

CARBURETOR ASSEMBLY 1

(3J2-14901-00-00)

Unavailable

3

CARBURETOR ASSEMBLY 2

(3J2-14902-00-00)

Unavailable

4

CARBURETOR ASSEMBLY 3

(3J2-14903-00-00)

Unavailable

5

BODY, FLOAT CHAMBER

(3J3-14981-00-00)

Unavailable

6

.. JET, NEEDLE

3J3-W1418-01-00

Unavailable

7

SPRING, DIAPHRAGM

(3J3-14933-00-00)

Unavailable

8

SEAT, SPRING

(4H7-14936-00-00)

Unavailable

9

SPRING

(3J3-14589-00-00)

Unavailable

10

COVER, DIAPHRAGM

(3J3-14958-00-00)

Unavailable

11

.. FLOAT

3J3-14985-00-00

Unavailable

12

.. PIN, FLOAT

3J3-14186-00-00

Unavailable

13

O-RING (686)

93210-07180-00

$3.62

13

.. NEEDLE VALVE ASSEMBLY

3J3-W1496-20-00

Unavailable

14

NET, FILTER

(3J3-14994-00-00)

Unavailable

15

CLIP

(3J3-14937-00-00)

Unavailable

16

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

17

PLATE

(3J3-14146-00-00)

Unavailable

18

GASKET,FLOAT CHMBR

3J3-14984-01-00

Unavailable

19

.. WASHER

3J3-14953-00-00

Unavailable

20

SCREW

(3J3-14991-00-00)

Unavailable

21

.. O-RING

3J3-14561-00-00

Unavailable

21

.. JET, MAIN

3J3-W4943-42-00

Unavailable

22

.. O-RING

3J3-14561-00-00

Unavailable

22

.. JET, PILOT

3J3-W1448-40-00

Unavailable

23

.. O-RING

3J3-14561-00-00

Unavailable

23

.. JET, STARTER

3J3-W1461-40-00

Unavailable

24

.. EMULSION TUBE, SLOW

3J3-14924-00-00

Unavailable

25

.. JET, NEEDLE

3J3-14947-15-00

Unavailable

26

WASHER

(3J3-14956-00-00)

Unavailable

27

JET, MAIN AIR

(3J3-14928-10-00)

Unavailable

28

.. JET, PILOT AIR

3J3-14949-31-00

Unavailable

29

NOZZLE, STARTER

(3J3-14983-12-00)

Unavailable

30

.. GASKET

3J3-14959-00-00

Unavailable

31

.. PLUNGER, STARTER

3J3-14171-00-00

Unavailable

32

.. WASHER

3J3-14955-00-00

Unavailable

33

.. CAP

3J3-14968-00-00

Unavailable

34

.. COVER, PLUNGER CAP

3J3-14173-00-00

Unavailable

35

.. SPRING, PLUNGER

3J3-14135-00-00

Unavailable

36

PIPE

(3J3-14996-00-00)

Unavailable

37

BUSH

(3J3-14998-00-00)

Unavailable

38

WASHER

(3J3-14973-00-00)

Unavailable

39

LEVER, STARTER

(3J3-14905-00-00)

Unavailable

40

SCREW

(3J3-14991-00-00)

Unavailable

41

ORIFICE, AIR VENT

(3J3-14989-20-00)

Unavailable

42

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

43

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

44

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

45

SCREW, THROTTLE

(3J3-14922-00-00)

Unavailable

46

WASHER

(3J3-14951-00-00)

Unavailable

47

WASHER

(3J3-14952-00-00)

Unavailable

48

SPRING, THRTL STOP

(3J3-14133-00-00)

Unavailable

49

SCREW, THROTTLE

(3J3-14122-00-00)

Unavailable

50

SPRING

(3J3-14938-00-00)

Unavailable

51

.. SPRING, THRTL STOP

3J3-14934-00-00

Unavailable

52

DIAPHRAGM ASSEMBLY

(3J3-14940-00-00)

Unavailable

53

SHAFT, STARTER LVR

(3J3-14978-00-00)

Unavailable

54

O-RING (686)

93210-07180-00

$3.62

54

PIPE, STARTER CON

(3J3-14988-01-00)

Unavailable

55

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

56

SCREW, PAN

98507-06014-00

Unavailable
