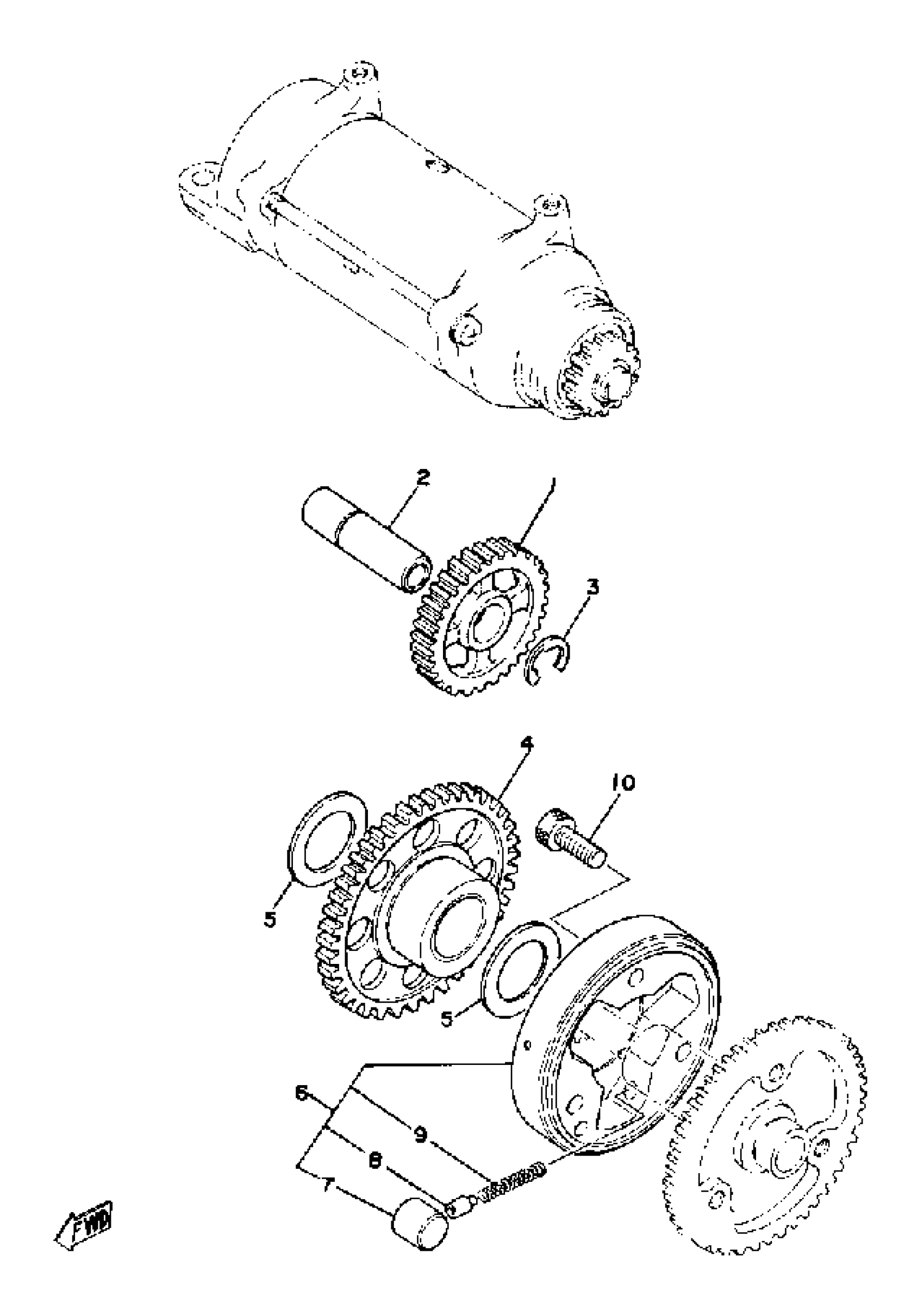

Yamaha XS850LH (XS850L) 1981 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1 (28T)

3J2-15512-00-00

Unavailable

2

SHAFT 1

1J7-15521-00-00

Unavailable

3

CIRCLIP, E-TYPE

99001-15600-00

Unavailable

4

GEAR, IDLER 2 (47T)

3J2-15517-00-00

Unavailable

5

WASHER PLATE 371115580000

90201-25291-00

$10.49

6

STARTER CLUTCH OUTER ASS''Y

1J7-15580-01-00

Unavailable

7

PIN, DOWEL (1J7)

93615-17125-00

$16.99

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

9

SPRING, COMPRESSION (2H7)

90501-04503-00

$9.49

10

BOLT, SOCKET

91317-08020-00

$8.49
