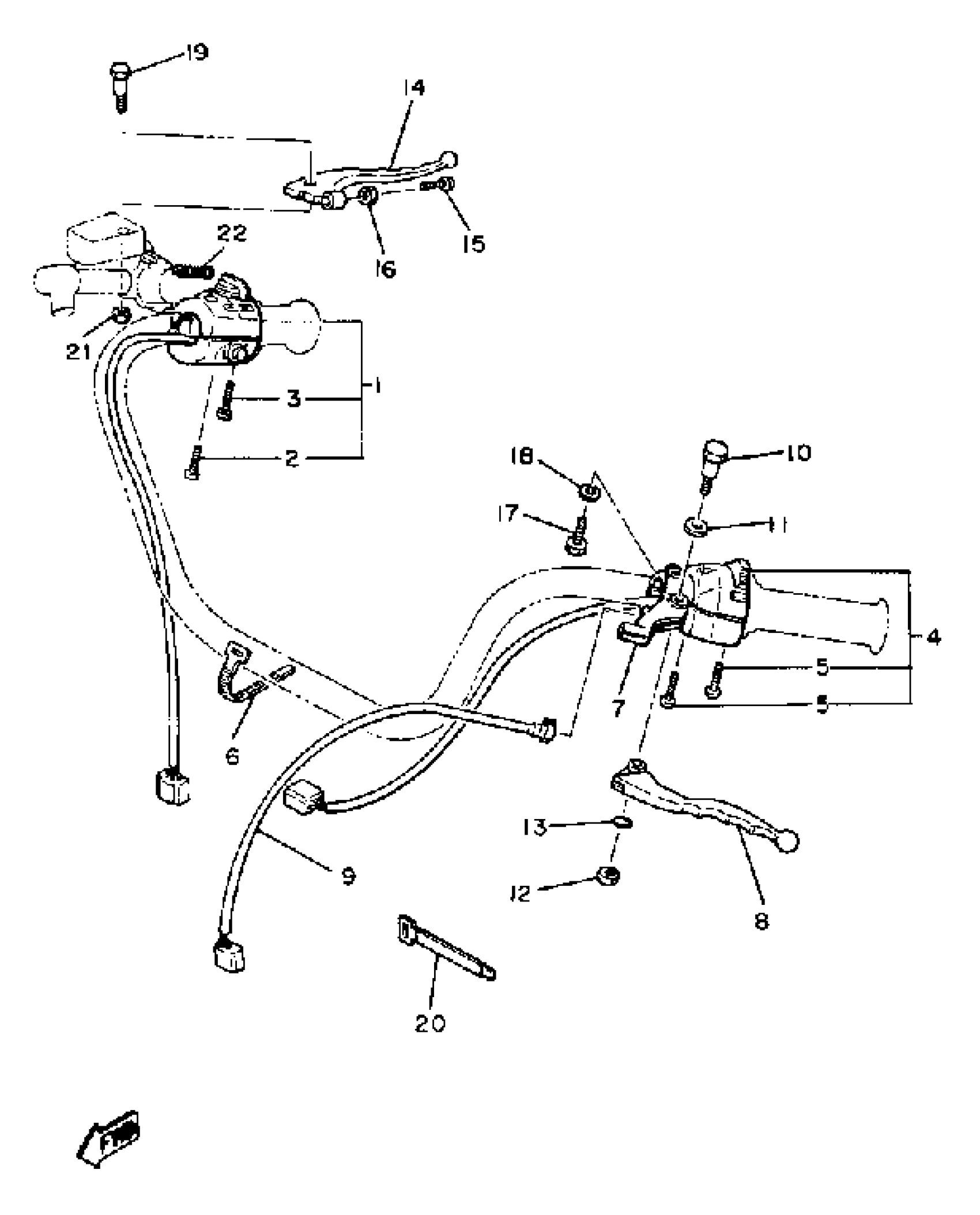

Yamaha XS850LH (XS850L) 1981 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 2

(4H1-83975-00-00)

Unavailable

2

SCREW, PAN HEAD

98517-05030-00

$7.40

3

SCREW, PAN

98507-05040-00

$6.22

4

SWITCH, HANDLE 3

2G2-83973-00-98

Unavailable

5

SCREW, PAN HEAD

98517-05030-00

$7.40

6

BAND, SWITCH CORD

437-83936-01-00

$4.56

7

HOLDER, LEVER 1

3Y6-82911-00-00

$44.11

8

LEVER L

2H0-83912-31-00

$25.00

9

SWITCH

3Y6-82917-00-00

Unavailable

10

BOLT(1FG)

90109-06798-00

$5.84

11

WASHER, PLATE 1562722600

90201-08083-00

$5.86

12

NUT, SELF-LOCKING

95617-06100-00

$2.17

13

O-RING (2H7)

93210-11368-00

$4.48

14

LEVER 2

4L0-83922-00-00

$41.24

15

SCREW (2L0)

90149-06131-00

$5.75

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

BOLT, HEXAGON

97007-06022-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

BOLT (4L0)

90109-06577-00

Unavailable

20

BAND

341-26397-01-00

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

$2.17

22

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable
