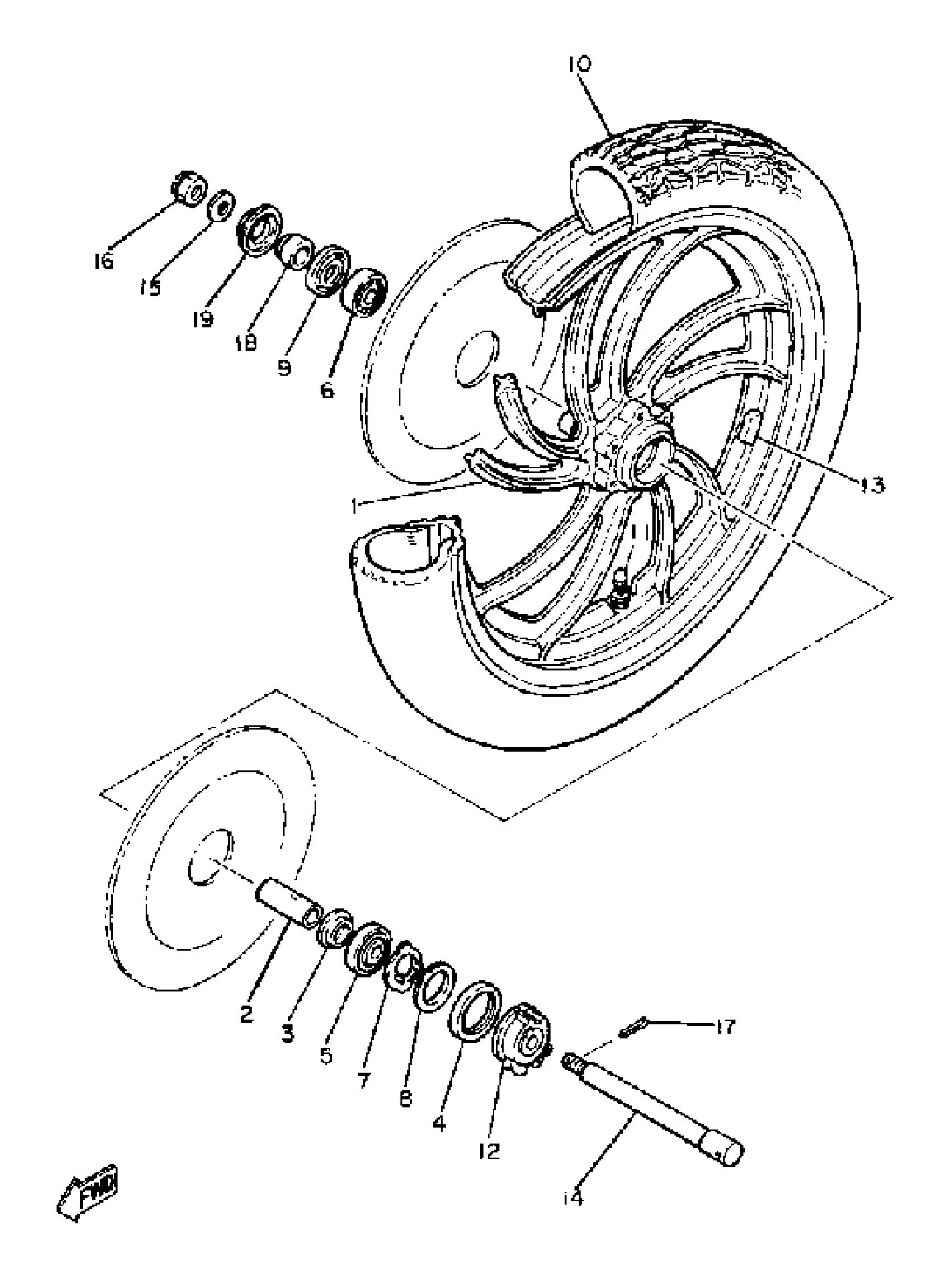

Yamaha XS850LH (XS850L) 1981 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

(4W1-25168-20-8L)

Unavailable

2

SPACER 341251170100

90560-17126-00

$16.99

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

OIL SEAL (45X56X6)

93105-45017-00

$14.99

5

BEARING(4HM)

93306-30317-00

$39.99

6

BEARING(4HM)

93306-30317-00

$39.99

7

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

8

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

9

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

10

325H19 L303TL #TBB (3.25-19) (94132-1946)

94132-193M3-00

Unavailable

11

VALVE, RIM (31A)

93900-00031-00

$16.99

12

GEAR UNIT ASSEMBLY

2G2-25190-00-00

Unavailable

13

BALANCER, WHEEL

5MT-25398-00-00

$17.49

13

BALANCER, WHEEL

5MT-25398-00-00

$17.49

13

BALANCER, WHEEL

5MT-25398-00-00

$17.49

14

AXLE, WHEEL

99999-04072-00

Unavailable

15

WASHER, PLAIN

92990-14200-00

Unavailable

16

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

17

PIN, COTTER

91490-30030-00

Unavailable

18

COLLAR

90387-17433-00

Unavailable

19

COVER, HUB DUST

341-25118-00-00

Unavailable
