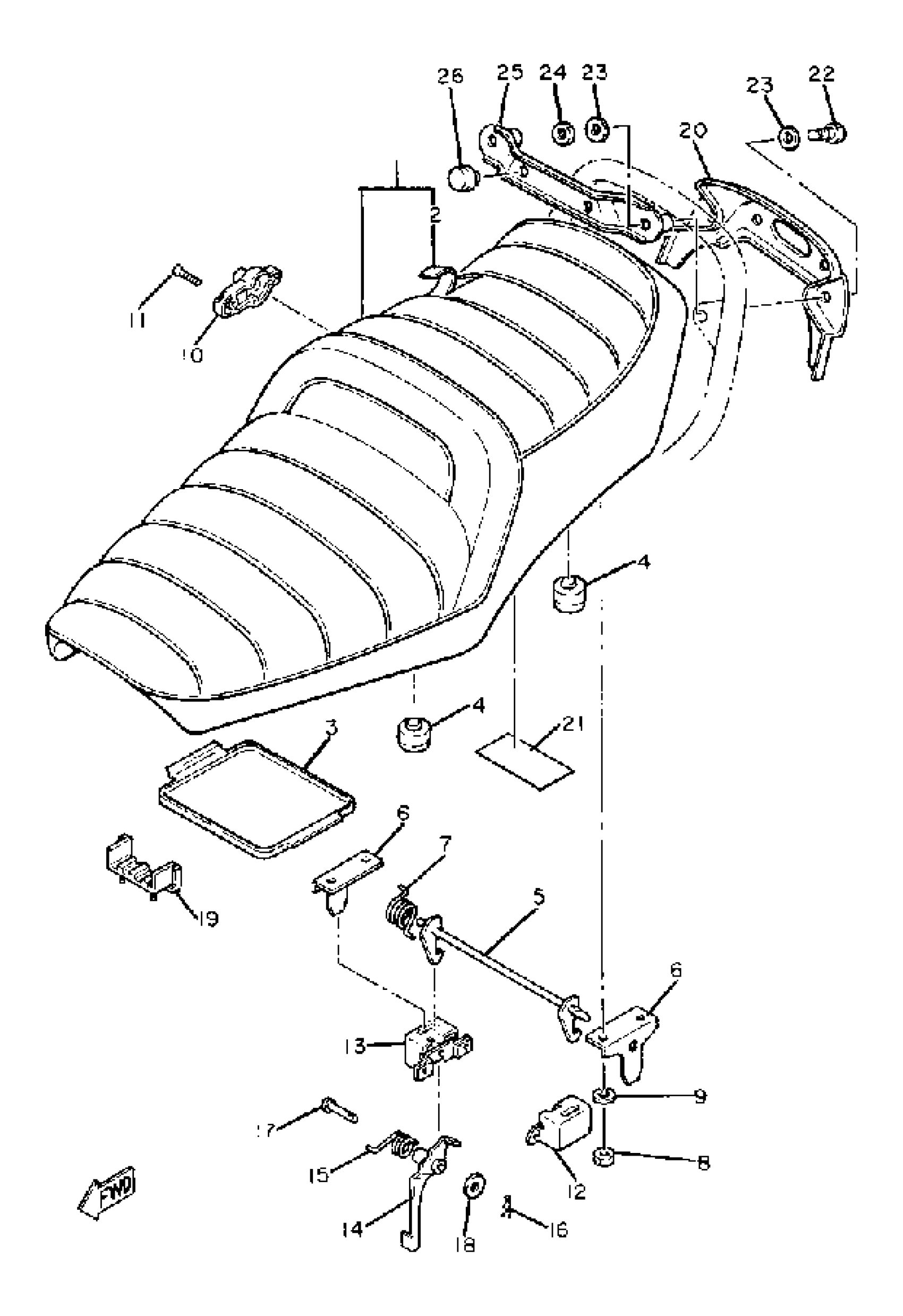

Yamaha XS850LG (XS850L) 1980 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSEMBLY
(4W3-W2472-00-00)
Unavailable
2
COVER, DOUBLE SEAT
(4W3-24731-00-00)
Unavailable
3
LID
395-28185-00-00
Unavailable
4
PAD, SEAT
3J2-24741-00-00
Unavailable
5
HOOK, SEAT
3J3-24754-00-00
Unavailable
6
BRACKET, SEAT
3J3-24738-00-00
Unavailable
8
NUT, HEXAGON
95380-06600-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
10
SEAT LOCK ASSY
3Y6-24705-00-00
Unavailable
12
BRACKET, SEAT LVR 1
3J3-2475H-00-00
Unavailable
13
BRACKET, SEAT LVR 2
(3J3-2475J-00-00)
Unavailable
14
LEVER, SEAT
3J3-24776-00-00
Unavailable
15
SPRING
(3J3-24758-00-00)
Unavailable
16
CLIP (156-83525-00)
90468-10050-00
Unavailable
17
PIN, CLEVIS
91701-08028-00
Unavailable
18
WASHER(6TA)
92907-08600-00
Unavailable
19
DAMPER, SEAT
2H7-24724-00-00
Unavailable
20
COVER, TAIL
(3J2-24756-00-00)
Unavailable
21
PLATE, SPEC
(3J2-21683-01-00)
Unavailable
22
BOLT(6TC)
97027-08050-00
Unavailable
23
WASHER, PLATE
90201-08104-00
Unavailable
24
NUT(6TA)
95337-08600-00
Unavailable
25
BRIDGE, REAR
(3J2-24759-00-00)
Unavailable
26
PAD, SEAT
1L9-24741-00-00
Unavailable
