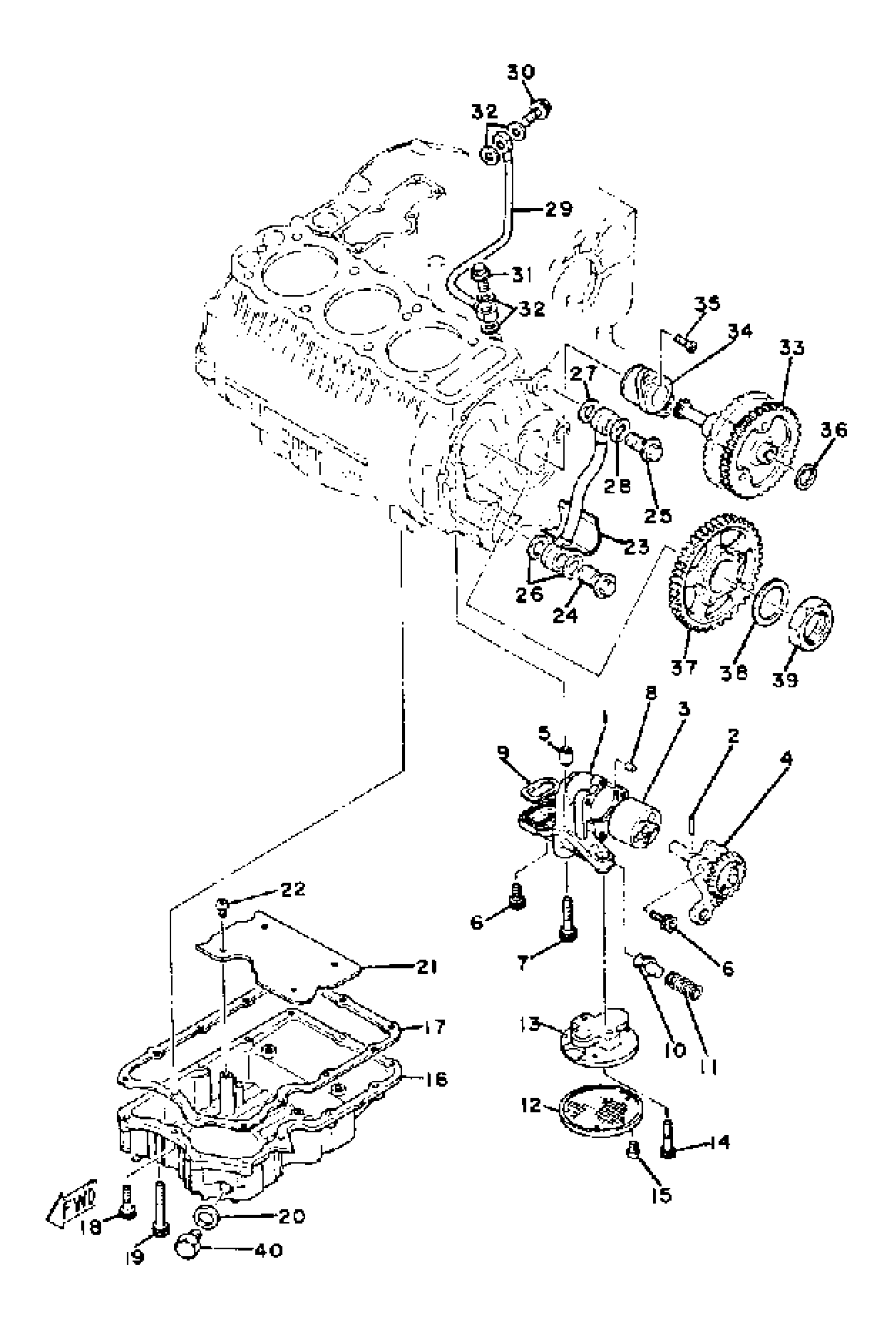

Yamaha XS850LG (XS850L) 1980 OIL PUMP Diagram
#
1
. HOUSING, ROTOR
2F3-13336-02-00
Unavailable
3
ROTOR ASSEMBLY 1
2F3-13310-01-00
Unavailable
4
COVER, PUMP
(2F3-13306-00-00)
Unavailable
6
BOLT,SOCKET
91317-06020-00
Unavailable
9
SEAL
1J7-13338-00-00
Unavailable
10
PLUNGER, RELIEF
1J7-13483-00-00
Unavailable
11
SPRING, RELIEF
1J7-13484-00-00
Unavailable
12
STRAINER, OIL
2F3-13411-00-00
Unavailable
13
HOUSING, STRAINER
(1J7-13412-01-00)
Unavailable
14
BOLT,SOCKET
91317-06035-00
Unavailable
16
COVER, STRAINER
1J7-13417-01-00
Unavailable
17
GASKET,STRNR COVER
1J7-13414-10-00
Unavailable
18
BOLT,SOCKET
91317-06025-00
Unavailable
19
BOLT,SOCKET
91317-06055-00
Unavailable
20
GASKET
214-11198-01-00
Unavailable
21
PLATE, BAFFLE LOWER
(1J7-13337-01-00)
Unavailable
22
SCREW PAN HEAD
98580-06010-00
Unavailable
23
PIPE, DELIVERY 2
2F3-13171-00-00
Unavailable
24
BOLT, UNION
(90401-18040-00)
Unavailable
25
BOLT, UNION
(90401-10054-00)
Unavailable
26
GASKET (1J7)
90430-18130-00
Unavailable
27
WASHER PLATE 341839090000
90201-10128-00
Unavailable
28
GASKET
90430-16048-00
Unavailable
29
PIPE, DELIVERY 1
1J7-13161-00-00
Unavailable
30
BOLT, BANJO
(4H1-13165-00-00)
Unavailable
31
BOLT, BANJO
(4H1-13166-00-00)
Unavailable
32
GASKET (5R6)
90430-10171-00
Unavailable
33
GEAR, PUMP DRIVEN
(1J7-13325-01-00)
Unavailable
34
HOUSING
(1J7-13313-00-00)
Unavailable
35
SCREW, OVAL HEAD
98603-06018-00
Unavailable
36
WASHER PLATE 328171160000
90201-20276-00
Unavailable
37
GEAR, PUMP DRIVE
(1J7-13324-00-00)
Unavailable
38
WASHER, PLATE
90201-26600-00
Unavailable
39
NUT, HEXAGON
(90170-26191-00)
Unavailable
40
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
