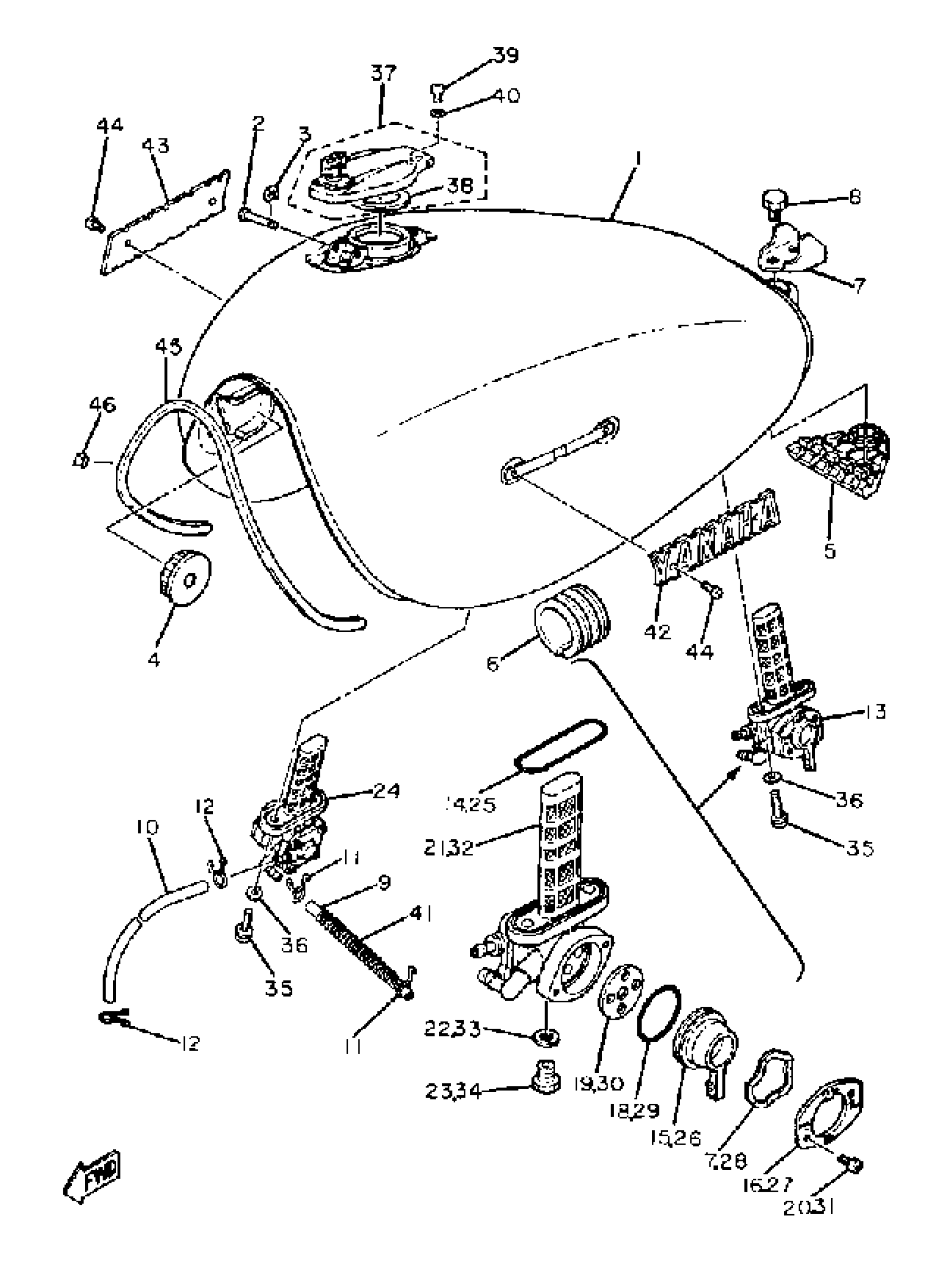

Yamaha XS850LG (XS850L) 1980 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

2G2-24110-01-6G

Unavailable

2

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

3

CIRCLIP (604)

93430-02001-00

$8.49

4

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

5

DAMPER, TANK LOCATING 2

1J7-24182-01-00

$34.99

6

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

7

WASHER, SPECIAL

3J2-24186-00-00

Unavailable

8

BOLT(62E)

97013-08012-00

Unavailable

9

HOSE (L450)

90445-10144-00

$7.49

10

HOSE (L770)

90445-090G9-00

$33.99

11

CLIP

90467-090A2-00

$4.41

12

CLIP 101235600

90467-08003-00

$10.49

13

FUEL COCK ASSEMBLY 1

2G2-24500-05-00

Unavailable

14

O-RING

2G2-24512-00-00

$10.99

15

LEVER, COCK

(4H1-24524-00-00)

Unavailable

16

PLATE, LVR FITTING

(4H1-24525-00-00)

Unavailable

17

. WASHER, WAVE

16G-24518-00-00

Unavailable

18

O-RING

2G2-24534-00-00

Unavailable

19

VALVE

16G-24523-00-00

Unavailable

20

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

21

NET, FILTER 1

(2L0-24514-00-00)

Unavailable

22

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

23

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

24

FUEL COCK ASY 2

2G2-24510-05-00

Unavailable

25

O-RING

2G2-24512-00-00

$10.99

26

LEVER, COCK

(4H1-24524-10-00)

Unavailable

27

PLATE, LVR FITTING

(4H1-24525-00-00)

Unavailable

28

. WASHER, WAVE

16G-24518-00-00

Unavailable

29

O-RING

2G2-24534-00-00

Unavailable

30

VALVE

16G-24523-00-00

Unavailable

31

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

32

NET, FILTER 1

(2L0-24514-00-00)

Unavailable

33

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

34

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

35

SCREW, PAN HEAD

(90157-06019-00)

Unavailable

36

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

37

CAP ASSEMBLY

4H1-24602-00-00

Unavailable

38

GASKET, CAP

2M0-24641-00-00

Unavailable

39

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

40

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

41

SPRING, COMPRESSION

90504-06023-00

Unavailable

42

EMBLEM 1

(4H1-24161-00-00)

Unavailable

43

EMBLEM 2

4H1-24162-00-00

Unavailable

44

SCREW (2F0)

90152-04006-00

Unavailable

45

PLATE, MOLD

4H1-24189-00-00

Unavailable

46

CLIP

90468-03063-00

Unavailable
