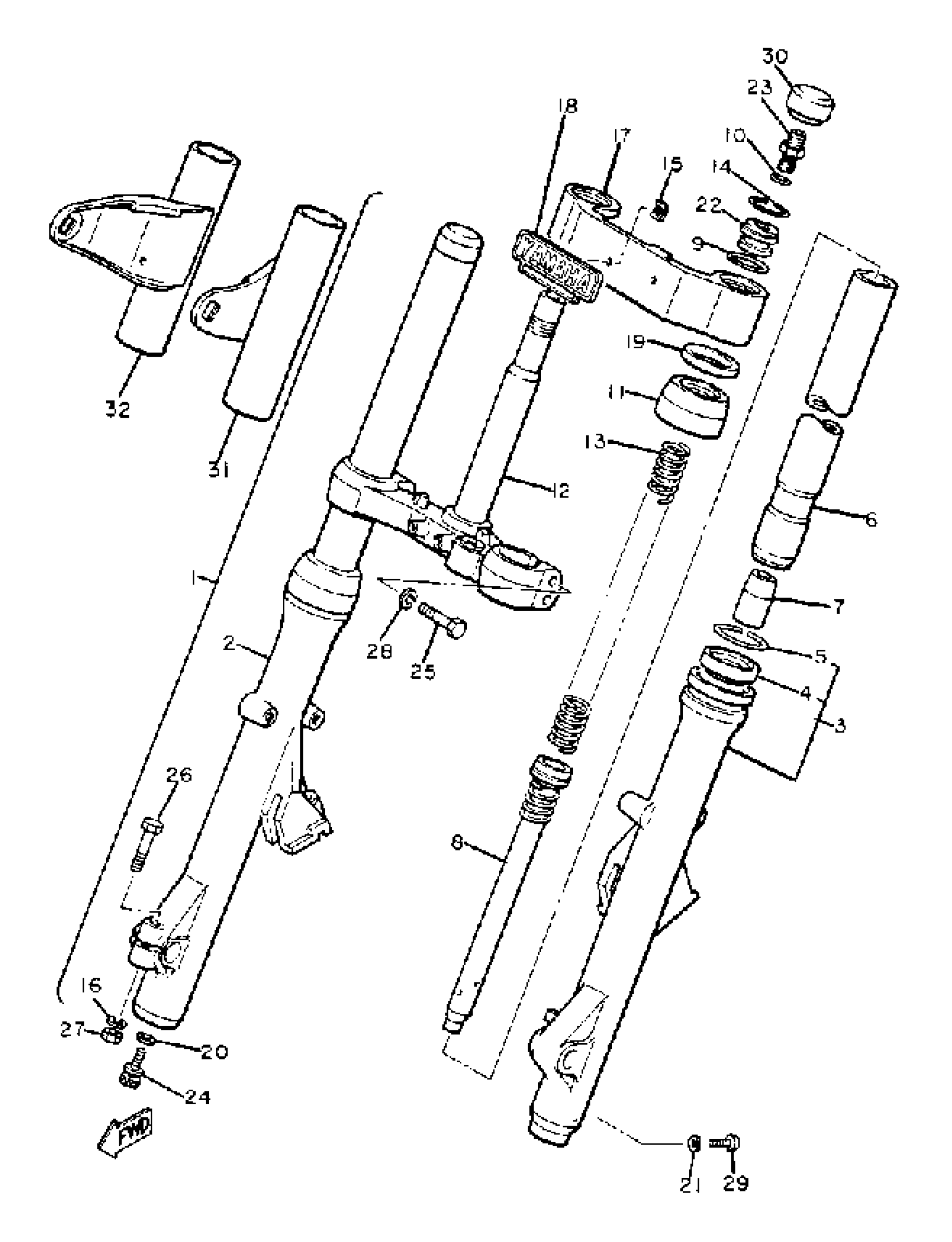

Yamaha XS850LG (XS850L) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(4H1-23101-00-00)

Unavailable

2

TUBE, OUTER 2

(4H1-23136-00-6G)

Unavailable

3

TUBE, OUTER 1

(4H1-23126-00-6G)

Unavailable

4

OIL SEAL

4ES-23145-00-00

$22.99

5

RING, SNAP

4A1-23156-00-00

$5.49

6

. INNER TUBE 1

3J2-23110-00-00

Unavailable

7

TAPER SPINDLE

1W1-23173-L0-00

$31.99

8

CYLINDER, FRTFRK

(3J2-23170-00-00)

Unavailable

9

O-RING

3J2-23114-00-00

$8.99

10

O-RING

3J2-23147-00-00

$9.99

11

SEAL, DUST

3J2-23144-00-00

Unavailable

12

UNDER BRACKET

3J2-23340-00-00

Unavailable

13

SPRING, FRONT FORK

(3J2-23141-00-00)

Unavailable

14

RING, SNAP

3J2-23183-00-00

$4.63

15

NUT, SPRING (1L9)

90183-04012-00

$7.49

16

WASHER(JN5)

92907-08100-00

Unavailable

17

COVER, OUTER 1

(4H1-23122-00-00)

Unavailable

18

. EMBLEM

4H3-23395-00-00

Unavailable

19

WASHER

2H7-23163-00-00

Unavailable

20

GASKET

509-23158-L0-00

Unavailable

21

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

22

. BOLT, CAP

3J2-23111-00-00

Unavailable

23

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

25

BOLT

(90101-08262-00)

Unavailable

26

BOLT(3HN)

97017-08045-00

Unavailable

27

NUT(6TA)

95337-08600-00

Unavailable

28

WASHER(JN5)

92907-08100-00

Unavailable

29

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

30

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

31

COVER, UPPER 1

4H1-23121-00-00

Unavailable

32

COVER, UPPER 2

4H1-23131-00-00

Unavailable
