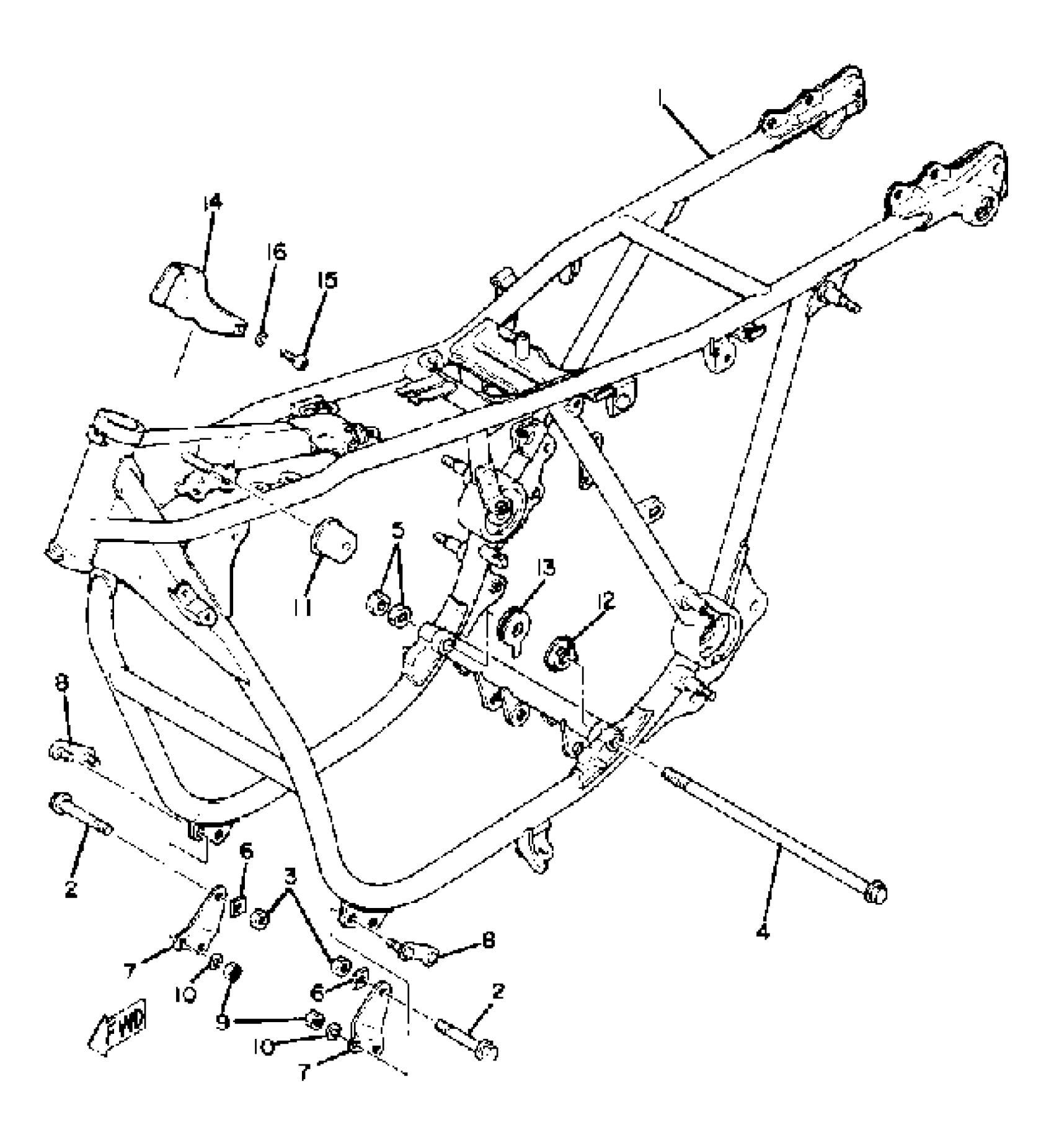

Yamaha XS850LG (XS850L) 1980 FRAME Diagram
#
Description
Price
1
FRAME
(4H1-21110-01-98)
Unavailable
4
BOLT
(90109-12595-00)
Unavailable
6
WASHER, SPEC''L SHAP
(90209-10147-00)
Unavailable
7
STAY, ENGINE 3
(4H1-21316-00-00)
Unavailable
8
BRACKET, FRT LWR 2
(4H1-21418-00-00)
Unavailable
11
BRACKET, TANK FTNG
2G2-21347-00-00
Unavailable
12
DAMPER, RUBBER 1
2G2-21485-00-00
Unavailable
13
DAMPER 2
2G2-21486-00-00
Unavailable
14
COVER 2
(4H1-2139R-00-00)
Unavailable
16
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
