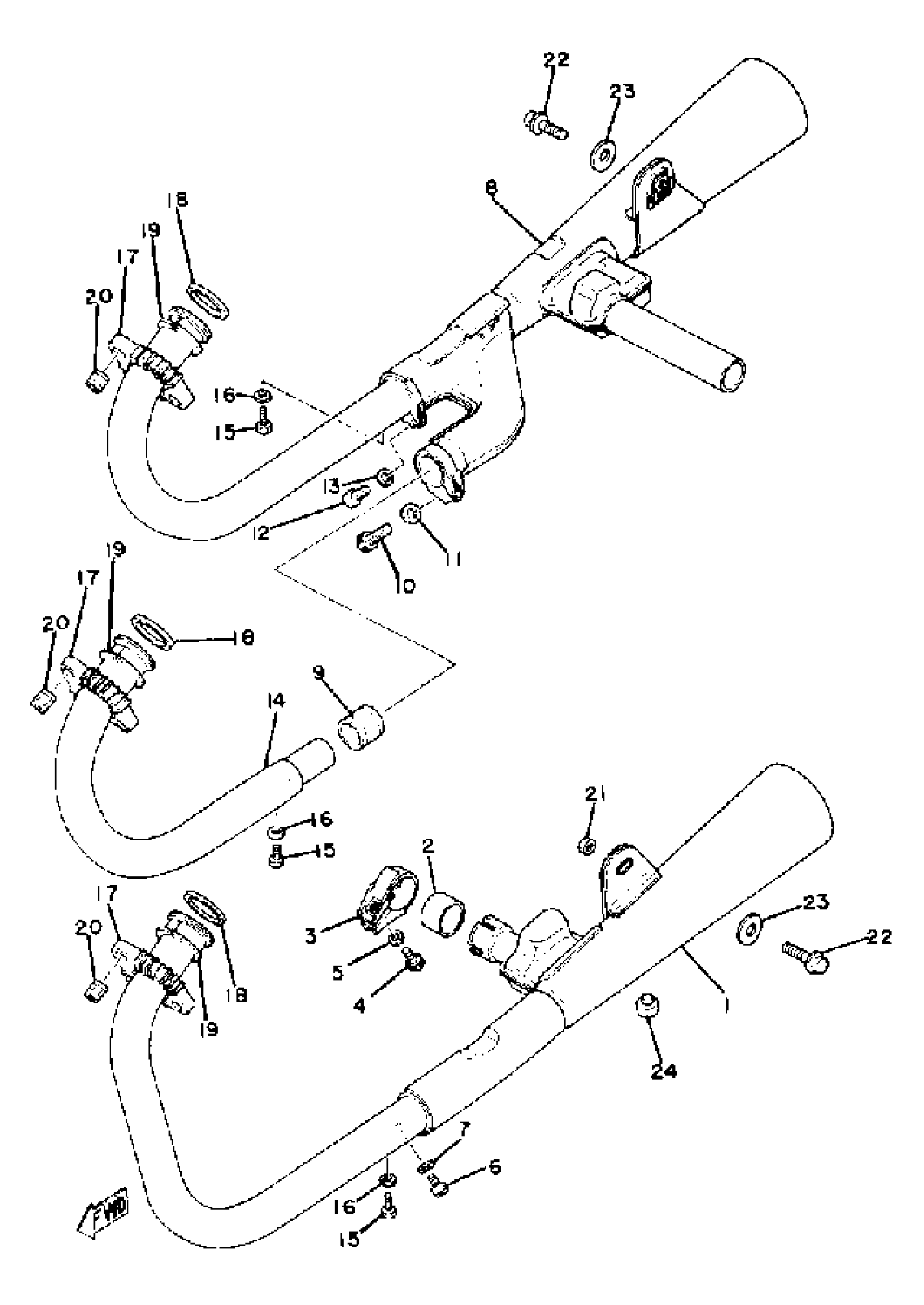

Yamaha XS850LG (XS850L) 1980 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

4H1-14710-00-00

Unavailable

2

GASKET, EXHAUST 4

3JJ-14653-00-00

$42.99

3

BAND, SILENCER

(4H1-14788-00-00)

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

SCREW, PAN

98507-06014-00

$8.49

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

MUFFLER ASSY 2

4H1-14720-00-00

Unavailable

9

GASKET, MUFFLER

3YF-14714-00-00

$36.99

10

BOLT, SOCKET

91317-08025-00

$8.49

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

PIPE, EXHAUST R

(4H1-14621-00-00)

Unavailable

15

BOLT, HEXAGON

97017-06012-00

$3.76

16

WASHER(6TA)

92907-06600-00

Unavailable

17

NUT, RING

(4H1-14612-00-00)

Unavailable

18

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

19

FLANGE, EXST PIPE

1J7-14614-00-00

Unavailable

20

NUT

4H2-14681-00-00

Unavailable

21

NUT, SPEC''L SHAPE

90179-10276-00

Unavailable

22

BOLT, FLANGE

95817-10035-00

Unavailable

23

WASHER

(4H1-14617-00-00)

Unavailable

24

STOPPER, MAIN STAND

371-27114-00-00

Unavailable
