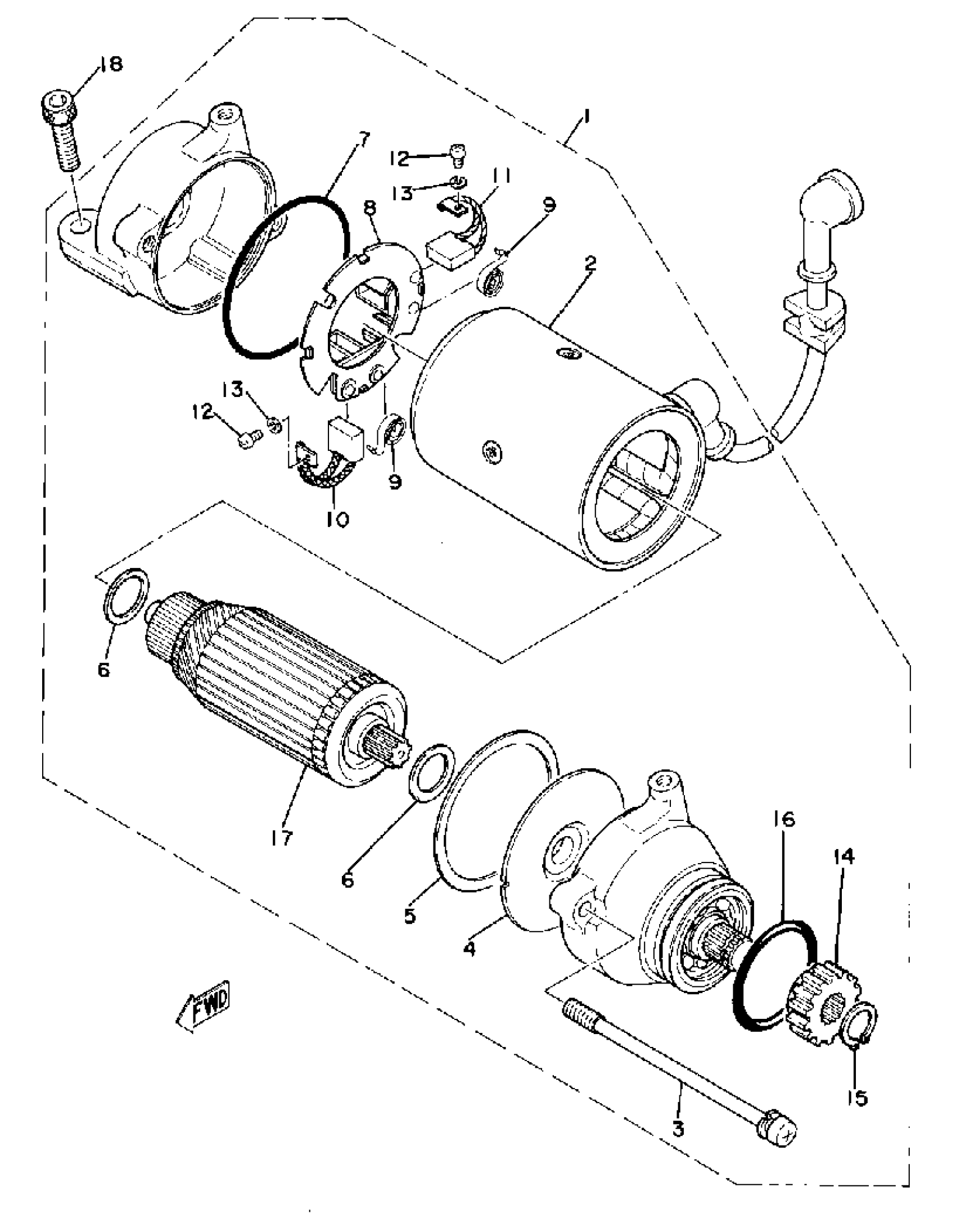

Yamaha XS850H (XS850) 1981 STARTING MOTOR Diagram

#

Description

Price

1

STARTING MOTOR ASSEMBLY

3J2-81800-60-00

Unavailable

2

STATOR ASSEMBLY

(1J7-81810-60-00)

Unavailable

3

. BOLT

371-81826-20-00

Unavailable

4

PLATE

(371-81845-20-00)

Unavailable

5

. GASKET

371-81844-20-00

Unavailable

6

. WASHER KIT

371-81809-20-00

Unavailable

7

.. O-RING

371-81847-20-00

Unavailable

8

. BRUSH HOLDER ASSEMBLY

371-81840-20-00

Unavailable

9

.. SPRING, BRUSH

371-81813-20-00

Unavailable

10

BRUSH 1

371-81811-20-00

Unavailable

11

BRUSH 2

371-81812-20-00

Unavailable

12

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

13

WASHER, SPRING

92990-03100-00

$8.49

14

GEAR, STARTING MTR

(3J3-15511-00-00)

Unavailable

15

CIRCLIP(10Y)

99009-12400-00

$3.59

16

O-RING

1J7-81847-60-00

Unavailable

17

. ARMATURE ASSEMBLY

3J2-81850-60-00

Unavailable

18

BOLT,SOCKET

91314-08025-00

Unavailable
