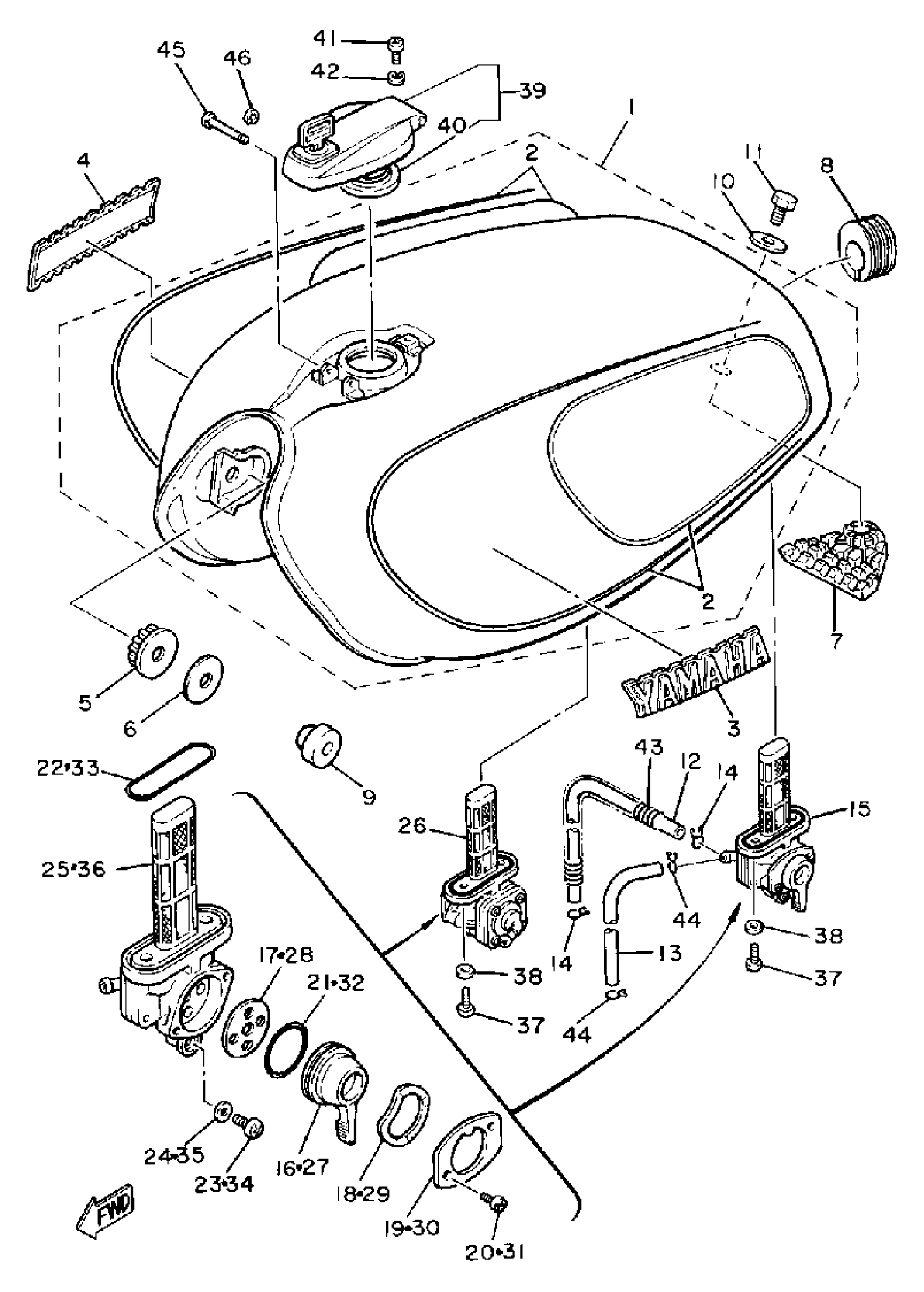

Yamaha XS850H (XS850) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(1J7-24110-00-X6)

Unavailable

2

GRAPHIC SET

(4R3-24240-00-00)

Unavailable

3

EMBLEM 1

5G2-24161-00-00

Unavailable

4

EMBLEM 2

5G2-24162-00-00

Unavailable

5

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

6

WASHER, PLATE

90201-13791-00

Unavailable

7

DAMPER, TANK LOCATING 2

1J7-24182-01-00

$34.99

8

DAMPER, LOCATING 3

3J3-24183-00-00

Unavailable

9

STOPPER

1M3-27114-00-00

$8.99

10

WASHER

90209-08008-00

$7.49

11

BOLT(62E)

97013-08012-00

Unavailable

12

HOSE (L450)

90445-10144-00

$7.49

13

HOSE (L770)

90445-090G9-00

$33.99

14

CLIP

90467-090A2-00

$4.41

15

FUEL COCK ASSEMBLY 1

2G2-24500-05-00

Unavailable

16

LEVER, COCK

(2G2-24524-00-00)

Unavailable

17

VALVE

16G-24523-00-00

Unavailable

18

. WASHER, WAVE

16G-24518-00-00

Unavailable

19

PLATE, LVR FITTING

(2G2-24525-00-00)

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

O-RING

2G2-24534-00-00

Unavailable

22

O-RING

2G2-24512-00-00

Unavailable

23

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

24

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

25

NET, FILTER 1

3Y1-24514-00-00

Unavailable

26

FUEL COCK ASY 2

2G2-24510-05-00

Unavailable

27

LEVER, COCK

(2G2-24524-10-00)

Unavailable

28

VALVE

16G-24523-00-00

Unavailable

29

. WASHER, WAVE

16G-24518-00-00

Unavailable

30

. PLATE, LVR FITTING

2G2-24525-10-00

Unavailable

31

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

32

O-RING

2G2-24534-00-00

Unavailable

33

O-RING

2G2-24512-00-00

Unavailable

34

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

35

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

36

NET, FILTER 1

3Y1-24514-00-00

Unavailable

37

SCREW 366241430000

90149-06008-00

Unavailable

38

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

39

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

40

GASKET, CAP 1

(584-24641-00-00)

Unavailable

41

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

42

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

43

SPRING, COMPRESSION (1J7)

90504-06030-00

Unavailable

44

CLIP 101235600

90467-08003-00

Unavailable

45

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

46

CIRCLIP (604)

93430-02001-00

Unavailable
