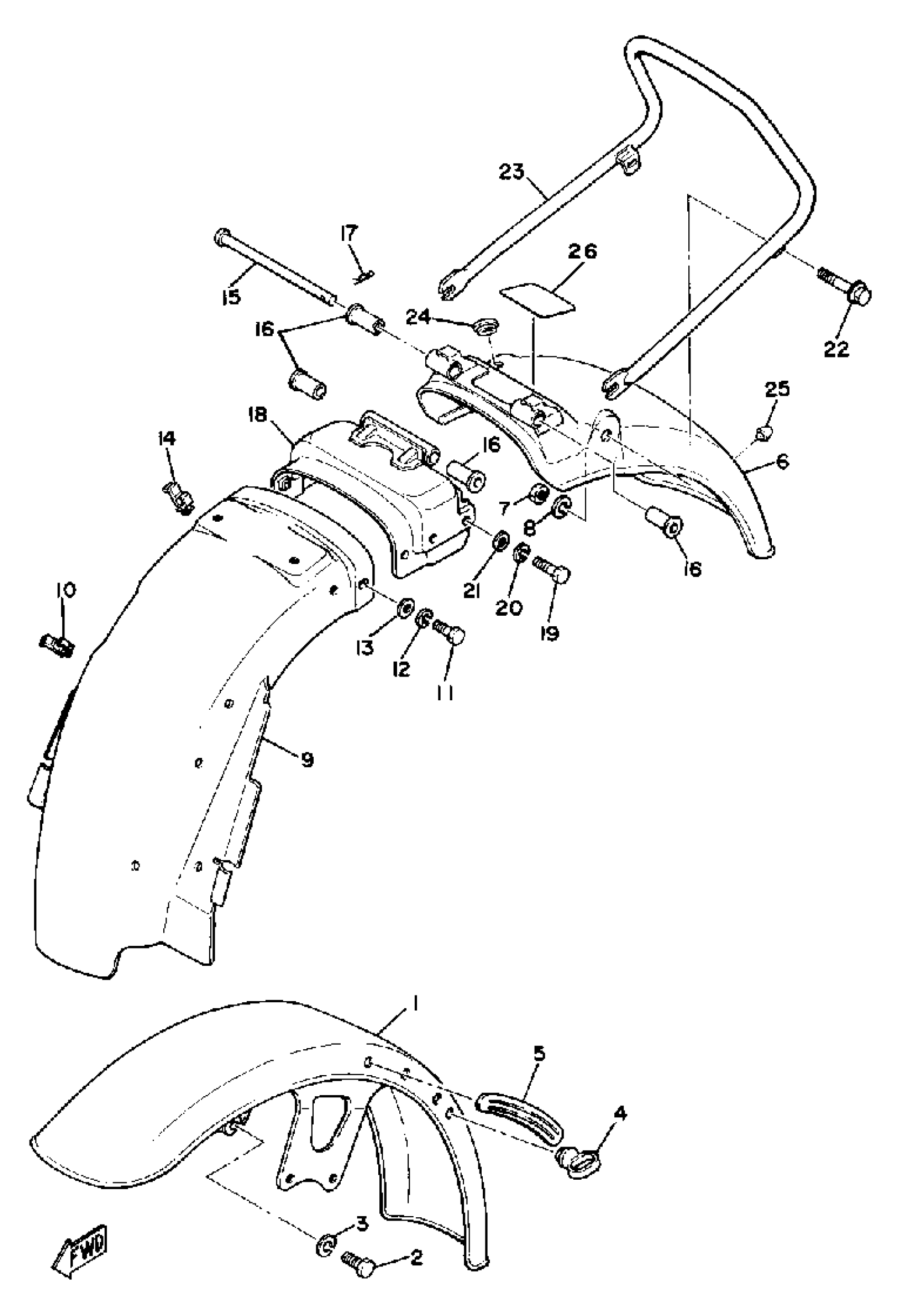

Yamaha XS850H (XS850) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1J7-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

PAD, CABLE

1J7-21517-00-00

Unavailable

6

FENDER, REAR

(3J3-21610-01-93)

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

GUARD, MUD

(3J2-21629-01-00)

Unavailable

10

CLAMP (1J7)

90464-16021-00

$12.49

11

BOLT, HEXAGON

97017-06012-00

$3.76

12

WASHER, SPRING

92907-06100-00

$4.25

13

WASHER, PLATE

90201-06M08-00

Unavailable

14

CLAMP (1J7)

90464-16025-00

$9.49

15

PIN, CLEVIS

(91701-06152-00)

Unavailable

16

COLLAR

90387-06159-00

Unavailable

17

CLIP (156-83525-00)

90468-10050-00

Unavailable

18

STAY, FENDER 1

(3J3-21613-01-00)

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

WASHER, SPRING

92907-06100-00

$4.25

21

WASHER(6TA)

92907-06600-00

Unavailable

22

BOLT, FLANGE

95814-08045-00

Unavailable

23

STAY, REAR

(4R3-21645-00-00)

Unavailable

24

GROMMET(2UJ)

90480-16501-00

Unavailable

25

DAMPER 2

2MG-21639-00-00

Unavailable

26

PLATE, SPEC

(4R2-21683-00-00)

Unavailable
